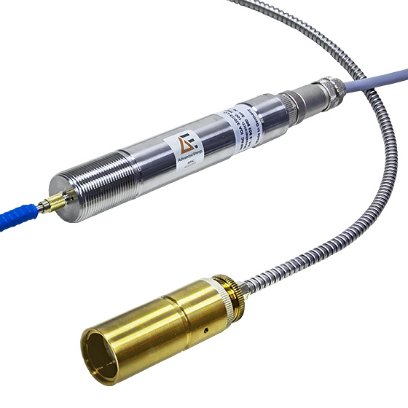

Impac IGA 320/23 Series Pyrometers

Active

Compact digital pyrometers with fixed optics and LED targeting light for non-contact temperature measurements on metals, ceramics, graphite, etc. Temperature ranges between 75 and 1800 °C.

The Impac IGA 320/23, with its short-wavelength infrared thermometers, facilitates non-contact temperature measurement of metallic surfaces, graphite, or ceramics within temperature ranges of 75 to 1800 °C. Thanks to the integrated digital signal processing, these devices ensure exceptional accuracy across vast temperature ranges. Their compact design enables seamless integration into compact production machines, while their robust construction guarantees reliability, even under challenging industrial conditions. Additionally, these instruments are equipped with an array of optics, ensuring precise measurements on smaller spot sizes.

Eigenschaften

  • Small housing dimensions for easy installation in confined spaces
  • RS485 interface for connection to a PC in long transmission networks
  • Analog output adjustable to 0 or 4 to 20 mA for connection to standard analyzing instruments
  • Internal digital signal processing for high accuracy and long temperature ranges
  • High quality optics for detection of small measuring objects
  • Built-in LED targeting light for easy alignment to the measuring object

Vorteile

  • Easily integrate into compact production machines
  • Use in harsh environments
  • Enable precise alignment via the LED targeting light
  • Store measurement values
  • Easily set up all instrument parameters

Spezifikationen

Betriebstemperaturbereich (°C): 75 and 1800°C (4 ranges in between)
Spektralbereich (µm): 2 to 2.6
Messunsicherheit (°C): From 2 °C
Optik (mm): Fixed optics
FOV (minimale Punktgröße) (mmm): Min 200:1 (0.25)
Ausrichten / Sichten: LED targeting light
Schnittstelle / Ausgang (mA): 0/4 to 20 mA
Belichtungszeit t90 (ms): 2 ms
Alle Spezifikationen Spezifikationen zusammenklappen

Lagerbestand prüfen

Modellnummer
Ausgangstyp Optik Ausrichtung Reaktionszeit Min. Temperatur (°C) Max. Temperatur (°C) Anwendungen Proben Kaufen
3 913 010 Active, Kontakt 0/4 to 20 mA / RS485 fixed LED Target Light 2 75 550 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 020 Active, Kontakt 0/4 to 20 mA / RS485 fixed LED Target Light 2 75 550 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 030 Active, Kontakt 0/4 to 20 mA / RS485 fixed LED Target Light 2 100 700 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 040 Active, Kontakt 0/4 to 20 mA / RS485 fixed LED Target Light 2 100 700 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 050 Active, Kontakt 0/4 to 20 mA / RS485 fixed LED Target Light 2 150 1200 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 060 Active, Kontakt 0/4 to 20 mA / RS485 fixed LED Target Light 2 150 1200 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 070 Active, Kontakt 0/4 to 20 mA / RS485 fixed LED Target Light 2 200 1800 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 080 Active, Kontakt 0/4 to 20 mA / RS485 fixed LED Target Light 2 200 1800 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 110 Active, Kontakt 0/4 to 20 mA / RS232 fixed LED Target Light 2 75 550 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 120 Active, Kontakt 0/4 to 20 mA / RS232 fixed LED Target Light 2 75 550 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 130 Active, Kontakt 0/4 to 20 mA / RS232 fixed LED Target Light 2 100 700 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 140 Active, Kontakt 0/4 to 20 mA / RS232 fixed LED Target Light 2 100 700 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 150 Active, Kontakt 0/4 to 20 mA / RS232 fixed LED Target Light 2 150 1200 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 160 Active, Kontakt 0/4 to 20 mA / RS232 fixed LED Target Light 2 150 1200 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 170 Active, Kontakt 0/4 to 20 mA / RS232 fixed LED Target Light 2 200 1800 Metal / Ceramics / Graphite Kontakt Kaufen
3 913 180 Active, Kontakt 0/4 to 20 mA / RS232 fixed LED Target Light 2 200 1800 Metal / Ceramics / Graphite Kontakt Kaufen

Zubehör

Impac Other Electrical

Other Electrical Accessories Compatible With Impac Pyrometers

Impac DA 4000

Digital LED Display With 2-Wire Supply Voltage

Impac Mechanical Accessories

Other Mechanical Accessories Compatible With Impac Pyrometers

Impac MultiTempLogger

Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software

Impac Power Supplies

Impac Pyrometer DC and AC Power Supply Units

Impac PI 6000 Controller

Extremely Fast, Digital, and Programmable PID Controller

Impac DA 6000-N

LED digital display with RS232 or RS485 interface for digital pyrometers

Impac DA 6000

Digital LED Display With 2-Wire Supply Voltage

Vergleichen Sie

Model Impac IGA 320/23 Series Impac IGA 6/23 Series Impac IGA 140/23 Series Impac 600 Series
Spektralbereich (µm) 2 to 2.6 2 to 2.6 2.0 to 2.6 0.7 and 14 (5 ranges in between)
Messunsicherheit (°C) From 2 °C From 0.3% oR + 2 °C From 2 °C From 0.5% oR or 0.8 °C
Optik (mm) Fixed optics Focusable optics Focusable optics Fixed optics
FOV (minimale Punktgröße) (mmm) Min 200:1 (0.25) Min 350:1 (0.6) Min 340:1 (0.5) Min. 70:1
Ausrichten / Sichten LED targeting light Built-in laser aiming light, through-lens sighting, or color TV camera Laser targeting or through lens sighting None
Schnittstelle / Ausgang (mA) 0/4 to 20 mA 0/4 to 20 mA 0/4 to 20 mA 0/4 to 20 mA
Belichtungszeit t90 (ms) 2 ms 0.5 ms <1.5 ms Multiple specifications. Please refer to Datasheet.
Anzeige LED, 4 digit matrix, 5 mm high temperature signal or measuring distance Illuminated LC display for temperature indication or parameter settings Color LCD, 262,000 colors (optional)
