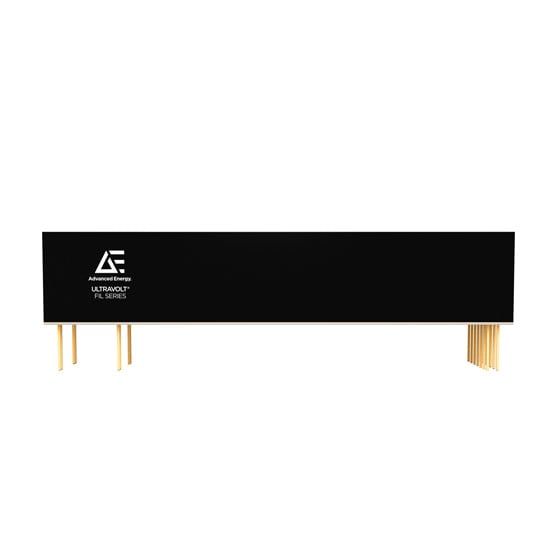

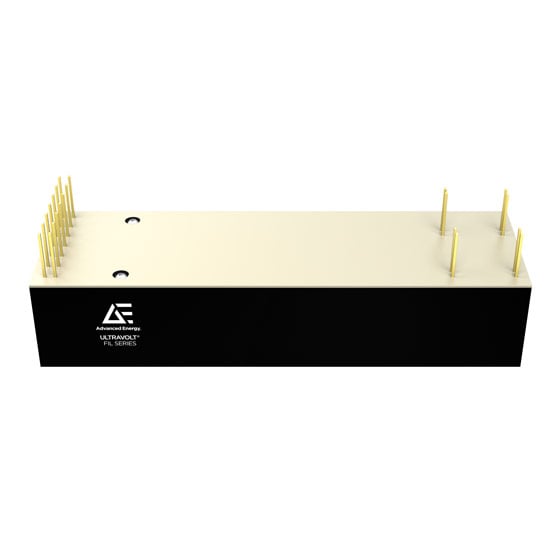

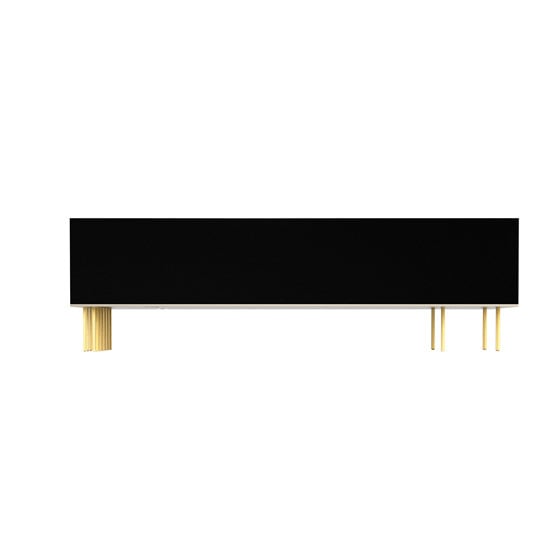

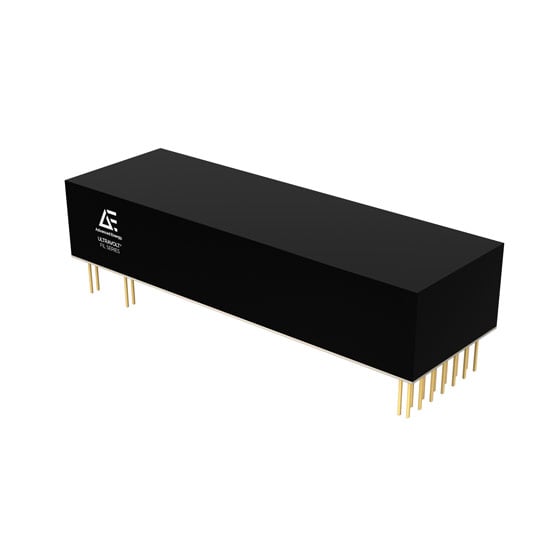

FIL Series

Active

Precision, Single-Output, Fixed-Range Filament Supply

Lagerbestand prüfen Datenblatt
The FIL series enables you to properly operate the filament, maximize its performance, and extend filament life. These modules deliver up to 15 W of power from a 24 VDC input. Programmable voltage and current controls, as well as current and voltage mode indicators, equip you with excellent linearity and control accuracy.

Eigenschaften

  • Units feature surface-mount technology and encapsulation techniques
  • Maximum output current capability down to 0 V
  • Capable of providing 0 to 5 VDC and 0 to 3 A
  • Current and voltage mode indicators
  • Units are available with several options

Vorteile

  • Enable high reliability at a low cost
  • Maximize filament performance and extend filament life
  • Adjust voltage and current to maximize performance
  • Pair units together
  • Use in various beam application

Spezifikationen

Ausgangsleistung (W): 15
Länge (Zoll): 4.7
Breite (Zoll): 1.5
Höhe (Zoll): 0.9
Montage Typ: Surface Mount
Minimaler Ausgangsstrom (A): 0
Maximaler Ausgangsstrom (A): 3
Ausgangsspannungsbereich (V): 0 to 5
Alle Spezifikationen Spezifikationen zusammenklappen

Lagerbestand prüfen

Modellnummer
 Kontrolle Typ Maximale Ausgangsleistung (W) Maximale Ausgangsspannung (V) Temperatur-Koeffizient Ausgangstyp Proben Kaufen
FIL-5V-3A Aktiv, Vorrätig Analog 15 0.005 15 Floating Filament Anfrage Kaufen

Technische Dokumentation

Titel Typ
UltraVolt FIL Series Data Sheet (376 KB) Datenblatt
FIL Series Drawing (177 KB) Zeichnung
FIL Series STEP File (2 MB) Zeichnung
