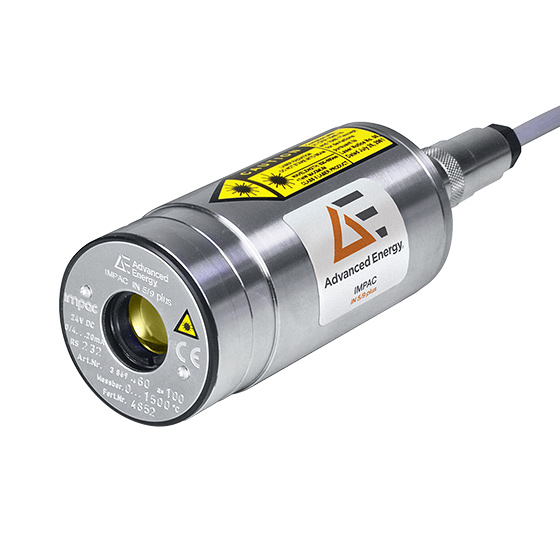

Impac IN 5/9 Series Pyrometers
Digital Pyrometer for Non-Contact Temperature Measurement of Sapphire and Sapphire Wafers between 0 and 1500 °C.
Eigenschaften
- High accuracy via output digital linearization
- Analog output 0 or 4 to 20 mA
- Digital interface RS232
- Laser target light
- Adjustable exposure time
- Compact design
Vorteile
- Adjust exposure time
- Remotely configure temperature subrange and pyrometer parameters
- Use laser target light for precise alignment
- Utilize different optics for various applications
- Store data on your computer via a digital interface
Spezifikationen
| Betriebstemperaturbereich (°C): | 0 to 1500 |
|---|---|
| Spektralbereich (µm): | 8 to 9.7 |
| Messunsicherheit (°C): | 0.6% oR or 3 °C |
| Optik (mm): | Fixed optics |
| FOV (minimale Punktgröße) (mmm): | 60:1 (1.7) |
| Ausrichten / Sichten: | Laser targeting |
| Schnittstelle / Ausgang (mA): | 0/4 to 20 mA |
| Belichtungszeit t90 (ms): | 180 ms |
Technische Dokumentation
Zubehör
Impac InfraWin Software
Pyrometer Measurement and Evaluation Software
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac MultiTempLogger
Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Impac PI 6000 Controller
Extremely Fast, Digital, and Programmable PID Controller
Impac DA 6000-N
LED digital display with RS232 or RS485 interface for digital pyrometers
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
