artesyn™.
ORv3 Shelf
Active
15 kW (N + 1) and 9 kW (N + N)

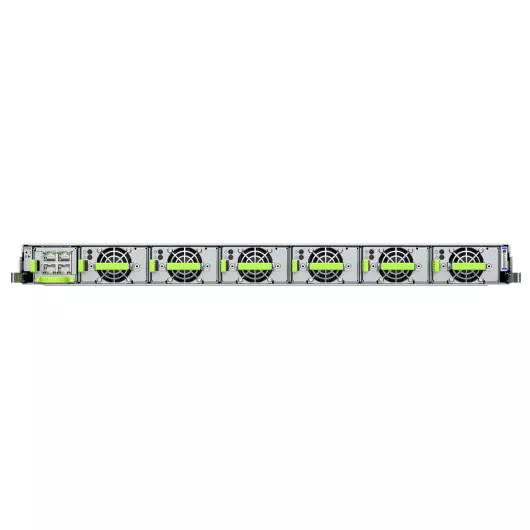

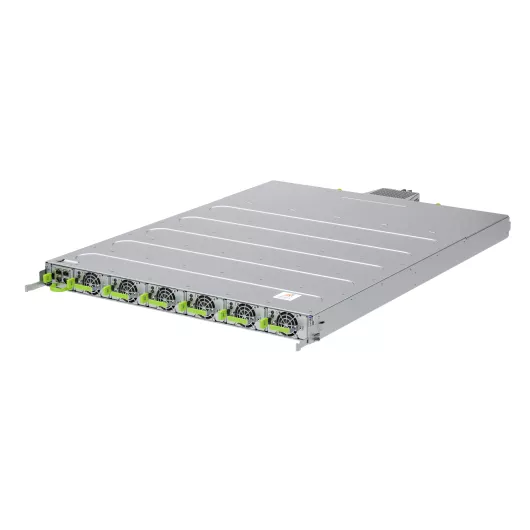

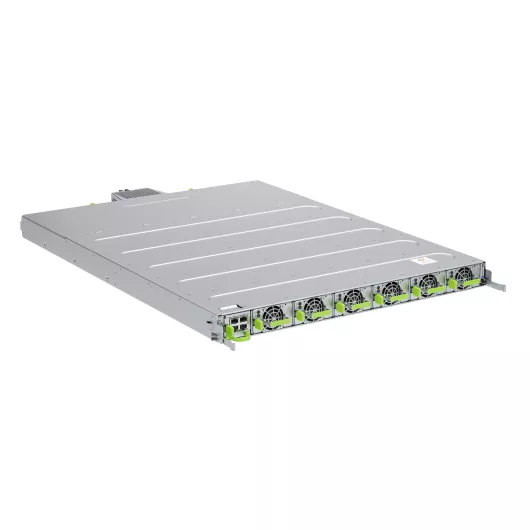

Advanced Energy’s Artesyn ORv3 1OU, OCP compliant shelf is available in either single or dual AC input options. It converts incoming 3 phase AC supply voltage to 50 VDC with a total output power capability of 18 kW. It accommodates six 3 kW hot-swappable single phase PSU modules. The Power Shelf utilizes a universal 7 pin input connector(s) which can be configured as star, delta or single phase. It operates from common data center 3-phase voltages from 480/277 to 347/200 VAC, 50/60Hz. An additional slot is included for a hot-pluggable Power Management Controller for monitoring and control over Ethernet (DMTF Redfish® compatible) management networks. One or more power shelves are typically used in OCP 21 inch racks for compute and storage applications, including AI/ML applications which require reliable power and optional battery backup.
Eigenschaften
- 15 kW at 50 V with N + 1 redundancy or 9 kW at 50 V with N + N redundancy (dual feed shelf)
- Houses 6 x 3000 W power modules and a removable shelf controller
- Accepts 3 types of input configurations (3P Dela 4 W, 3P Wye 5 W, 3x of 1P)
Vorteile
- Highly accurate droop + active current sharing
- Very high efficiency
Spezifikationen
| Ausgangsleistung (W): | 18000 |
|---|---|
| Länge (Zoll): | 28.287 |
| Breite (Zoll): | 21.142 |
| Höhe (Zoll): | 1.811 |
| Montage Typ: | Shelf |
| Minimaler Ausgangsstrom (A): | 300 |
| Maximaler Ausgangsstrom (A): | 300 |
| Minimale Ausgangsleistung (W): | 18000 |
