artesyn™.
IHP
Active

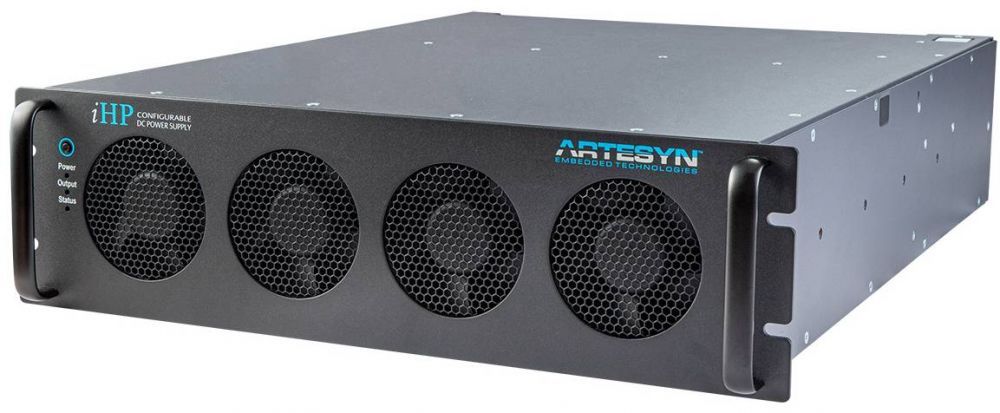

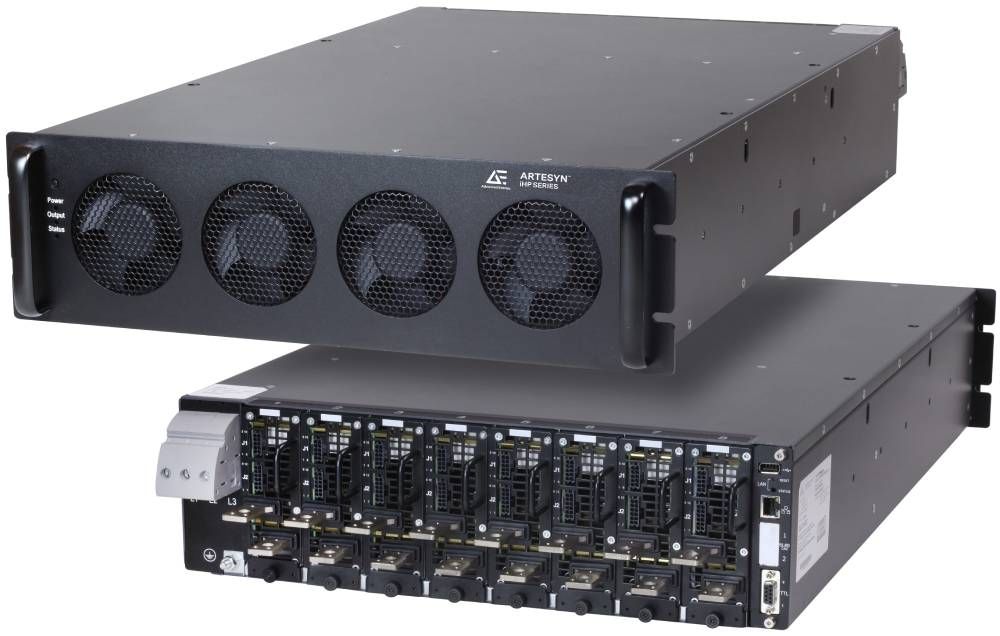

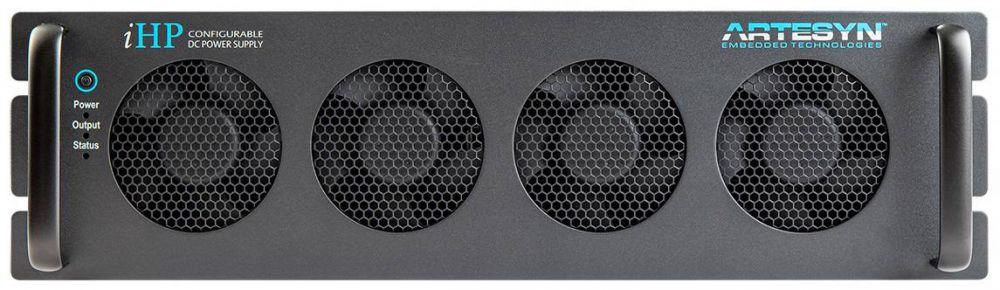

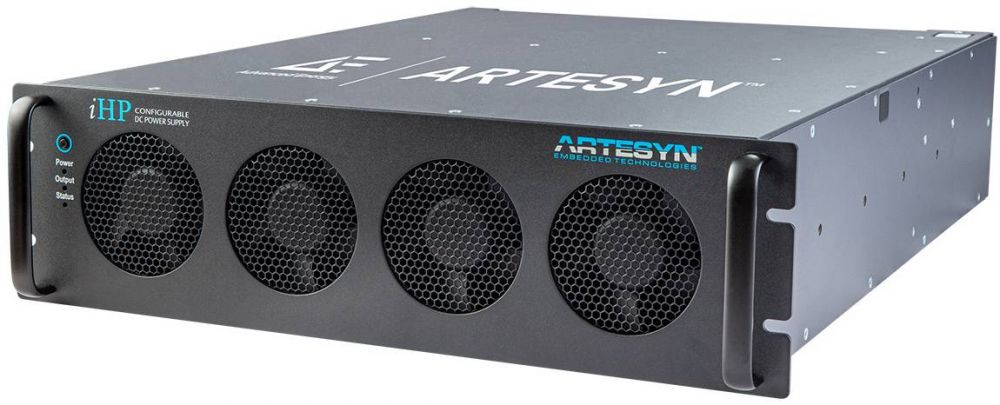

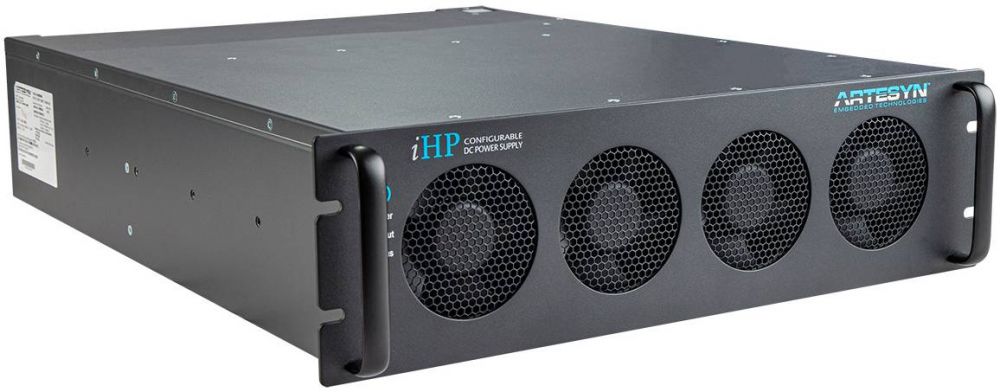

Precision High Power System

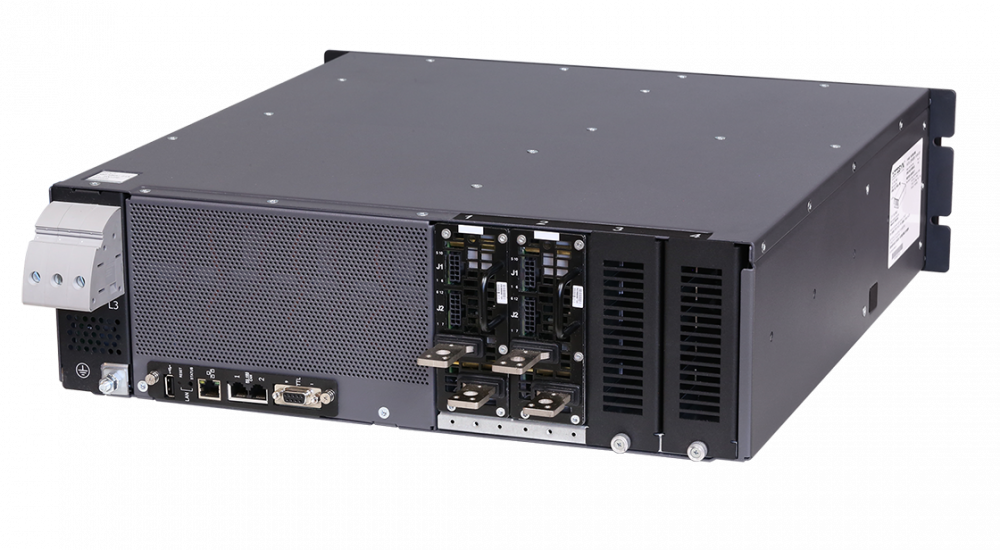

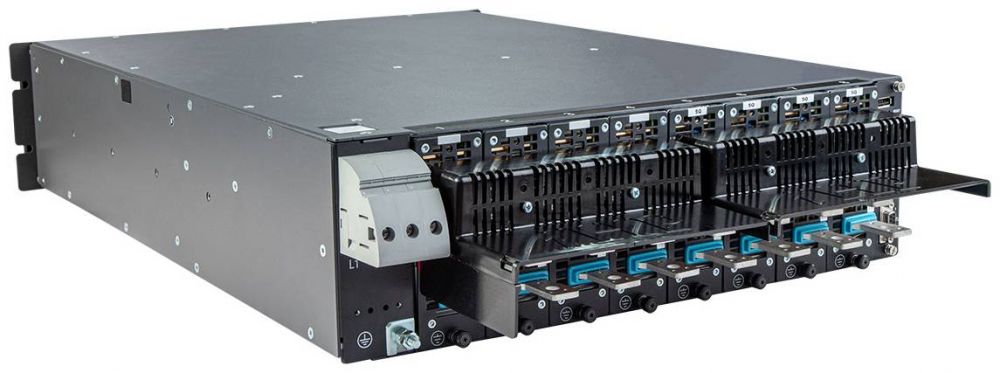

Providing up to 24 kW in 3 kW increments, the iHP configurable precision power system offers accuracy, resolution, and stability as either a programmable voltage or current source for a wide range of medical, industrial, lighting/horticulture, and semiconductor applications. The iHP can be configured for up to eight outputs using a variety of plug-in modules to address a wide range of voltages and currents. The power supply has medical safety and industrial safety (SEMI F47) approvals.
The iHP offers either an analog or a digital interface supporting standard protocols, while a GUI eases configuration and user-dashboard creation. For horticulture, a detailed scheduling and control software is available. For non-medical applications, a smaller lighter rack is available.
The iHP offers either an analog or a digital interface supporting standard protocols, while a GUI eases configuration and user-dashboard creation. For horticulture, a detailed scheduling and control software is available. For non-medical applications, a smaller lighter rack is available.
Eigenschaften
- Versatile input configurable to:
- Low line 180-264 Vac single phase and 3-phase
- High line 342-528 Vac 3-phase
- Medical safety approved – NO ISOLATION XFMR NEEDED
- Flexible control interfaces
- Air cooled
Spezifikationen
| Ausgangsleistung (W): | 24000 |
|---|---|
| Eingangsspannung (V): | 180 to 660 |
| Betriebstemperatur (°C): | 0 to +50 |
| Länge (Zoll): | 27.8 |
| Breite (Zoll): | 17.6 |
| Höhe (Zoll): | 5.22 |
| Maximaler Ausgangsstrom (A): | 1600 |
| Ausgangsspannungsbereich (V): | 0.6 to 1000 |
Einführung in ConfigPro
Der revolutionäre Online-Stromkonfigurator von Advanced Energy
Mit über 3 Millionen konfigurierbaren Stromversorgungskombinationen optimiert dieser Stromlösungsalgorithmus die Kosten und führt Sie zur idealen Lösung für die konfigurierbaren Stromversorgungsfamilien MP, IMP, IVS und MICROMP (UMP).
Los geht's
Technische Dokumentation
Product Information Documents
Safety & Compliance Certificates
Guides & Manuals
Engineering Resources
Insights & Studies
Technische Videos
iHP Group digital voltage source setup
Aug. 1, 2017
Designed for a wide range of medical and industrial applications, Artesyn’s iHP configurable intelligent power system provides accuracy, resolution and stability as either a programmable voltage or current source. It provides up to 24 kW in 3 kW increments and can be configured for up to 8 outputs using a wide variety of plug-in modules that address a large range of voltages and currents. The modules can be connected in series or parallel, and Group is defined accordingly via GUI. User can just send commands to Group replacing individual module control.
