DS1600SPE Series
Active
1600 W Front End AC-DC Power Supplies

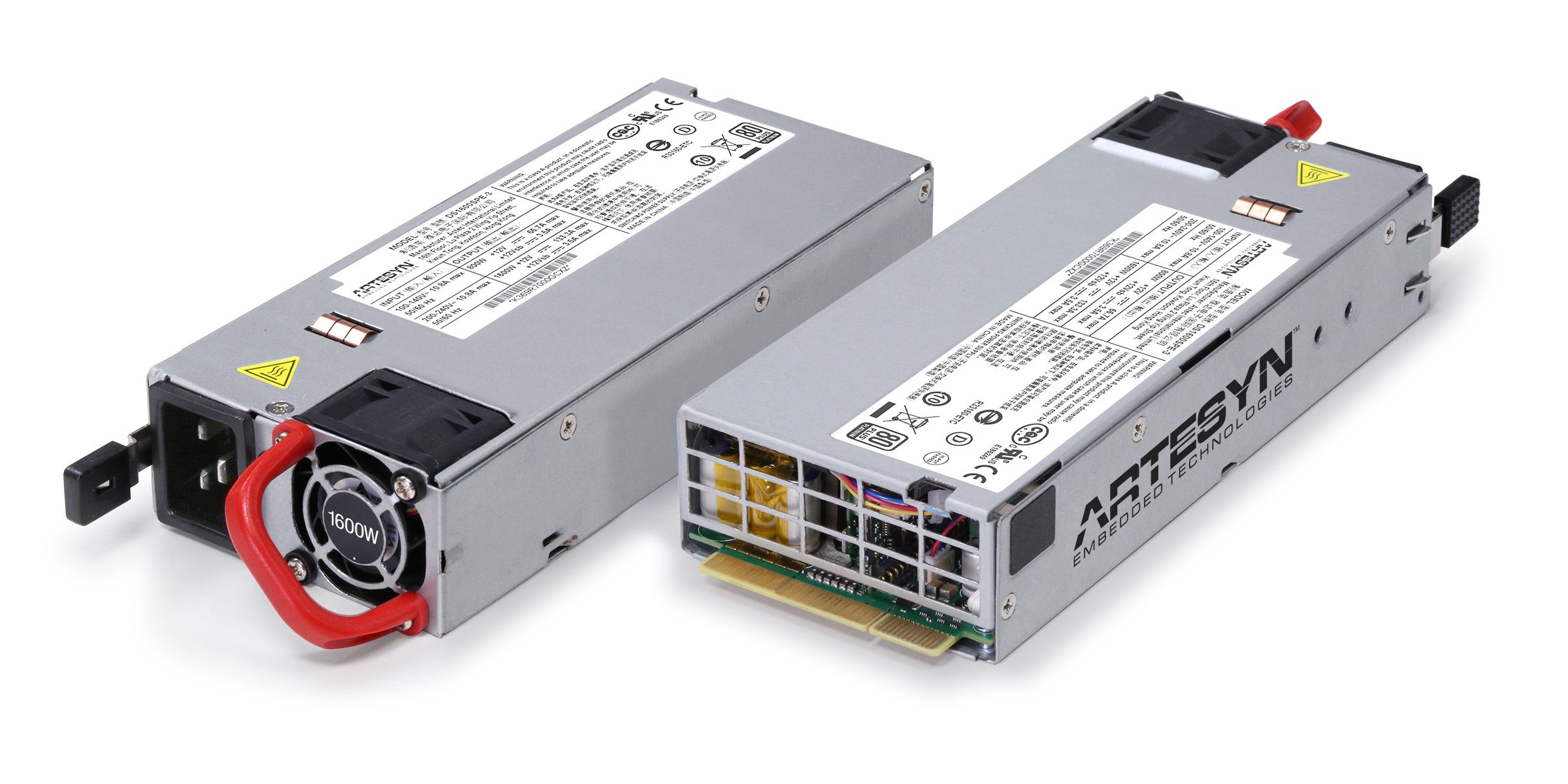

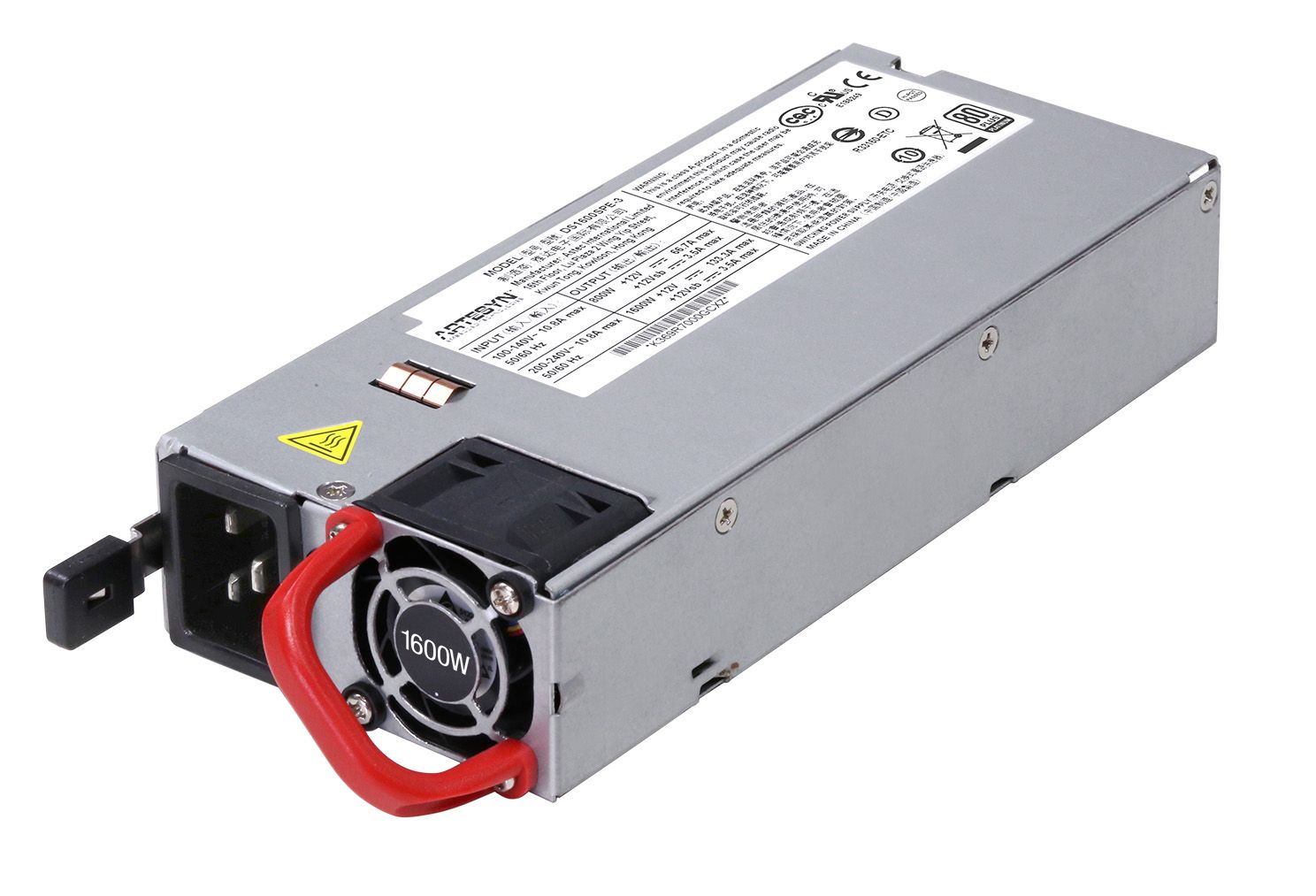

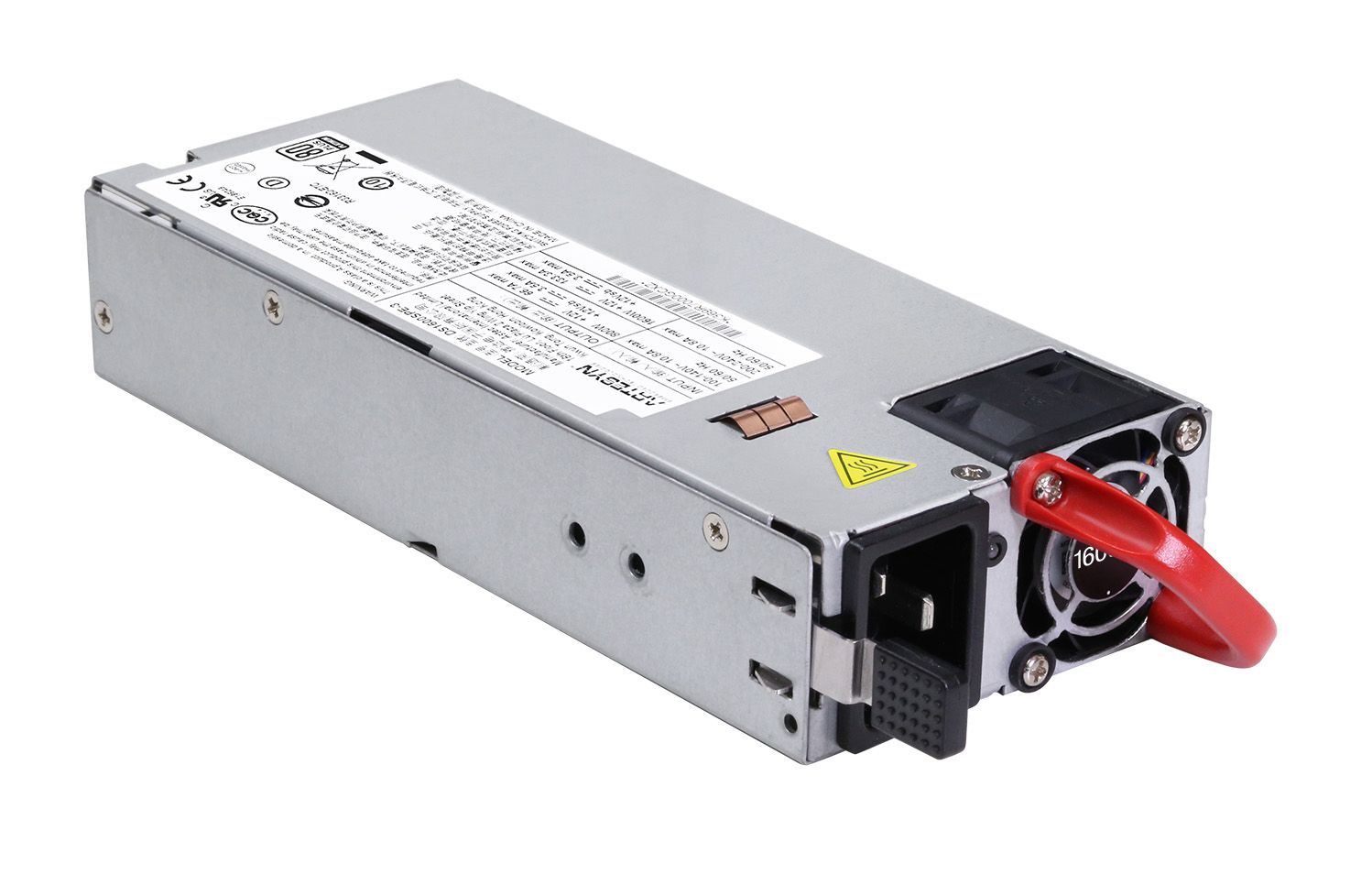

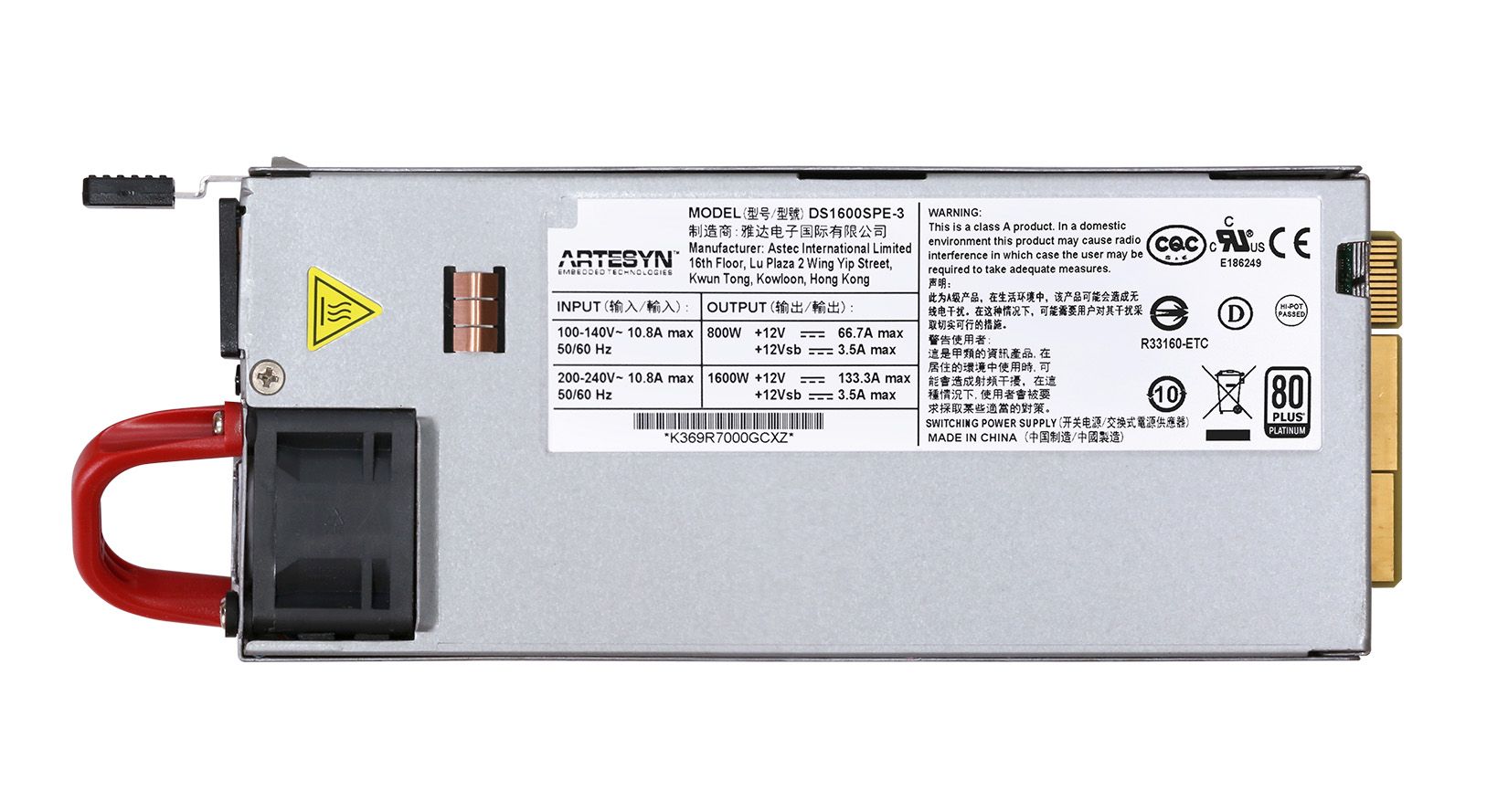

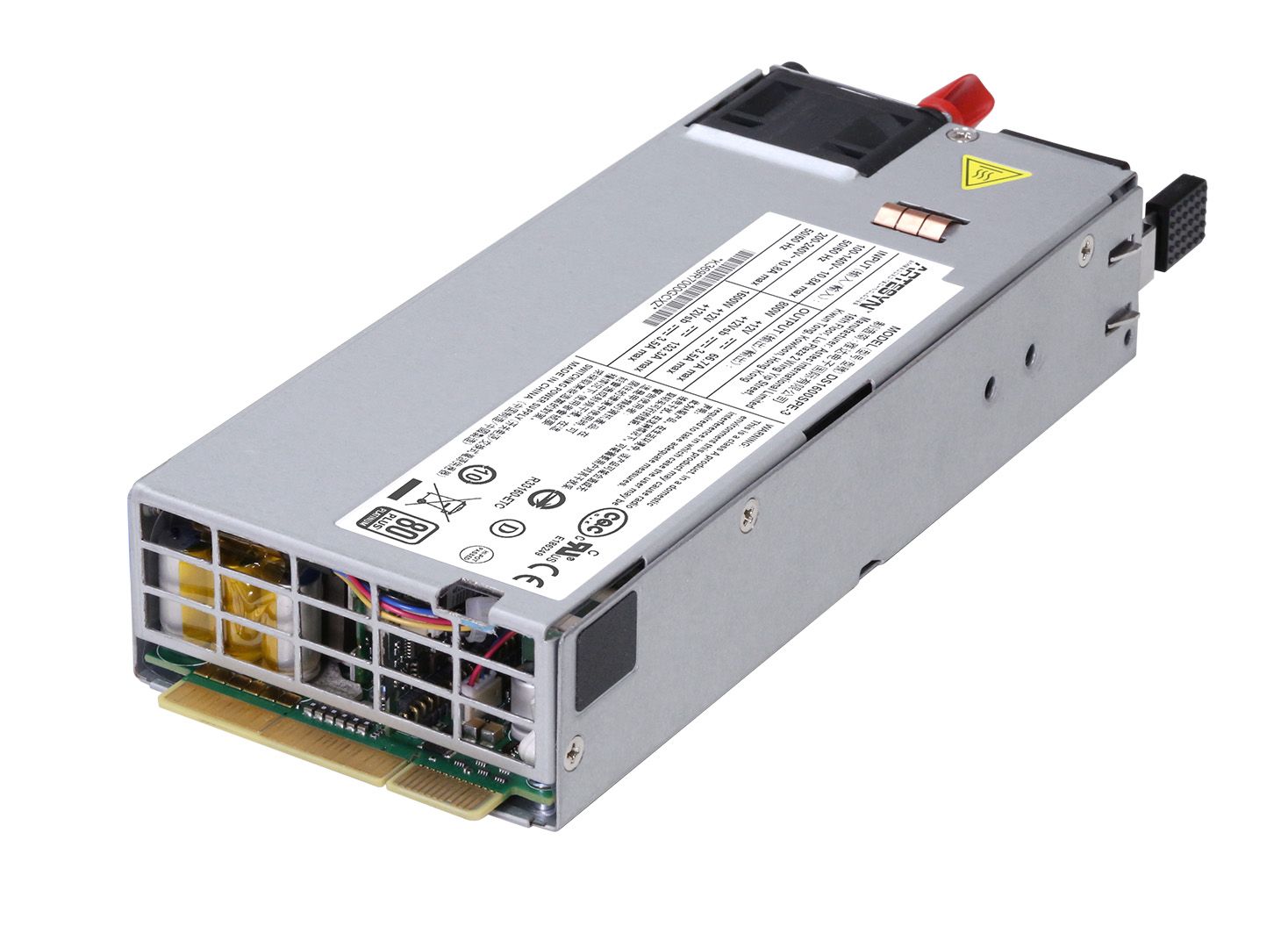

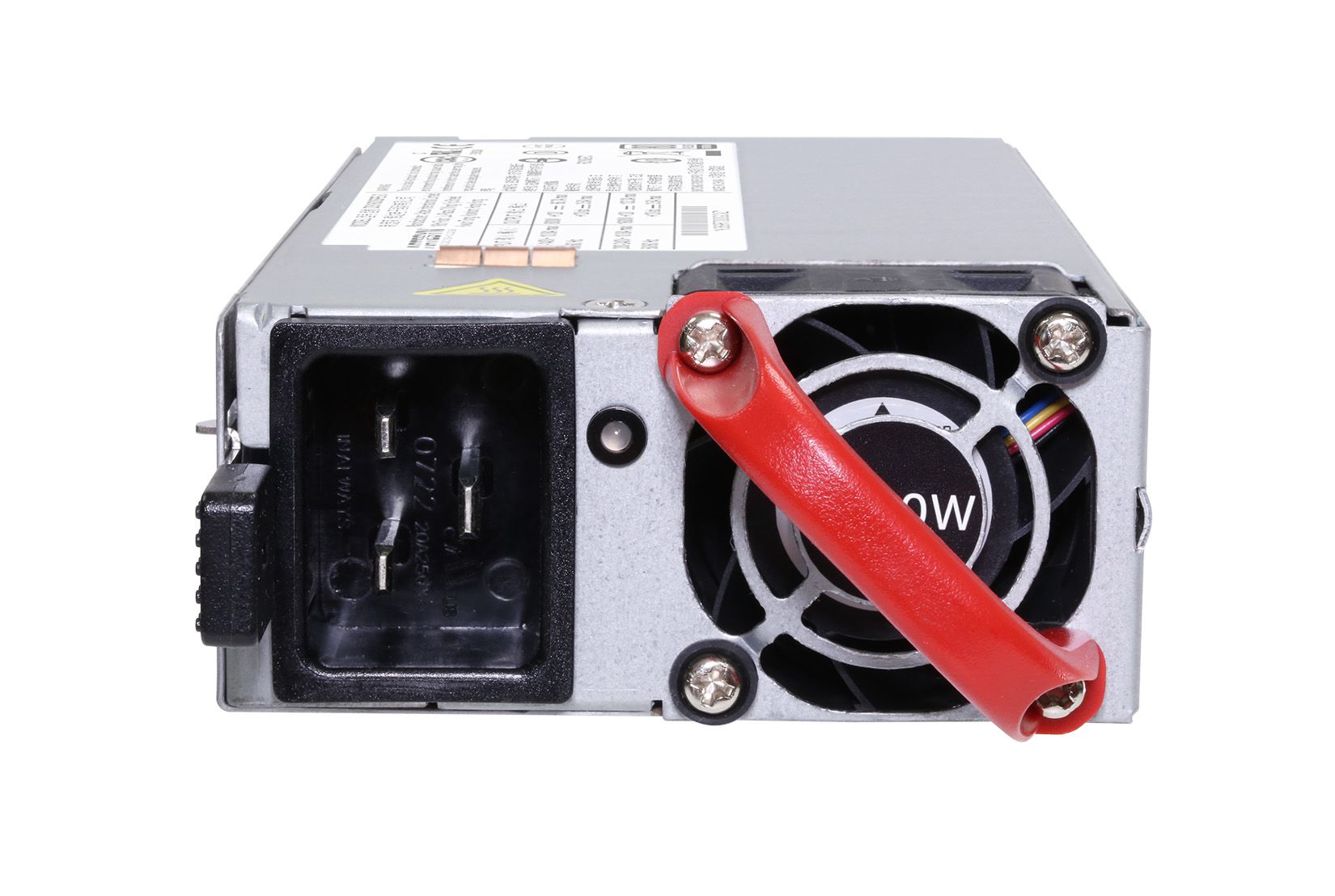

The DS1600SPE is an ultra-high density power supply providing 35 W per cubic inch. This 1600-W power supply is housed in 1U high rack-mounting enclosures measuring just 3.4 x 7.7 inches (86.3 x 196.5 mm). The latest power-switching technology and high-density component packaging techniques enable a significantly shorter form factor than similarly-rated earlier-generation power supplies, freeing up valuable system space. The DS1600SPE is fully digital and compatible with our universal PMBus®, allowing control via an integral I2C interface using the PMBus communications protocol. Each power supply generates a main payload output of 12 VDC for feeding downstream DC-DC converters in systems using distributed power architectures, together with a 12 VDC standby output rated at 3.5 A for power management circuitry.
Eigenschaften
- 12.0 V housekeeping
- 1600W output power
- EN61000 Immunity
- High efficiency (94% @ 230 VAC) 50% load
- Input Range 90-140 VAC
- Input Range 180-264 VAC
- Input Frequency 47 - 63 Hz
- Efficiency 94% peak
- Hold-up Time 10 ms
- Power Factor >0.98, typical
- Load Sharing Active load sharing within 6% at full load
- Output Ripple 120 mVp-p
- Output Power Hi line12V/133.3A and 12VSB/3.5A, 1600W continuous
- Output Power Lo line12V/66.67A and 12VSB/3.5A, 800W continuous
Vorteile
- EMI Class A
- High accuracy reporting functions
- Internal OR'ing
- Low fan noise feauter at standby mode
- N+N Redundant
- Variable speed smart fan
- Protection OVP, OCP, Short Circuit, OTP
- Power Good Active High
- Fault Active Low
- Remote On/Off Active Low
Spezifikationen
| Ausgangsleistung (W): | 1600 |
|---|---|
| Länge (Zoll): | 7.736 |
| Breite (Zoll): | 3.4 |
| Höhe (Zoll): | 1.574 |
| Montage Typ: | Rack-mount |
| Minimaler Ausgangsstrom (A): | 6 |
| Maximaler Ausgangsstrom (A): | 133.3 |
| Ausgangsspannungsbereich (V): | 11.4V to 12.6V |
Technische Dokumentation
Technische Videos
DS Short Series AC-DC Power Supplies part 1
Mai 2, 2017
The latest Artesyn DS series AC-DC power supplies in the short form factor are designed to provide a scalable input power conversion solution for computing, storage and networking equipment that uses
Artesyn DS Short Series power supplies generate a main payload output of 12 Vdc for feeding downstream dc-dc converters in systems using distributed power architectures, together with a 12 Vdc standby output for power management circuitry.
The range is housed in an industry-standard 1U high by 86mm wide form factor with individual power ratings from 500 to 2,000 watts and a roadmap for higher power models.
Many of the models in this range are available with AC or DC input options, which means you can specify the same power supply for deployment in environments from enterprises, traditional data centers, -48Vdc data centers or telecom central offices.
The DC input option can also be used to power redundant equipment powered from battery backups.
With a power density up to 50 W/in3 and efficiency ranging from 90 to 94% peak, you can be confident that you are getting a best-in-class power conversion solution whichever model in the range you select.
