artesyn™.

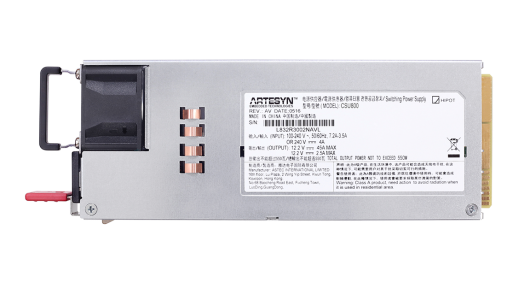

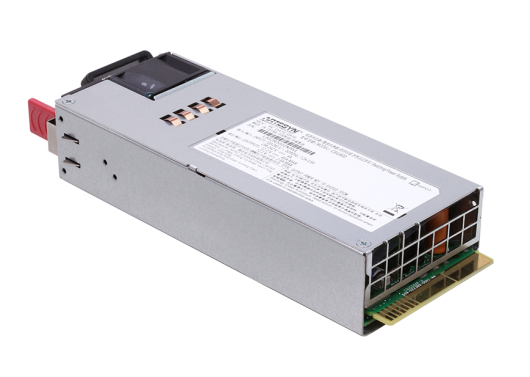

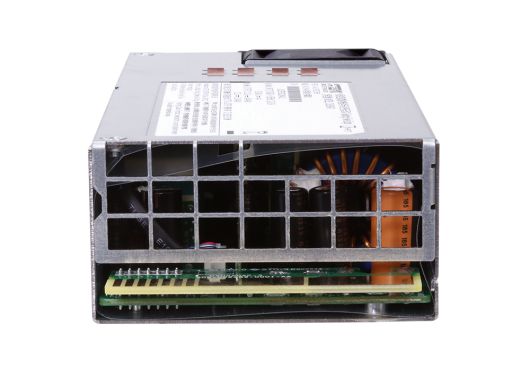

CSU1800AP Series
Active
1800 W CRPS-Type Power Supply
The CSU1800AP power supply is housed in a 1U high rack-mount enclosure measuring just 2.89 x 7.28 inches (73.5 x 185.0 mm). This form factor is significantly narrower and shorter than that of similarly rated earlier generation power supplies — freeing up valuable system space — and is achieved by use of the latest power switching technology and high-density component packaging techniques. This form factor conforms to the standard market's Common Redundant Power Supplies. The CSU1800AP power supply is fully digital and compatible with Advanced Energy's universal PMBus® graphical user interface, allowing control via an integral I2C interface using the industry-standard PMBus communications protocol. The main 12 VDC output delivers up to 3.5 A while the 12 VDC standby output delivers up to 147.5 A.
Eigenschaften
- 12.0 V housekeeping
- 1800W output power
- EN61000 Immunity
- High efficiency (94% @ 230 VAC) 50% load
- Input Range 90-264 VAC
- Input Frequency 47 - 63 Hz
- Hold-up Time 11 ms
- Power Factor >0.98 at 50% load
- Input Range 165-320 VDC
- Output Power 1800W continuous
- Output Ripple 120 mVp-p
- Load Sharing Active load sharing with 5.0% at full load
Vorteile
- EMI Class A
- Hotswap
- Internal OR'ing
- Low iTHD
- N+N redundant
- Variable speed smart fan
- Efficiency Platinum level
- Remote On/Off Active Low
- Protection OVP, OCP, Short Circuit, OTP
- Power Good Active High
- Alert Active Low
Spezifikationen
| Ausgangsleistung (W): | 1800 |
|---|---|
| Länge (Zoll): | 7.28 |
| Breite (Zoll): | 2.89 |
| Höhe (Zoll): | 1.57 |
| Montage Typ: | Rack-mount |
| Minimaler Ausgangsstrom (A): | 0 |
| Maximaler Ausgangsstrom (A): | 147.5 |
| Ausgangsspannungsbereich (V): | 11.4V to 12.8V |
