Thermistor Temperature Probes

Active

Thermistor Sensor Temperature Probes

Our thermistor temperature probes use either wire (9X002PHNxx), immersion (9X603PHNxx), penetration (9X604PHNxx), surface (9X605PHNxx), air/gas (9X606PHNxx) measure types. With an operating temperature of -40°C to 150°C, an accuracy of ± 0.2°C from 0 to 70°C, and a time constant as low as 3 seconds, these probes are ideal for biological and geophysical testing as well as measurements on semi-soft materials (e.g., meat and cheeses), surfaces, and air streams.

Eigenschaften

  • Range: -40 °C to +150 °C
  • Time constant 6 second
  • Accuracy:± 0.2 °C from 0 to 70 °C
  • 5′ wire thermistor probe with stainless-steel encapsulated sensor

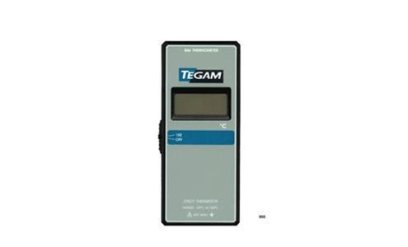

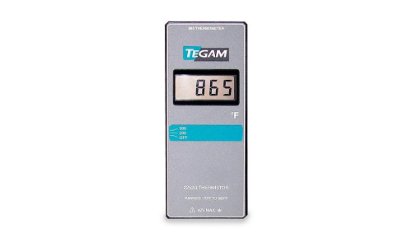

  • Used with Models 850, 865, 866
  • Made in USA

Vorteile

  • Coiled cable expands from 1 to 5 feet for added flexibility

Spezifikationen

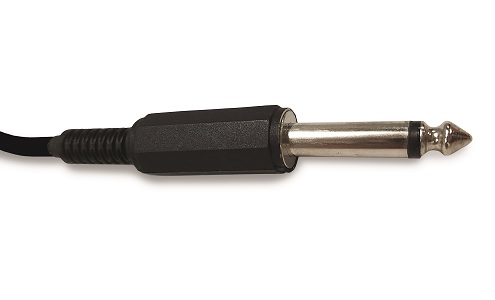

Connector Type: Phono
Handle Type: Plastic, T-handle
Max. Temp (⁰C): 150
Min. Temp (⁰C): -40
Probe Tip Style: Air/Gas, Immersion, Penetration, Surface, Wire
Sensor Type: Thermistor

Lagerbestand prüfen

Modellnummer
Cable Length (in) Handle Type Max. Temperatur (°C) Min. Temperatur (°C) Probe Tip Style Sheath Length (in) Kaufen

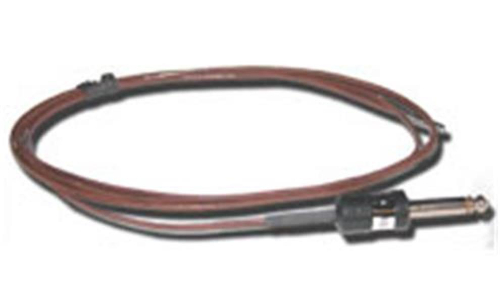

9X002PHN36 Active, Kontakt
Temperature Probe, Thermistor, Wire, 1/4" Phono Connector, 36"
36 NA 150 -40 Wire NA Kaufen
9X104PHN18 Active, Kontakt
Temperature Probe, Thermistor, T Handle, Penetration, 1/4" Phono Connector, 18"
60 T-handle 150 -40 Penetration 18 Kaufen
9X104PHN30 Active, Kontakt
Temperature Probe, Thermistor, T Handle, Penetration, 1/4" Phono Connector, 30"
60 T-handle 150 -40 Penetration 30 Kaufen
9X104PHN36 Active, Kontakt
Temperature Probe, Thermistor, T Handle, Penetration, 1/4" Phono Connector, 36"
60 T-handle 150 -40 Penetration 36 Kaufen
9X603PHN04 Active, Kontakt
Temperature Probe, Thermistor, Immersion, 1/4" Phono Connector, 4"
60 Plastic 150 -40 Immersion 4 Kaufen
9X604PHN04 Active, Kontakt
Temperature Probe, Thermistor, Penetration, 1/4" Phono Connector, 4"
60 Plastic 150 -40 Penetration 4 Kaufen
9X604PHN18 Active, Kontakt
Temperature Probe, Thermistor, Penetration, 1/4" Phono Connector, 18"
60 Plastic 150 -40 Penetration 18 Kaufen
9X604PHN30 Active, Kontakt
Temperature Probe, Thermistor, Penetration, 1/4" Phono Connector, 30"
60 Plastic 150 -40 Penetration 30 Kaufen
9X605PHN04 Active, Kontakt
Temperature Probe, Thermistor, Surface, 1/4" Phono Connector, 4"
60 Plastic 150 -40 Surface 4 Kaufen
9X606PHN04 Active, Kontakt
Temperature Probe, Thermistor, Air/Gas, 1/4" Phono Connector, 4"
60 Plastic 150 -40 Air/Gas 4 Kaufen
