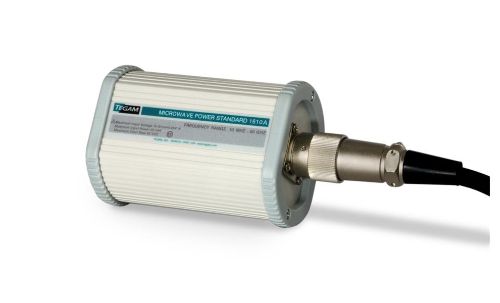

1510A Low Power RF Standard - Thermistor

Active

Microwave Terminating Power Standard, 10 MHz to 50 GHz Transport Case Included

Advanced Energy's 1510A Temperature Stabilized Coaxial RF Power Reference (Terminating) Thermistor Standard enables the precise measurement of microwave power in the 10 MHz to 50 GHz frequency range. The 1510A standards are highly accurate and stable with time and temperature. They are designed to accurately measure RF power and calibrate RF transfer standards. The calibration of these standards is traceable to the International System of Units (SI) through the National Institute of Standards and Technology (NIST) or other recognized National Metrology Institutes.These RF Power Standards work with TEGAM’s 1830A RF Power Meter, as well as our legacy DC Self-Balancing Bridges, 1806 and 1806B. System configurations employing instruments of this accuracy typically achieve calibration factor transfer results normally found only in primary standards laboratories. Transport case is included.


Eigenschaften

  • Calibrate RF transfer standards and measure RF power from 10 MHz to 50 GHz
  • 0.01 to 10 mW (-20 to +10 dBm) usable range
  • PMX & SYSIIB Compatible
  • Rack mount option available
  • 3 year warranty
  • Assembled in USA

Vorteile

  • Designed to match the freqeuncy range of AE-TEGAM 2500 series transfer standards for compatible calibration
  • Can be sent directly to NMI for highest level calibrations
  • Industry leading warranty

Spezifikationen

Calibration Factor Accuracy (typical): +/-(1.2 to 4.2)% from 10 MHz to 50 GHz
Connector Type: 2.4mm male
Frequency Range: 10 MHz to 50 GHz
Power Range: 0.01 to 10 mW (-20 to +10 dBm)
Reflection Magnitude (typical): 0.01 to 0.34 from 10 MHz to 50 GHz
Required Power Meter: Thermistor
RF Impedance (nominal): 50 Ohms
Sensor Type: Thermistor
Alle Spezifikationen Spezifikationen zusammenklappen

Lagerbestand prüfen

Modellnummer
Calibration Factor Accuracy (typical) Connector Type Frequency Range Power Range Required Power Meter Kaufen
1510A Active, Kontakt
Microwave Terminating Power Standard, 10 MHz – 50 GHz Transport Case Included
+/-(1.2 to 4.2)% from 10 MHz to 50 GHz 2.4mm male 10 MHz to 50 GHz 0.01 to 10 mW (-20 to +10 dBm) Thermistor Kaufen

Accessories Stock Check

Adapter, 2.4 mm coax (M) to 2.92 mm (F) with Data
Adapter, 2.4 mm coax (M) to 3.5 mm (F) with Data
Adapter, 2.4 mm coax (M) to 2.92 mm (F) with Data
Torque Wrench, 8 mm, 8 in-lbs, for 3.5 mm, 2.92 mm and 2.4 mm
Attenuator, 30 dB, 2.4 mm Coax (M) to (F) with Data
Cable, Voltage Bias and Heater, 1830A to 15XX/25XX, 15"

Heater cable (4-pin mini to 4-pin mini)
For use with the following combinations:
• 1806A connected to F1130A/B and F1135A/B
• 1830A connected to F1130A/B and F1135A/B

Cable, Voltage Bias and Heater, 1830A to 15XX/25XX, 48"

Heater cable (4-pin mini to 4-pin mini)
For use with the following combinations:
• 1806A connected to F1130A/B and F1135A/B
• 1830A connected to F1130A/B and F1135A/B

Cable, 1806A to 15XXA/25XXA
Cable, 1806 to 15XXA/25XXA
Torque Wrench, 8 mm, 8 in-lbs, for 3.5 mm, 2.92 mm and 2.4 mm
Transport Case for 15XXA RF Power Standard

Transport case for 1505A and 1510A power standard
Note: 1510-910 is a standard item with a new purchase
of the 1505A or 1510A

Transport Case for 1830A, F113X & 25XXA

Transport case for 1830A, F113X, 2505A, 2510A, M1130
and M1135
