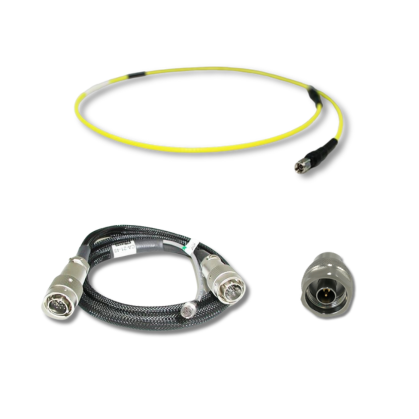

Power Sensor Calibration Accessories

Active
Accessory components for PMX series. These inlucde Attenuators, Adapters, Cables, Torque Wrenches, and Transport Cases

Accessories Stock Check

Torque Wrench, 8mm, 5 in-lbs, SMA to 1585-1000
Torque Wrench, 3/4", 12 in-lbs, N (Standard Nut)
Torque Wrench, 13/16", 14 in-lbs, (Special 13/16" Nut on M1130A, M1125, M1110)
Attenuator, 20 dB, Type N Coax (M) to (F), with Data
Attenuator, 20 dB, 3.5 mm Coax (M) to (F), with Data
Attenuator, 30dB, Type N Coax (M) to (F), with Data
Attenuator, 30dB, 3.5 mm Coax (M) to (F), with Data
Adapter, DC to 18 GHz, N-type (M) to 3.5 mm (F), with Data
Adapter, DC to 18 GHz, N-type (F) to 3.5 mm (M), with Data
Transport Case for 15XXA RF Power Standard

Transport case for 1505A and 1510A power standard
Note: 1510-910 is a standard item with a new purchase
of the 1505A or 1510A

Adapter, 2.4 mm coax (M) to 2.92 mm (F) with Data
Adapter, 2.4 mm coax (M) to 3.5 mm (F) with Data
Test Cable with SMA Straight Plug Connectors, DC to 18 GHz, 3'
Low Loss RF Cable, 26.5 GHz, 3.5 mm (M) Connectors, 3'

Low loss RF cable, 26.5 GHz, 3.5 mm male connectors
• Insertion loss max 3.0 dB

Low Loss RF Cable, 40 GHz, 2.92 mm (M) Connectors, 3'

Low loss RF cable, 40.0 GHz, 2.92mm male connectors
• Insertion loss max 3.6 dB

Single Unit Rack Mount Kit, 1830A, F113XB & 25XXA Series
Dual Unit Rack Mount Kit, 1830A, F113XB & 25XXA Series
Transport Case for 1830A, F113X & 25XXA

Transport case for 1830A, F113X, 2505A, 2510A, M1130
and M1135

Torque Wrench, 8 mm, 8 in-lbs, for 3.5 mm, 2.92 mm and 2.4 mm
Adapter, 2.4 mm coax (M) to 2.92 mm (F) with Data
Torque Wrench, 8 mm, 8 in-lbs, for 3.5 mm, 2.92 mm and 2.4 mm
Attenuator, 30 dB, 2.4 mm Coax (M) to (F) with Data
RF Mount Temperature Controller
RF Mount Transport Case for 1830A, F113X, 2505A, 2510A, M1130, and M1135
Cable, 1830A and 1806A to Large Heater, 48"

Heater cable (4-pin mini to 4-pin large)
For use with the following combinations:
• 1806A connected to M1130A and M1135A
• 1830A connected to M1130A and M1135A

Cable, 1830A and 1806A to Small Heater, 15"
Cable, 1830A and 1806A to Small Heater, 48"
Cable, USB A/A 2M
Calibration Cable for the 1830A with Spade Lugs, 24"
Calibration Cable for the 1830A with Spade Lugs, 48"
Cable, Voltage Bias and Heater, 1830A to 15XX/25XX, 15"

Heater cable (4-pin mini to 4-pin mini)
For use with the following combinations:
• 1806A connected to F1130A/B and F1135A/B
• 1830A connected to F1130A/B and F1135A/B

Cable, Voltage Bias and Heater, 1830A to 15XX/25XX, 48"

Heater cable (4-pin mini to 4-pin mini)
For use with the following combinations:
• 1806A connected to F1130A/B and F1135A/B
• 1830A connected to F1130A/B and F1135A/B

Low Loss RF Cable, 50GHz, 2.4 mm (M) Connectors, 12", for PMX
Low Loss RF Cable, 50GHz, 2.4 mm (M) Connectors, 36", for PMX
Cable, 1805 and 1806 to Large Heater, 48"
Cable, 1806A to 15XXA/25XXA
Cable, 1806 to 15XXA/25XXA
Cable, Sensor, 1830A to 8478B and 478A Sensor, 48"
Cable, 1830A to F/M Mounts, 15"
Cable, 1830A to F/M Mounts, 48"
Cable, 1830A to Unterminated Ends, 48"
Kelvin Klips for 252, 253, 254, 6'
Precision Power Amplifier, High Voltage, Single Channel
