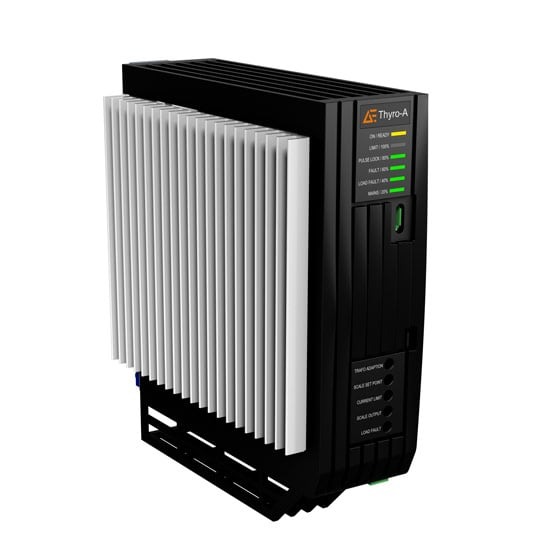

Thyro-A Power Controller

Active

Thyro-A Series 3

Lagerbestand prüfen Datenblatt
Precisely and reliably control power in an expansive range of applications. The Thyro-A® series showcases a highly flexible interface for the load and power-supply side. For standard processes, make adjustments on the unit itself to ease handling and speed commissioning. You can also use a remote digital connection. All measurement, status, and set point communication may be processed via PLC or the process computer. Stand-alone operations or direct combination with process controls are possible.
  • Digital Thyristor Power Controller Supports Load Currents Up to 1500 A and Voltages Up to 500 V
  • Compact footprint with various applications for precise and reliable control of power and loads
  • Low total harmonic distortion (THD) for improved power utilization
  • Fully digital communications with optional fieldbus communication options

Eigenschaften

  • Save space and simplify installation with a compact unit footprint and a DIN-rail mountable design (up to 60 A system rating)
  • Precisely regulate power, including load management, for optimal control and energy consumption
  • Easily integrate with existing control systems; customize faults, alarms, status, limits, and set points
  • Increase process efficiency; optimize load control with five control types and three operating modes

Vorteile

  • Scalable PLC/PAC integration for closed-loop control; optional system interface connects up to 8 power controllers to BasicBus Module (Profibus DPV1, CANopen, PROFINET, Modbus TCP/IP, EtherNet/IP, EtherCAT)
  • Securely separate control and power units and optimize load control; use up to five control methods and three operating modes
  • Mains-load optimization using optional dASM with oprional BasicBus Module; support digital and dynamic mains-load optimization (up to eight Thyro-A SCR power controllers)
  • Seamless integration to Rockwell Automation® Studio5000® automation software via add-on profiles (AOPs): simplify setup and commissioning using predefined tags
  • 1-, 2-, or 3-phase versions (2-phase version for 3-phase load without deploying neutral conductor)

Spezifikationen

Frequenz (Hz): 47 to 63
Sicherungen: Integrated semiconductor fuse
Betriebsart: TAKT, VAR, QTM, and with optional BasicBusModule
Nennströme (A): Up to 1500 A
Nennspannungen (V): Up to 500 V
Sicherheitszertifizierungen: CE, UL 508 (8 – 350A), Canadian C22.2 No. 14
Kommunikationsschnittstelle: Micro-USB connector for Thyro-Tool Pro PC software connection
BasicBusModule with Anybus Digital Interface Card

Lagerbestand prüfen

Modellnummer
 Ungefähres Gewicht (kg) Produktgröße (mm) Erzwungene Belüftung Leistungsverlust Einheit Bewertung Stromstärke (A) Spannung (V) Phase Steuerungstypen Proben Kaufen
Thyro-A 1A 230-100 H3 Aktiv, Vorrätig 1.9 75 x 203 x 193 No 105 23 100 230 1 Ueff / U2eff Anfrage Kaufen
Thyro-A 1A 230-100 HRL3 Active, Kontakt 1.9 75 x 203 x 193 No 105 23 100 230 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 230-100 HRLP3 Active, Kontakt 1.9 75 x 203 x 193 No 105 23 100 230 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 230-130 H3 Active, Kontakt 4 125 x 320 x 241 No 150 30 130 230 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 230-130 HRL3 Active, Kontakt 4 125 x 320 x 241 No 150 30 130 230 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 230-130 HRLP3 Active, Kontakt 4 125 x 320 x 241 No 150 30 130 230 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 230-16 H3 Active, Kontakt 0.7 45 x 136 x 129 No 30 3.7 16 230 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 230-16 HRL3 Aktiv, Vorrätig 0.7 45 x 136 x 129 No 30 3.7 16 230 1 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 1A 230-16 HRLP3 Active, Kontakt 0.7 45 x 136 x 129 No 30 3.7 16 230 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 230-170 H3 Active, Kontakt 4 125 x 320 x 241 No 210 39 170 230 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 230-170 HRL3 Active, Kontakt 4 125 x 320 x 241 No 210 39 170 230 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 230-170 HRLP3 Active, Kontakt 4 125 x 320 x 241 No 210 39 170 230 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 230-2 HRL3 Active, Kontakt 0.7 45 x 136 x 129 No 2 230 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 230-2 HRLP3 Active, Kontakt 0.7 45 x 136 x 129 No 2 230 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 230-280 HF3 Active, Kontakt 5 125 x 370 x 241 Yes 330 64 280 230 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 230-280 HFRL3 Active, Kontakt 5 125 x 370 x 241 Yes 330 64 280 230 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 230-280 HFRLP3 Active, Kontakt 5 125 x 370 x 241 Yes 330 64 280 230 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 230-30 H3 Active, Kontakt 0.7 45 x 136 x 129 No 47 6.9 30 230 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 230-30 HRL3 Aktiv, Vorrätig 0.7 45 x 136 x 129 No 47 6.9 30 230 1 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 1A 230-30 HRLP3 Active, Kontakt 0.7 45 x 136 x 129 No 47 6.9 30 230 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 230-350 HF3 Active, Kontakt 8.4 125 x 400 x 261 Yes 390 80 350 230 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 230-350 HFRL3 Active, Kontakt 8.4 125 x 400 x 261 Yes 390 80 350 230 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 230-350 HFRLP3 Active, Kontakt 8.4 125 x 400 x 261 Yes 390 80 350 230 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 230-4 HRL3 Active, Kontakt 0.7 45 x 136 x 129 No 4 230 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 230-4 HRLP3 Active, Kontakt 0.7 45 x 136 x 129 No 4 230 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 230-45 H3 Active, Kontakt 1.7 52 x 203 x 184 No 52 10 45 230 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 230-45 HRL3 Active, Kontakt 1.7 52 x 203 x 184 No 52 10 45 230 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 230-45 HRLP3 Active, Kontakt 1.7 52 x 203 x 184 No 52 10 45 230 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 230-60 H3 Active, Kontakt 1.7 52 x 203 x 184 No 80 14 60 230 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 230-60 HRL3 Active, Kontakt 1.7 52 x 203 x 184 No 80 14 60 230 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 230-60 HRLP3 Active, Kontakt 1.7 52 x 203 x 184 No 80 14 60 230 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 230-8 HRL3 Aktiv, Vorrätig 0.7 45 x 136 x 129 No 9 3.2 8 230 1 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 1A 230-8 HRLP3 Active, Kontakt 0.7 45 x 136 x 129 No 9 3.2 8 230 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-100 H3 Active, Kontakt 1.9 75 x 203 x 193 No 105 40 100 400 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 400-100 HRL3 Active, Kontakt 1.9 75 x 203 x 193 No 105 40 100 400 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 400-100 HRLP3 Active, Kontakt 1.9 75 x 203 x 193 No 105 40 100 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-1000 HFRL3 Active, Kontakt 35 239 x 729 x 516 Yes 1396 400 1000 400 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 400-1000 HFRLP3 Active, Kontakt 35 239 x 729 x 516 Yes 1396 400 1000 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-130 H3 Active, Kontakt 4 125 x 320 x 241 No 150 52 130 400 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 400-130 HRL3 Active, Kontakt 4 125 x 320 x 241 No 150 52 130 400 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 400-130 HRLP3 Active, Kontakt 4 125 x 320 x 241 No 150 52 130 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-1500 HFRL3 Active, Kontakt 35 239 x 729 x 516 Yes 1855 600 1500 400 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 400-1500 HFRLP3 Active, Kontakt 35 239 x 729 x 516 Yes 1855 600 1500 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-16 H3 Active, Kontakt 0.7 45 x 136 x 129 No 30 6.4 16 400 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 400-16 HRL3 Aktiv, Vorrätig 0.7 45 x 136 x 129 No 30 6.4 16 400 1 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 1A 400-16 HRLP3 Active, Kontakt 0.7 45 x 136 x 129 No 30 6.4 16 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-170 H3 Active, Kontakt 4 125 x 320 x 241 No 210 68 170 400 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 400-170 HRL3 Active, Kontakt 4 125 x 320 x 241 No 210 68 170 400 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 400-170 HRLP3 Active, Kontakt 4 125 x 320 x 241 No 210 68 170 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-280 HF3 Active, Kontakt 5 125 x 370 x 241 Yes 330 112 280 400 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 400-280 HFRL3 Active, Kontakt 5 125 x 370 x 241 Yes 330 112 280 400 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 400-280 HFRLP3 Active, Kontakt 5 125 x 370 x 241 Yes 330 112 280 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-30 H3 Active, Kontakt 0.7 45 x 136 x 129 No 47 12 30 400 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 400-30 HRL3 Active, Kontakt 0.7 45 x 136 x 129 No 47 12 30 400 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 400-30 HRLP3 Active, Kontakt 0.7 45 x 136 x 129 No 47 12 30 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-350 HF3 Active, Kontakt 8.4 125 x 400 x 261 Yes 390 140 350 400 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 400-350 HFRL3 Active, Kontakt 8.4 125 x 400 x 261 Yes 390 140 350 400 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 400-350 HFRLP3 Active, Kontakt 8.4 125 x 400 x 261 Yes 390 140 350 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-45 H3 Active, Kontakt 1.7 52 x 203 x 184 No 52 18 45 400 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 400-45 HRL3 Aktiv, Vorrätig 1.7 52 x 203 x 184 No 52 18 45 400 1 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 1A 400-45 HRLP3 Active, Kontakt 1.7 52 x 203 x 184 No 52 18 45 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-495 HFRL3 Active, Kontakt 15 112 x 414 x 345 Yes 603 198 495 400 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 400-495 HFRLP3 Active, Kontakt 15 112 x 414 x 345 Yes 603 198 495 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-60 H3 Aktiv, Vorrätig 1.7 52 x 203 x 184 No 80 24 60 400 1 Ueff / U2eff Anfrage Kaufen
Thyro-A 1A 400-60 HRL3 Aktiv, Vorrätig 1.7 52 x 203 x 184 No 80 24 60 400 1 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 1A 400-60 HRLP3 Active, Kontakt 1.7 52 x 203 x 184 No 80 24 60 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-650 HFRL3 Active, Kontakt 15 112 x 414 x 345 Yes 726 260 650 400 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 400-650 HFRLP3 Active, Kontakt 15 112 x 414 x 345 Yes 726 260 650 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 400-8 HRL3 Active, Kontakt 0.7 45 x 136 x 129 No 9 3.2 8 400 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 400-8 HRLP3 Active, Kontakt 0.7 45 x 136 x 129 No 9 3.2 8 400 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-100 H3 Active, Kontakt 1.9 75 x 203 x 193 No 105 50 100 500 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 500-100 HRL3 Active, Kontakt 1.9 75 x 203 x 193 No 105 50 100 500 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 500-100 HRLP3 Active, Kontakt 1.9 75 x 203 x 193 No 105 50 100 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-1000 HFRL3 Active, Kontakt 35 239 x 729 x 516 Yes 1396 500 1000 500 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 500-1000 HFRLP3 Active, Kontakt 35 239 x 729 x 516 Yes 1396 500 1000 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-130 H3 Active, Kontakt 4 125 x 320 x 241 No 150 65 130 500 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 500-130 HRL3 Active, Kontakt 4 125 x 320 x 241 No 150 65 130 500 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 500-130 HRLP3 Active, Kontakt 4 125 x 320 x 241 No 150 65 130 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-1400 HFRL3 Active, Kontakt 35 239 x 729 x 516 Yes 1815 700 1400 500 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 500-1400 HFRLP3 Active, Kontakt 35 239 x 729 x 516 Yes 1815 700 1400 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-16 H3 Active, Kontakt 0.7 45 x 136 x 129 No 30 8 16 500 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 500-16 HRL3 Active, Kontakt 0.7 45 x 136 x 129 No 30 8 16 500 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 500-16 HRLP3 Active, Kontakt 0.7 45 x 136 x 129 No 30 8 16 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-170 H3 Active, Kontakt 4 125 x 320 x 241 No 210 85 170 500 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 500-170 HRL3 Active, Kontakt 4 125 x 320 x 241 No 210 85 170 500 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 500-170 HRLP3 Active, Kontakt 4 125 x 320 x 241 No 210 85 170 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-280 HF3 Active, Kontakt 5 125 x 370 x 241 Yes 330 140 280 500 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 500-280 HFRL3 Active, Kontakt 5 125 x 370 x 241 Yes 330 140 280 500 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 500-280 HFRLP3 Active, Kontakt 5 125 x 370 x 241 Yes 330 140 280 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-30 H3 Active, Kontakt 0.7 45 x 136 x 129 No 47 15 30 500 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 500-30 HRL3 Active, Kontakt 0.7 45 x 136 x 129 No 47 15 30 500 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 500-30 HRLP3 Active, Kontakt 0.7 45 x 136 x 129 No 47 15 30 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-350 HF3 Active, Kontakt 8.4 125 x 400 x 261 Yes 390 175 350 500 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 500-350 HFRL3 Active, Kontakt 8.4 125 x 400 x 261 Yes 390 175 350 500 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 500-350 HFRLP3 Active, Kontakt 8.4 125 x 400 x 261 Yes 390 175 350 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-45 H3 Active, Kontakt 1.7 52 x 203 x 184 No 52 22.5 45 500 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 500-45 HRL3 Aktiv, Vorrätig 1.7 52 x 203 x 184 No 52 22.5 45 500 1 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 1A 500-45 HRLP3 Active, Kontakt 1.7 52 x 203 x 184 No 52 22.5 45 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-495 HFRL3 Active, Kontakt 15 112 x 414 x 345 Yes 603 247 495 500 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 500-495 HFRLP3 Active, Kontakt 15 112 x 414 x 345 Yes 603 247 495 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-60 H3 Active, Kontakt 1.7 52 x 203 x 184 No 80 30 60 500 1 Ueff / U2eff Kontakt Kaufen
Thyro-A 1A 500-60 HRL3 Active, Kontakt 1.7 52 x 203 x 184 No 80 30 60 500 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 500-60 HRLP3 Active, Kontakt 1.7 52 x 203 x 184 No 80 30 60 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-650 HFRL3 Active, Kontakt 15 112 x 414 x 345 Yes 726 325 650 500 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 500-650 HFRLP3 Active, Kontakt 15 112 x 414 x 345 Yes 726 325 650 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 500-8 HRL3 Active, Kontakt 0.7 45 x 136 x 129 No 9 4 8 500 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 500-8 HRLP3 Active, Kontakt 0.7 45 x 136 x 129 No 9 4 8 500 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 600-1000 HFRL3 Active, Kontakt 35 239 x 729 x 516 Yes 1396 600 1000 600 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 600-1000 HFRLP3 Active, Kontakt 35 239 x 729 x 516 Yes 1396 600 1000 600 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 600-1400 HFRL3 Active, Kontakt 35 239 x 729 x 516 Yes 1815 840 1400 600 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 600-1400 HFRLP3 Active, Kontakt 35 239 x 729 x 516 Yes 1815 840 1400 600 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 600-495 HFRL3 Active, Kontakt 15 112 x 414 x 345 Yes 603 297 495 600 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 600-495 HFRLP3 Active, Kontakt 15 112 x 414 x 345 Yes 603 297 495 600 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 1A 600-650 HFRL3 Active, Kontakt 15 112 x 414 x 345 Yes 726 390 650 600 1 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 1A 600-650 HFRLP3 Active, Kontakt 15 112 x 414 x 345 Yes 726 390 650 600 1 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 400-100 H3 Active, Kontakt 3.8 150 x 203 x 193 No 210 69 100 400 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 400-100 HRL3 Aktiv, Vorrätig 3.8 150 x 203 x 193 No 210 69 100 400 2 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 2A 400-100 HRLP3 Aktiv, Vorrätig 3.8 150 x 203 x 193 No 210 69 100 400 2 Ueff / U2eff / Ieff / I2eff / P Anfrage Kaufen
Thyro-A 2A 400-1000 HFRL3 Active, Kontakt 54 417 x 685 x 516 Yes 2811 693 1000 400 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 400-1000 HFRLP3 Active, Kontakt 54 417 x 685 x 516 Yes 2811 693 1000 400 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 400-130 H3 Active, Kontakt 8 250 x 320 x 241 No 300 90 130 400 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 400-130 HRL3 Active, Kontakt 8 250 x 320 x 241 No 300 90 130 400 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 400-130 HRLP3 Active, Kontakt 8 250 x 320 x 241 No 300 90 130 400 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 400-1500 HFRL3 Active, Kontakt 54 417 x 685 x 516 Yes 3531 1039 1500 400 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 400-1500 HFRLP3 Active, Kontakt 54 417 x 685 x 516 Yes 3531 1039 1500 400 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 400-16 H3 Active, Kontakt 1.4 89 x 136 x 129 No 60 11 16 400 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 400-16 HRL3 Active, Kontakt 1.4 89 x 136 x 129 No 60 11 16 400 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 400-16 HRLP3 Active, Kontakt 1.4 89 x 136 x 129 No 60 11 16 400 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 400-170 H3 Active, Kontakt 8 250 x 320 x 241 No 420 118 170 400 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 400-170 HRL3 Aktiv, Vorrätig 8 250 x 320 x 241 No 420 118 170 400 2 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 2A 400-170 HRLP3 Active, Kontakt 8 250 x 320 x 241 No 420 118 170 400 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 400-280 HF3 Active, Kontakt 11 250 x 393 x 241 Yes 660 194 280 400 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 400-280 HFRL3 Active, Kontakt 11 250 x 393 x 241 Yes 660 194 280 400 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 400-280 HFRLP3 Active, Kontakt 11 250 x 393 x 241 Yes 660 194 280 400 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 400-30 H3 Aktiv, Vorrätig 1.4 89 x 136 x 129 No 94 21 30 400 2 Ueff / U2eff Anfrage Kaufen
Thyro-A 2A 400-30 HRL3 Active, Kontakt 1.4 89 x 136 x 129 No 94 21 30 400 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 400-30 HRLP3 Active, Kontakt 1.4 89 x 136 x 129 No 94 21 30 400 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 400-350 HF3 Active, Kontakt 16.7 250 x 430 x 261 Yes 780 242 350 400 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 400-350 HFRL3 Active, Kontakt 16.7 250 x 430 x 261 Yes 780 242 350 400 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 400-350 HFRLP3 Active, Kontakt 16.7 250 x 430 x 261 Yes 780 242 350 400 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 400-45 H3 Aktiv, Vorrätig 3.4 104 x 203 x 184 No 96 31 45 400 2 Ueff / U2eff Anfrage Kaufen
Thyro-A 2A 400-45 HRL3 Active, Kontakt 3.4 104 x 203 x 184 No 96 31 45 400 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 400-45 HRLP3 Active, Kontakt 3.4 104 x 203 x 184 No 96 31 45 400 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 400-495 HFRL3 Active, Kontakt 22 194 x 380 x 345 Yes 1206 343 495 400 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 400-495 HFRLP3 Active, Kontakt 22 194 x 380 x 345 Yes 1206 343 495 400 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 400-60 H3 Active, Kontakt 3.4 104 x 203 x 184 No 160 42 60 400 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 400-60 HRL3 Aktiv, Vorrätig 3.4 104 x 203 x 184 No 160 42 60 400 2 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 2A 400-60 HRLP3 Active, Kontakt 3.4 104 x 203 x 184 No 160 42 60 400 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 400-650 HFRL3 Active, Kontakt 22 194 x 380 x 345 Yes 1463 450 650 400 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 400-650 HFRLP3 Active, Kontakt 22 194 x 380 x 345 Yes 1453 450 650 400 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 400-8 HRL3 Active, Kontakt 1.4 89 x 136 x 129 No 18 6 8 400 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 400-8 HRLP3 Active, Kontakt 1.4 89 x 136 x 129 No 18 6 8 400 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 500-100 H3 Active, Kontakt 3.8 150 x 203 x 193 No 210 87 100 500 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 500-100 HRL3 Active, Kontakt 3.8 150 x 203 x 193 No 210 87 100 500 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 500-100 HRLP3 Active, Kontakt 3.8 150 x 203 x 193 No 210 87 100 500 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 500-1000 HFRL3 Active, Kontakt 54 417 x 685 x 516 Yes 2811 866 1000 500 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 500-1000 HFRLP3 Active, Kontakt 54 417 x 685 x 516 Yes 2811 866 1000 500 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 500-130 H3 Active, Kontakt 8 250 x 320 x 241 No 300 112 130 500 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 500-130 HRL3 Active, Kontakt 8 250 x 320 x 241 No 300 112 130 500 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 500-130 HRLP3 Active, Kontakt 8 250 x 320 x 241 No 300 112 130 500 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 500-1400 HFRL3 Active, Kontakt 54 417 x 685 x 516 Yes 3451 1212 1400 500 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 500-1400 HFRLP3 Active, Kontakt 54 417 x 685 x 516 Yes 3451 1212 1400 500 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 500-16 H3 Active, Kontakt 1.4 89 x 136 x 129 No 60 14 16 500 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 500-16 HRL3 Active, Kontakt 1.4 89 x 136 x 129 No 60 14 16 500 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 500-16 HRLP3 Active, Kontakt 1.4 89 x 136 x 129 No 60 14 16 500 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 500-170 H3 Active, Kontakt 8 250 x 320 x 241 No 420 147 170 500 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 500-170 HRL3 Aktiv, Vorrätig 8 250 x 320 x 241 No 420 147 170 500 2 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 2A 500-170 HRLP3 Active, Kontakt 8 250 x 320 x 241 No 420 147 170 500 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 500-280 HF3 Active, Kontakt 11 250 x 393 x 241 Yes 660 242 280 500 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 500-280 HFRL3 Active, Kontakt 11 250 x 393 x 241 Yes 660 242 280 500 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 500-280 HFRLP3 Active, Kontakt 11 250 x 393 x 241 Yes 660 242 280 500 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 500-30 H3 Aktiv, Vorrätig 1.4 89 x 136 x 129 No 94 26 30 500 2 Ueff / U2eff Anfrage Kaufen
Thyro-A 2A 500-30 HRL3 Aktiv, Vorrätig 1.4 89 x 136 x 129 No 94 26 30 500 2 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 2A 500-30 HRLP3 Active, Kontakt 1.4 89 x 136 x 129 No 94 26 30 500 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 500-350 HF3 Active, Kontakt 16.7 250 x 430 x 261 Yes 780 303 350 500 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 500-350 HFRL3 Active, Kontakt 16.7 250 x 430 x 261 Yes 780 303 350 500 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 500-350 HFRLP3 Aktiv, Vorrätig 16.7 250 x 430 x 261 Yes 780 303 350 500 2 Ueff / U2eff / Ieff / I2eff / P Anfrage Kaufen
Thyro-A 2A 500-45 H3 Aktiv, Vorrätig 3.4 104 x 203 x 184 No 96 39 45 500 2 Ueff / U2eff Anfrage Kaufen
Thyro-A 2A 500-45 HRL3 Active, Kontakt 3.4 104 x 203 x 184 No 96 39 45 500 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 500-45 HRLP3 Active, Kontakt 3.4 104 x 203 x 184 No 96 39 45 500 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 500-495 HFRL3 Active, Kontakt 22 194 x 380 x 345 Yes 1206 429 495 500 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 500-495 HFRLP3 Active, Kontakt 22 194 x 380 x 345 Yes 1206 429 495 500 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 500-60 H3 Active, Kontakt 3.4 104 x 203 x 184 No 160 52 60 500 2 Ueff / U2eff Kontakt Kaufen
Thyro-A 2A 500-60 HRL3 Aktiv, Vorrätig 3.4 104 x 203 x 184 No 160 52 60 500 2 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 2A 500-60 HRLP3 Active, Kontakt 3.4 104 x 203 x 184 No 160 52 60 500 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 500-650 HFRL3 Active, Kontakt 22 194 x 380 x 345 Yes 1453 563 650 500 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 500-650 HFRLP3 Active, Kontakt 22 194 x 380 x 345 Yes 1453 563 650 500 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 500-8 HRL3 Active, Kontakt 1.4 89 x 136 x 129 No 18 7 8 500 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 500-8 HRLP3 Active, Kontakt 1.4 89 x 136 x 129 No 18 7 8 500 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 600-1000 HFRL3 Active, Kontakt 54 417 x 685 x 516 Yes 2811 1039 1000 600 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 600-1000 HFRLP3 Active, Kontakt 54 417 x 685 x 516 Yes 2811 1039 1000 600 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 600-1400 HFRL3 Active, Kontakt 54 417 x 685 x 516 Yes 3451 1454 1400 600 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 600-1400 HFRLP3 Active, Kontakt 54 417 x 685 x 516 Yes 3451 1454 1400 600 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 600-495 HFRL3 Active, Kontakt 22 194 x 380 x 345 Yes 1206 514 495 600 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 600-495 HFRLP3 Active, Kontakt 22 194 x 380 x 345 Yes 1206 514 495 600 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 2A 600-650 HFRL3 Active, Kontakt 22 194 x 380 x 345 Yes 1453 675 650 600 2 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 2A 600-650 HFRLP3 Active, Kontakt 22 194 x 380 x 345 Yes 1453 675 650 600 2 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-100 H3 Active, Kontakt 5.7 225 x 203 x 193 No 315 69 100 400 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 400-100 HRL3 Active, Kontakt 5.7 225 x 203 x 193 No 315 69 100 400 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 400-100 HRLP3 Active, Kontakt 5.7 225 x 203 x 193 No 315 69 100 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-1000 HFRL3 Active, Kontakt 74 583 x 685 x 516 Yes 4127 693 1000 400 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 400-1000 HFRLP3 Active, Kontakt 74 583 x 685 x 516 Yes 4127 693 1000 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-130 H3 Active, Kontakt 12 375 x 320 x 241 No 450 90 130 400 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 400-130 HRL3 Active, Kontakt 12 375 x 320 x 241 No 450 90 130 400 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 400-130 HRLP3 Active, Kontakt 12 375 x 320 x 241 No 450 90 130 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-1500 HFRL3 Active, Kontakt 74 583 x 685 x 516 Yes 5206 1039 1500 400 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 400-1500 HFRLP3 Active, Kontakt 74 583 x 685 x 516 Yes 5206 1039 1500 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-16 H3 Active, Kontakt 2.1 135 x 136 x 129 No 90 11 16 400 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 400-16 HRL3 Active, Kontakt 2.1 135 x 136 x 129 No 90 11 16 400 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 400-16 HRLP3 Active, Kontakt 2.1 135 x 136 x 129 No 90 11 16 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-170 H3 Active, Kontakt 12 375 x 320 x 241 No 630 118 170 400 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 400-170 HRL3 Active, Kontakt 12 375 x 320 x 241 No 630 118 170 400 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 400-170 HRLP3 Active, Kontakt 12 375 x 320 x 241 No 630 118 170 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-280 HF3 Active, Kontakt 15 375 x 393 x 241 Yes 990 194 280 400 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 400-280 HFRL3 Active, Kontakt 15 375 x 393 x 241 Yes 990 194 280 400 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 400-280 HFRLP3 Active, Kontakt 15 375 x 393 x 241 Yes 990 194 280 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-30 H3 Active, Kontakt 2.1 135 x 136 x 129 No 141 21 30 400 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 400-30 HRL3 Aktiv, Vorrätig 2.1 135 x 136 x 129 No 141 21 30 400 3 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 3A 400-30 HRLP3 Active, Kontakt 2.1 135 x 136 x 129 No 141 21 30 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-350 HF3 Active, Kontakt 25.5 375 x 430 x 261 Yes 1170 242 350 400 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 400-350 HFRL3 Active, Kontakt 25.5 375 x 430 x 261 Yes 1170 242 350 400 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 400-350 HFRLP3 Active, Kontakt 25.5 375 x 430 x 261 Yes 1170 242 350 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-45 H3 Active, Kontakt 5.1 156 x 203 x 184 No 144 31 45 400 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 400-45 HRL3 Aktiv, Vorrätig 5.1 156 x 203 x 184 No 144 31 45 400 3 Ueff / U2eff / Ieff / I2eff Anfrage Kaufen
Thyro-A 3A 400-45 HRLP3 Active, Kontakt 5.1 156 x 203 x 184 No 144 31 45 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-495 HFRL3 Active, Kontakt 30 276 x 380 x 345 Yes 1822 343 495 400 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 400-495 HFRLP3 Active, Kontakt 30 276 x 380 x 345 Yes 1822 343 495 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-60 H3 Active, Kontakt 5.1 156 x 203 x 184 No 240 42 60 400 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 400-60 HRL3 Active, Kontakt 5.1 156 x 203 x 184 No 240 42 60 400 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 400-60 HRLP3 Active, Kontakt 5.1 156 x 203 x 184 No 240 42 60 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-650 HFRL3 Active, Kontakt 30 276 x 380 x 345 Yes 2192 450 650 400 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 400-650 HFRLP3 Active, Kontakt 30 276 x 380 x 345 Yes 2192 450 650 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 400-8 HRL3 Active, Kontakt 2.1 135 x 136 x 129 No 27 6 8 400 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 400-8 HRLP3 Active, Kontakt 2.1 135 x 136 x 129 No 27 6 8 400 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 500-100 H3 Active, Kontakt 5.7 225 x 203 x 193 No 315 87 100 500 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 500-100 HRL3 Active, Kontakt 5.7 225 x 203 x 193 No 315 87 100 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-100 HRLP3 Active, Kontakt 5.7 225 x 203 x 193 No 315 87 100 500 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 500-1000 HFRL3 Active, Kontakt 74 583 x 685 x 516 Yes 4127 866 1000 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-1000 HFRLP3 Active, Kontakt 74 583 x 685 x 516 Yes 4127 866 1000 500 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 500-130 H3 Active, Kontakt 12 375 x 320 x 241 No 450 112 130 500 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 500-130 HRL3 Active, Kontakt 12 375 x 320 x 241 No 450 112 130 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-130 HRLP3 Active, Kontakt 12 375 x 320 x 241 No 450 112 130 500 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 500-1400 HFRL3 Active, Kontakt 74 583 x 685 x 516 Yes 5086 1212 1400 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-1400 HFRLP3 Active, Kontakt 74 583 x 685 x 516 Yes 5086 1212 1400 500 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 500-16 H3 Aktiv, Vorrätig 2.1 135 x 136 x 129 No 90 14 16 500 3 Ueff / U2eff Anfrage Kaufen
Thyro-A 3A 500-16 HRL3 Active, Kontakt 2.1 135 x 136 x 129 No 90 14 16 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-16 HRLP3 Aktiv, Vorrätig 2.1 135 x 136 x 129 No 90 14 16 500 3 Ueff / U2eff / Ieff / I2eff / P Anfrage Kaufen
Thyro-A 3A 500-170 H3 Active, Kontakt 12 375 x 320 x 241 No 630 147 170 500 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 500-170 HRL3 Active, Kontakt 12 375 x 320 x 241 No 630 147 170 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-170 HRLP3 Active, Kontakt 12 375 x 320 x 241 No 630 147 170 500 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 500-280 HF3 Active, Kontakt 15 375 x 393 x 241 Yes 990 242 280 500 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 500-280 HFRL3 Active, Kontakt 15 375 x 393 x 241 Yes 990 242 280 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-280 HFRLP3 Active, Kontakt 15 375 x 393 x 241 Yes 990 242 280 500 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 500-30 H3 Active, Kontakt 2.1 135 x 136 x 129 No 141 26 30 500 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 500-30 HRL3 Active, Kontakt 2.1 135 x 136 x 129 No 141 26 30 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-30 HRLP3 Active, Kontakt 2.1 135 x 136 x 129 No 141 26 30 500 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 500-350 HF3 Active, Kontakt 25.5 375 x 430 x 261 Yes 1170 303 350 500 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 500-350 HFRL3 Active, Kontakt 25.5 375 x 430 x 261 Yes 1170 303 350 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-350 HFRLP3 Active, Kontakt 25.5 375 x 430 x 261 Yes 1170 303 350 500 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 500-45 H3 Active, Kontakt 5.1 156 x 203 x 184 No 144 39 45 500 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 500-45 HRL3 Active, Kontakt 5.1 156 x 203 x 184 No 144 39 45 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-45 HRLP3 Active, Kontakt 5.1 156 x 203 x 184 No 144 39 45 500 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 500-495 HFRL3 Active, Kontakt 30 276 x 380 x 345 Yes 1822 429 495 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-495 HFRLP3 Active, Kontakt 30 276 x 380 x 345 Yes 1822 429 495 500 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 500-60 H3 Active, Kontakt 5.1 156 x 203 x 184 No 240 52 60 500 3 Ueff / U2eff Kontakt Kaufen
Thyro-A 3A 500-60 HRL3 Active, Kontakt 5.1 156 x 203 x 184 No 240 52 60 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-60 HRLP3 Active, Kontakt 5.1 156 x 203 x 184 No 240 52 60 500 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 500-650 HFRL3 Active, Kontakt 30 276 x 380 x 345 Yes 2192 563 650 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-650 HFRLP3 Active, Kontakt 30 276 x 380 x 345 Yes 2192 563 650 500 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 500-8 HRL3 Active, Kontakt 2.1 135 x 136 x 129 No 27 7 8 500 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 500-8 HRLP3 Active, Kontakt 2.1 135 x 136 x 129 No 27 7 8 500 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 600-1000 HFRL3 Active, Kontakt 74 583 x 685 x 516 Yes 4127 1039 1000 600 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 600-1000 HFRLP3 Active, Kontakt 74 583 x 685 x 516 Yes 4127 1039 1000 600 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 600-1400 HFRL3 Active, Kontakt 74 583 x 685 x 516 Yes 5086 1454 1400 600 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 600-1400 HFRLP3 Active, Kontakt 74 583 x 685 x 516 Yes 5086 1454 1400 600 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 600-495 HFRL3 Active, Kontakt 30 276 x 380 x 345 Yes 1822 514 495 600 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 600-495 HFRLP3 Active, Kontakt 30 276 x 380 x 345 Yes 1822 514 495 600 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen
Thyro-A 3A 600-650 HFRL3 Active, Kontakt 30 276 x 380 x 345 Yes 2192 675 650 600 3 Ueff / U2eff / Ieff / I2eff Kontakt Kaufen
Thyro-A 3A 600-650 HFRLP3 Active, Kontakt 30 276 x 380 x 345 Yes 2192 675 650 600 3 Ueff / U2eff / Ieff / I2eff / P Kontakt Kaufen

Technische Dokumentation

Titel Typ
Thyro-A Operating Manual English (5 MB)
Thyro Family Accessories Brochure (2 MB) Broschüre
Thyro Family SCR Power Controllers Brochure (6 MB) Broschüre
Thyro-Familie (7 MB) Broschüre
Thyro-Familie Zubehor Broschüre (2 MB) Broschüre
BasicBusModul for Thyro-Familie (166 KB) Datenblatt
BasicBusModule Series (165 KB) Datenblatt
Thryro-A Datenblatt (669 KB) Datenblatt
Thyro-A Data Sheet (723 KB) Datenblatt
Thyro-Familie Zubehor Datenblatt (4 MB) Datenblatt
Precision Heat Qualifier (2 MB) Infografik
SCR Power Controllers Infographic (250 KB) Infografik
Busmodul CANopen Benutzerhandbuch (1 MB) Handbuch
Busmodul DeviceNet Benutzerhandbuch (1 MB) Handbuch
Busmodul ModbusRTU Benutzerhandbuch (2 MB) Handbuch
Busmodul ModbusTCP Benutzerhandbuch (2 MB) Handbuch
Busmodul Profinet Benutzerhandbuch (2 MB) Handbuch
Busmodule CANopen Benutzerhandbuch (909 KB) Handbuch
Busmodule Profibus DPV1 Benutzerhandbuch (2 MB) Handbuch
Thyro Basic Bus Module Operating Manual (1 MB) Handbuch
Thyro Bus Module - Modbus RTU Manual (2 MB) Handbuch
Thyro Bus Module - Modbus TCP Operating Manual (2 MB) Handbuch
Thyro Bus Module CANopen Operating Manual (1 MB) Handbuch
Thyro Bus Module DeviceNet Operating Manual (1 MB) Handbuch
Thyro Bus Module Ethernet/IP Operating Manual (2 MB) Handbuch
Thyro Bus Module Profibus Operating Manual (2 MB) Handbuch
Thyro Bus Module Profinet Operating Manual (2 MB) Handbuch
Thyro BusModule CANopen Manual (1 MB) Handbuch
Thyro-A H3 Operating Manual (5 MB) Handbuch
Thyro-A Leistungssteller Benutzerhandbuch (3 MB) Handbuch
Thyro-Power Manager Operating Instructions (1 MB) Handbuch
Thyro Profibus GSD (Thyro-S, Thyro-A, and Thyro-AX) (23 KB) Software
SCR Power Control Benefits White Paper (126 KB) Weißbuch
Top Advantages of SCR Power Controllers White Paper (2 MB) Weißbuch
What You Need to Know About SCR Power Controllers (1 MB) Weißbuch

Software

Zubehör

Thyro Basic Bus Module

Bus module for connection of up to 8 power controllers, optional dASM

Herunterladen

Thyro Anybus Module - EtherNet/IP

Communication Module Adds EtherNet/IP Interface

Herunterladen

Thyro Anybus Module - EtherCAT

Communication Module Adds Another Interface

Herunterladen

Thyro Anybus Module - Profibus

Communication Module Adds the Profibus Interface

Herunterladen

Thyro Anybus Module - Profinet

Communication Module Adds Profinet Interface

Herunterladen

Thyro Anybus Module - Modbus

Communication Module Adds Modbus TCP Interface

Herunterladen

Thyro GSD Software

Download Thyro GSD files

Herunterladen

Thyro Tool Pro

Thyro Tool software is custom software made for Thyro SCR Power Controllers

Herunterladen

Vergleichen Sie

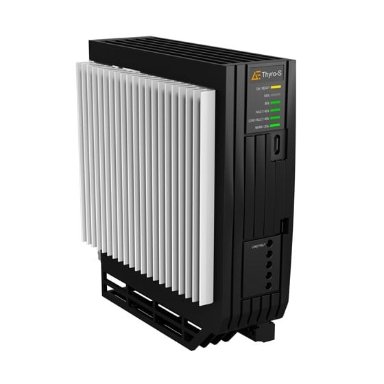

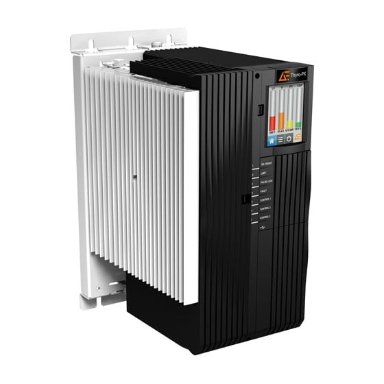

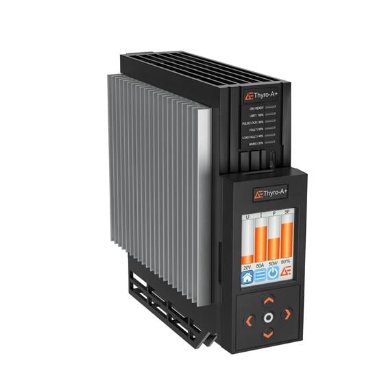

Model Thyro-A Power Controller Thyro-S Power Controller Thyro-A+ Power Controller Thyro-PX Power Controller
Frequenz (Hz) 47 to 63 47 to 63 47 to 63 47 to 63
Sicherungen Integrated semiconductor fuse Integrated semiconductor fuse Integrated semiconductor fuse Integrated semiconductor fuse
Betriebsart TAKT, VAR, QTM, and with optional BasicBusModule TAKT and with optional BasicBusModule TAKT, VAR, QTM, VT Mode and with optional BasicBusModule TAKT, VAR, VSC, Soft start, soft down
Nennströme (A) Up to 1500 A Up to 350 A Up to 650 A Up to 5000 A
Nennspannungen (V) Up to 500 V Up to 500 V Up to 500 V Up to 690 V
Kommunikationsschnittstelle Micro-USB connector for Thyro-Tool Pro PC software connection
BasicBusModule with Anybus Digital Interface Card 		Micro-USB connector for Thyro-Tool Pro PC software connection
BasicBusModule with Anybus Digital Interface Card 		Display for Thyro-A+ configuration with optional SD memory card and process data recorder
BasicBusModule with Anybus Digital Interface Card
Micro-USB connector for Thyro-Tool Pro PC software connection 		USB interface for Thyro-Tool Software
RS232 interface for Thyro-Touch Display

Verwandte Anwendungen

Alle Anwendungen erkunden

Glass

Trusted Solutions for Glass Production: Advanced Energy offers a complete solution for every stage of the manufacturing process for flat glass, container glass, specialty glass, technical glass, and glass coating.
Explore Glass

Steel & Metals

Advanced Energy's Steel & Metal solutions provide cutting-edge technology, ease-of-use, and dependability through our non-contact temperature sensors and power controllers.
Explore Steel & Metals

Petrochemicals

Advanced Energy provides innovative temperature and gas sensing instruments for the petrochemical market that are designed for high-temperature, energy-intensive processes such as reforming and distillation operations..
Explore Petrochemicals

Beschichtung

AE bietet ein umfassendes Portfolio für die Halbleiterabscheidung an, darunter Lösungen für Plasma-Stromversorgungen, Temperaturmessung, Temperaturkontrolle und Waferkontrolle.
Beschichtung entdecken

Dienstleistungen

Field services and On-Site Training

Our field service engineers are available to support your on-site needs. We can properly secure and mount products, hook up your electrical connections, validate alignment and calibrate, and test to your specifications.

Refurbishments

Extend product life and reduce mean time between failure by replacing time-dependent components during reactive or preventative maintenance. Get the performance you would expect at the time of original manufacture for a fraction of the cost of a new unit

Repair

Our worldwide service centers provide fast cycle times, use only AE-qualified parts, and follow the original product's specifications and test procedures for the highest quality repair or calibration.

Agreement Term Options

Retrofit

Replace existing, aged, discontinued, or unrepairable devices of any make and model with a new, drop-in solution, which is transparent from a specification and operation standpoint.

Service Agreements

Reduce annual maintenance costs and simplify forecasting by building a custom service agreement into your annual operating plan. We have the capability, expertise, and capacity to provide repair services, upgrades, refurbishments, exchange, and other service offerings to support maintenance and use of AE Products. We offer multi-year contracts and provide faster turnaround time for covered products.

Agreement Term Options

Upgrades & Enhancements

Take advantage of the latest engineering innovations to optimize long-term product performance. Add custom-engineered solutions to utilize new feature sets and functionality

24/5 Support verfügbar

Holen Sie sich Expertenrat von unseren Ingenieuren

Wir sind bestrebt, unseren Kunden einen hervorragenden Kundendienst und technischen Support zu bieten. Mit Live-Chat und Telefon-Support können Sie jederzeit einen qualifizierten Techniker um Hilfe bitten.
Jetzt Unterstützung anfordern
