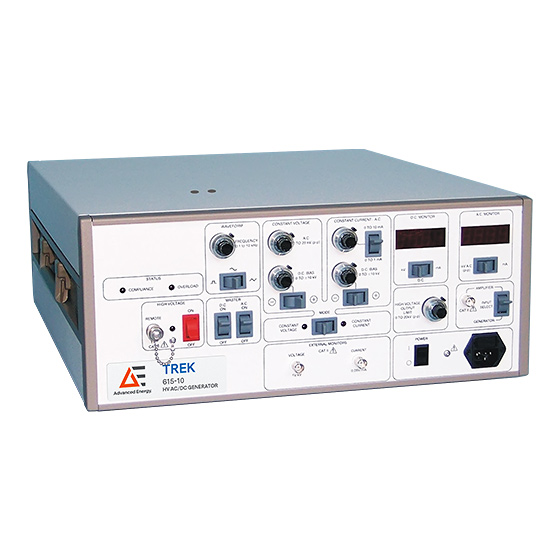

Trek 615-10 Series
Active
High Voltage AC-DC Generator and Amplifier System for R&D and Production Applications
The Trek® 615-10 is a precision high voltage AC-DC generator and amplifier system used in a broad range of R&D and production applications. In the constant voltage mode, the Trek 615-10 generates constant amplitude waveforms with or without DC bias. In the constant current mode, it generates constant amplitude AC current waveforms, with or without DC bias. In amplifier mode, an analog voltage input connector is provided to apply external AC or DC signals.
Eigenschaften
- Three modes of operation with or without DC offset bias
- Four-quadrant output extends the frequency response
- NIST-traceable calibration certificate provided with each unit
- Operator-selectable sine, square, or triangle wave output shape
Vorteile
- Monitor and control photoreceptor charging current with high accuracy
- Remotely operate using an exclusive instrument interface
- Use in a broad range of applications with versatile features
Spezifikationen
| Ausgangsleistung (W): | 350 |
|---|---|
| Maximaler Ausgangsstrom (A): | ±0.035 |
| Anstiegsgeschwindigkeit (V/ms): | >500000 |
| Ausgangsstrombereich (mA): | 0 to ±35 |
| Ausgangsspannungsbereich (V): | 0 to ±10000 |
Zubehör
Amplifier Selection Calculator
To help you select the appropriate Trek amplifier, we created this calculator. It uses peak-to-peak voltage to help calculate values associated with driving capacitive loads. If you have any difficulty with this software or would rather not do the download, please use the step-by-step calculator procedure.
Technische Dokumentation
Dienstleistungen
Calibration and Alignment
Advanced Energy has the tools and processes to ensure your equipment continues to meet its original specifications. Our products are calibrated at global AE service sites with proprietary technology designed to exceed industry standards.
Agreement Term Options
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
