artesyn™.
AVQ100-36S3V3 Series
Active
100 W Quarter-Brick DC-DC Converters
The AVQ100-36S3V3 is a single output DC-DC converter with standard quarter-brick outline and pin configuration. It delivers up to 25 A output current with 3.3 V output voltage, and offers over 90% efficiency. Excellent thermal performance makes it an ideal choice for use in telecom and datacom. Note the significant operating temperature range – this converter can work under -40°C to +85°C, and the 18 V to 60 V wide input range, ensuring use in both 24 V and 48 V power system applications.
Eigenschaften
- Input voltage 18Vdc to 60Vdc
- Output voltage 3v3
- Output current 25A
- Isolation voltage 1500Vdc
- Mechanical outline standard 1/4 brick footprint
Vorteile
- Enable Positive or Negative
- Insulation Basic insulation

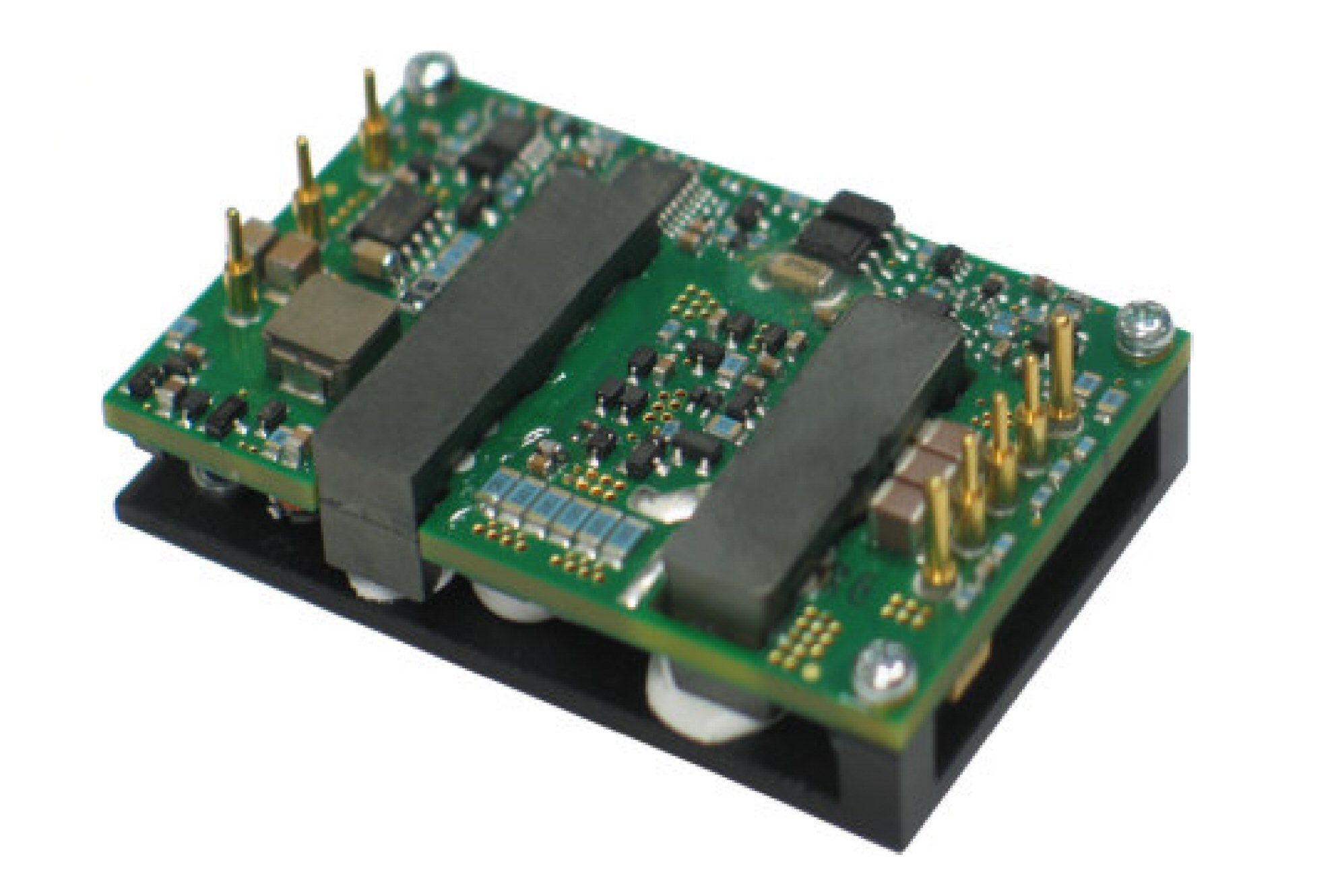

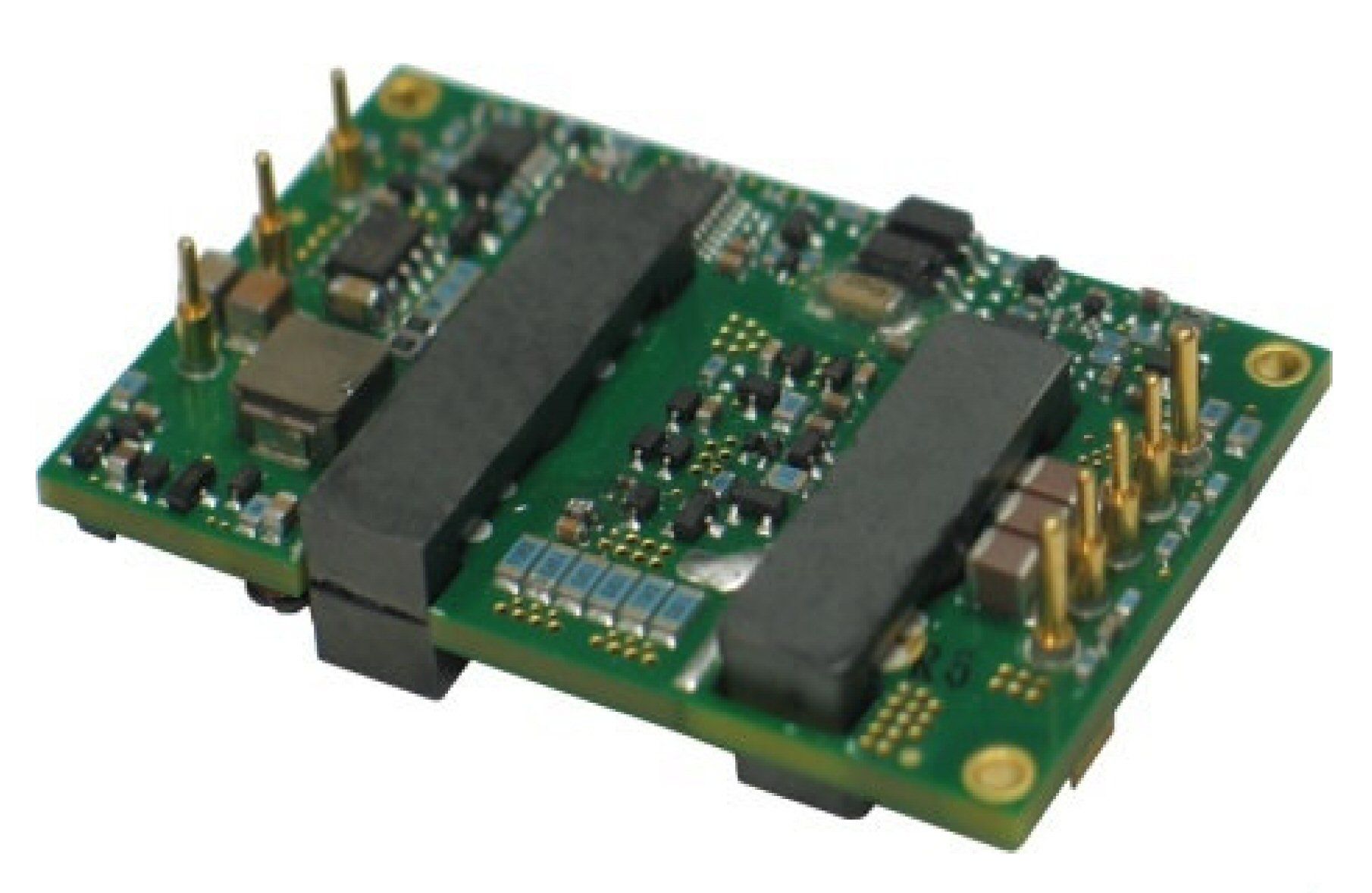

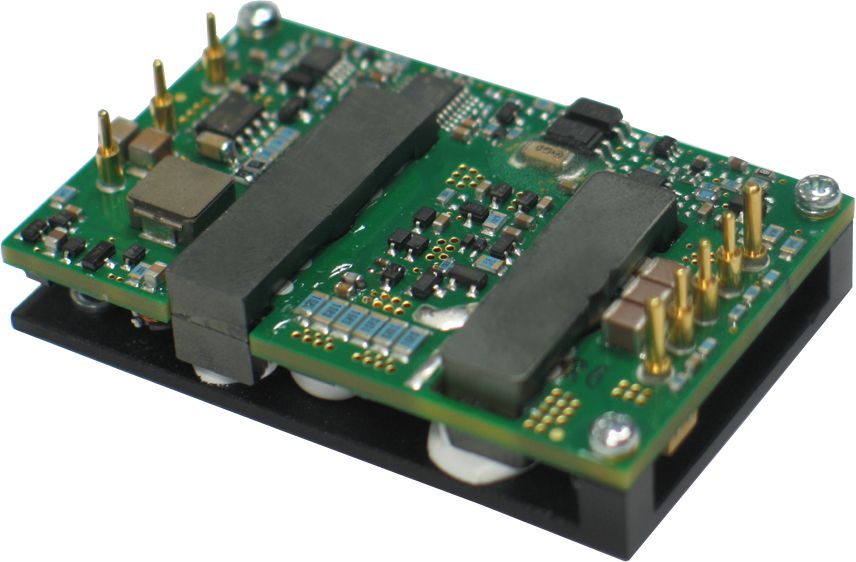

- Mechanical Open frame or baseplate version
Spezifikationen
| Ausgangsleistung (W): | 82.5 |
|---|---|
| Länge (Zoll): | 2.3 |
| Breite (Zoll): | 1.45 |
| Höhe (Zoll): | 0.5 |
| Montage Typ: | BMP; Through Hole |
| Minimaler Ausgangsstrom (A): | 0 |
| Maximaler Ausgangsstrom (A): | 25 |
| Ausgangsspannungsbereich (V): | 2.6V to 3.6V |
