AVD85 Series
Active
85 W Sixteenth-Brick Isolated DC-DC Converters

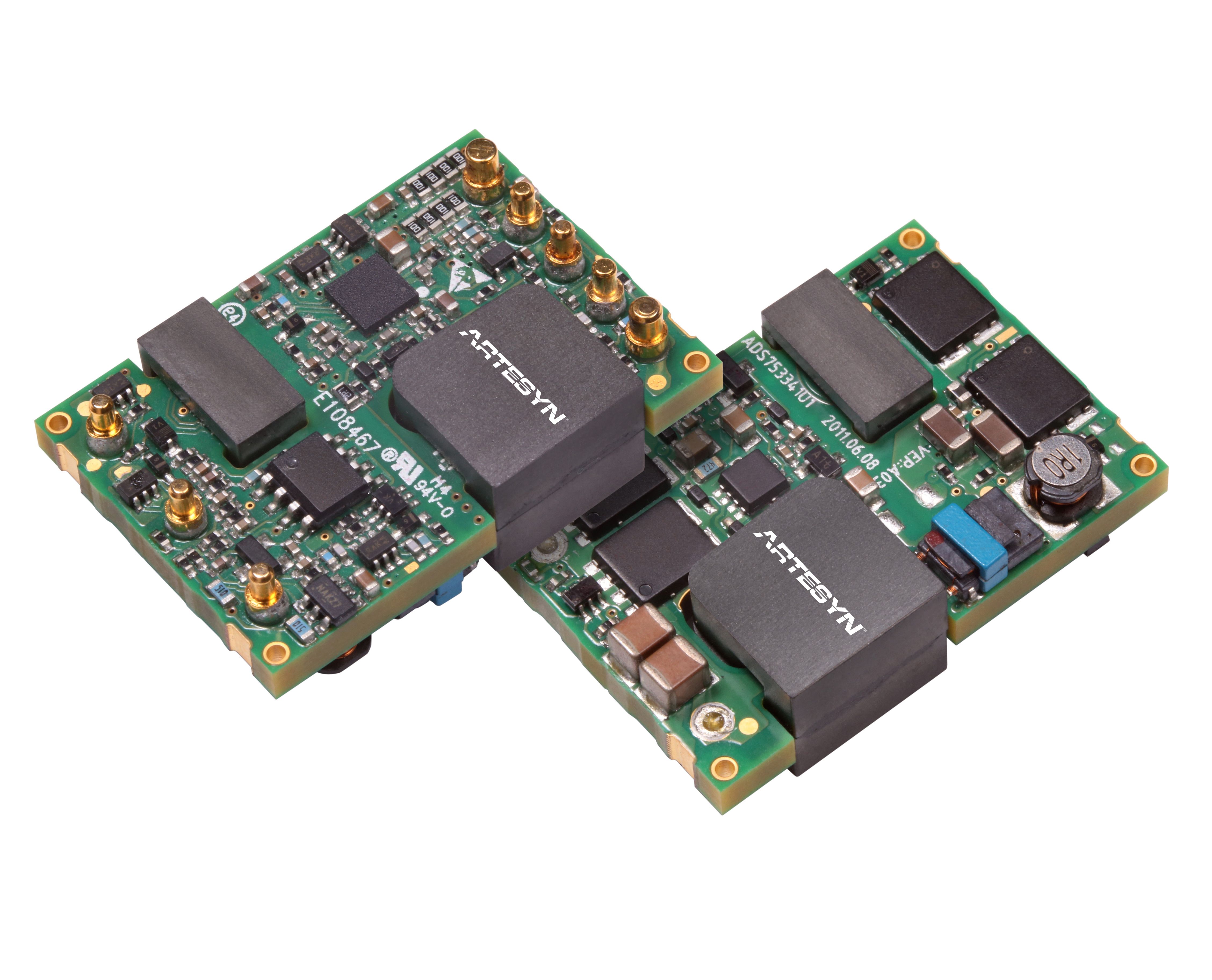

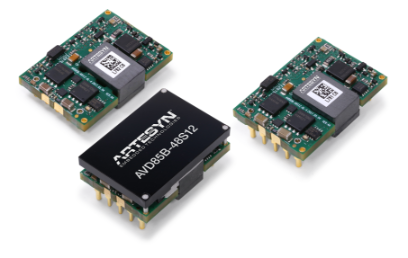

Advanced Energy’s AVD85 series of sixteenth-brick isolated DC-DC converters comprises three single output models offering fully regulated voltages of 3.3 V, 5.0 V or 12 V, rated at 25 A, 17 A and 7 A respectively. Rated at 85 W, they employ an open-frame construction, offer up to 91% full load efficiency and accommodate an ambient operating temperature range of -40 to 85˚C. All three converters have a wide 2:1 input range of 36 to 75 VDC and are designed primarily for use with standard 48 V telecommunications equipment supplies and offer a baseplate option for enhanced thermal performance.
Eigenschaften
- 2:1 Wide input range
- input voltage 36-75
- output current 25 A
- Output voltage 3.3
- Output voltage 12
Vorteile
- Basic insulation system
- Fixed switching frequency
- High capacitive load capability
- High efficiency
- Low ripple and noise

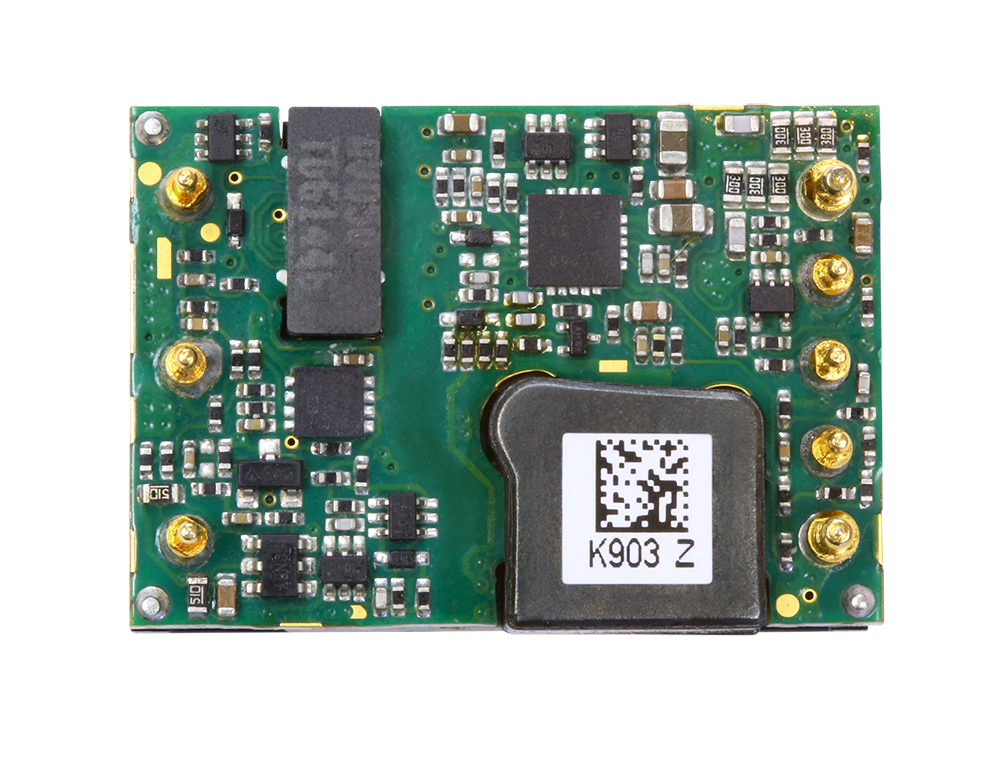

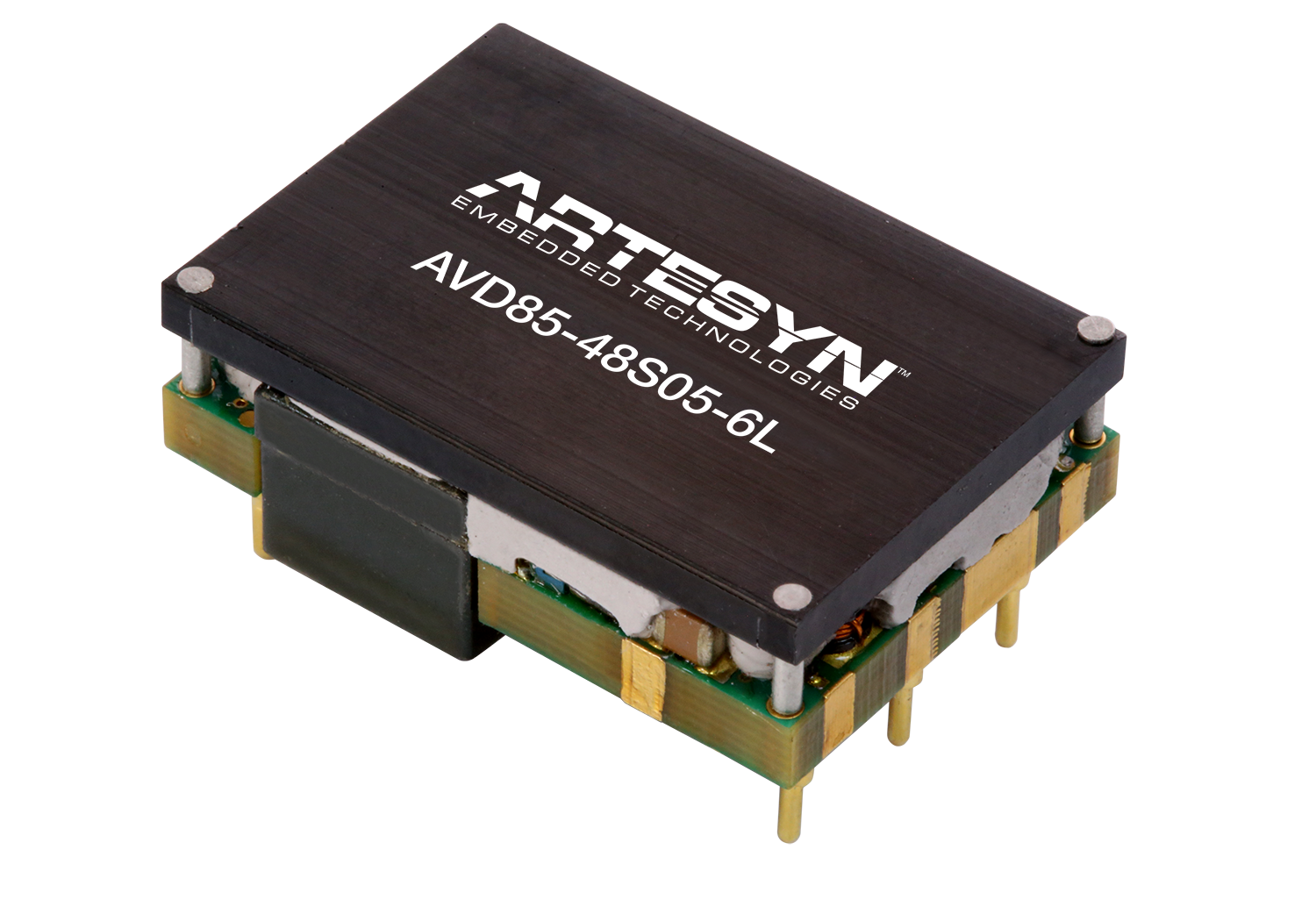

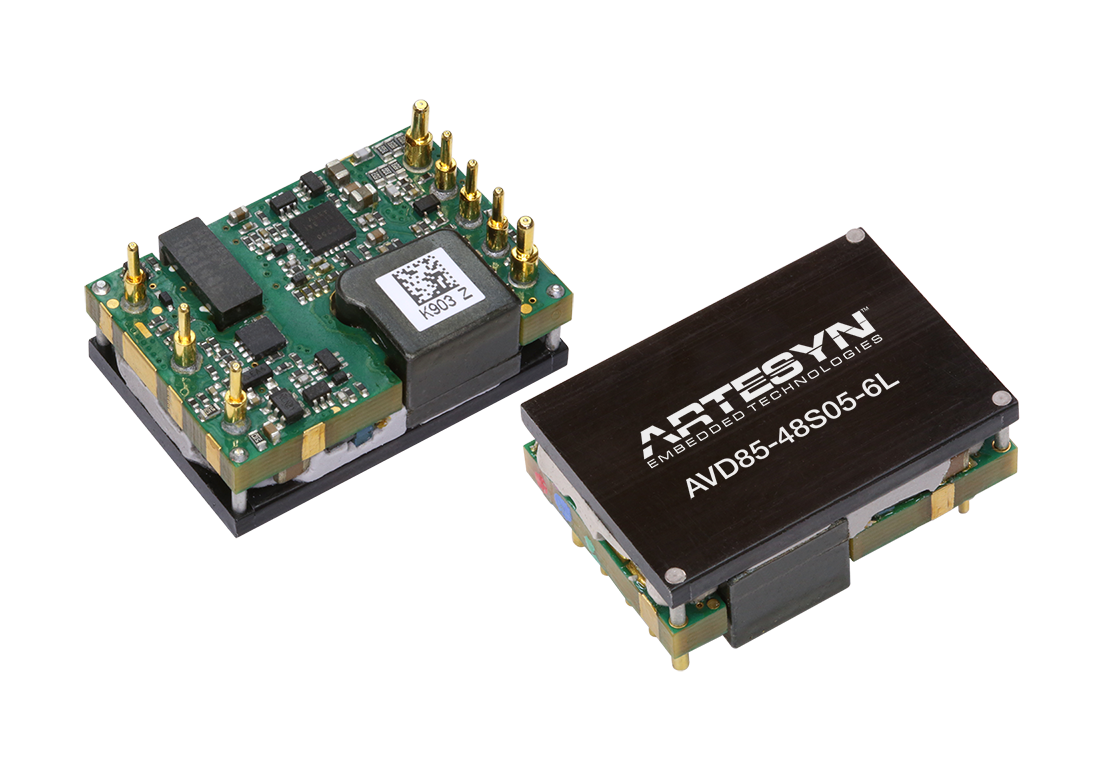

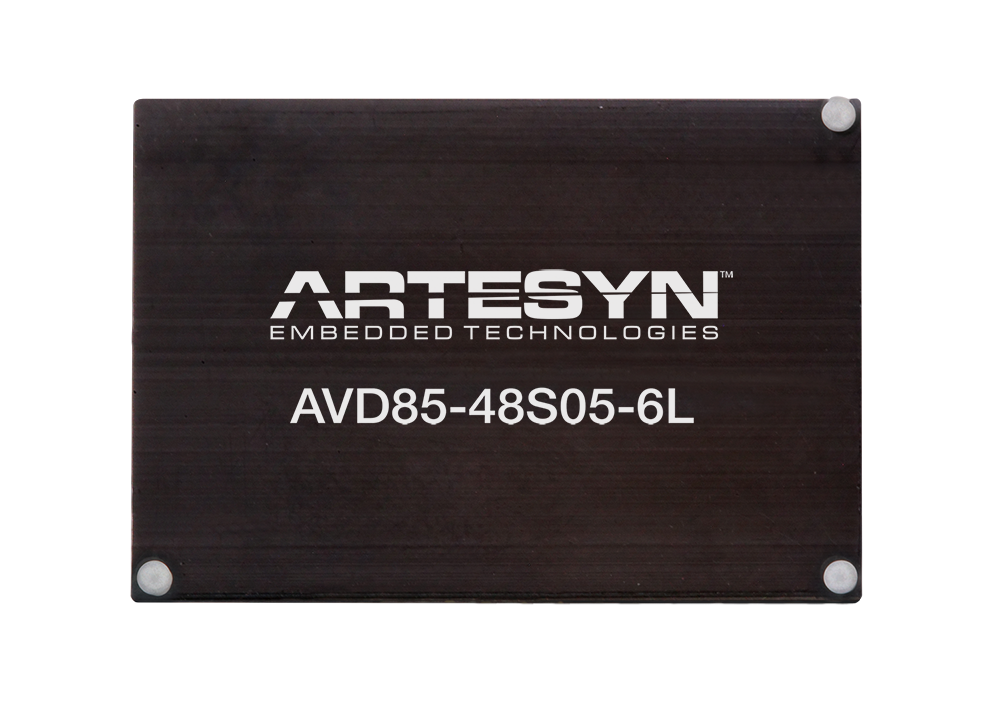

- Openframe structure with Baseplate option
- Optimised for High density, small space applications
- Prebias startup capability
- Through hole or SMT termination
- isolation basic insultaion
Spezifikationen
| Ausgangsleistung (W): | 85 |
|---|---|
| Länge (Zoll): | 1.299 |
| Breite (Zoll): | 0.9 |
| Höhe (Zoll): | 0.3 |
| Montage Typ: | BMP; SMT &Through Hole |
| Minimaler Ausgangsstrom (A): | 7 |
| Maximaler Ausgangsstrom (A): | 25 |
| Ausgangsspannungsbereich (V): | 3.3V to 12V |
