ADQ700 Series

Active

700 W Digital Interface 1/4 Brick

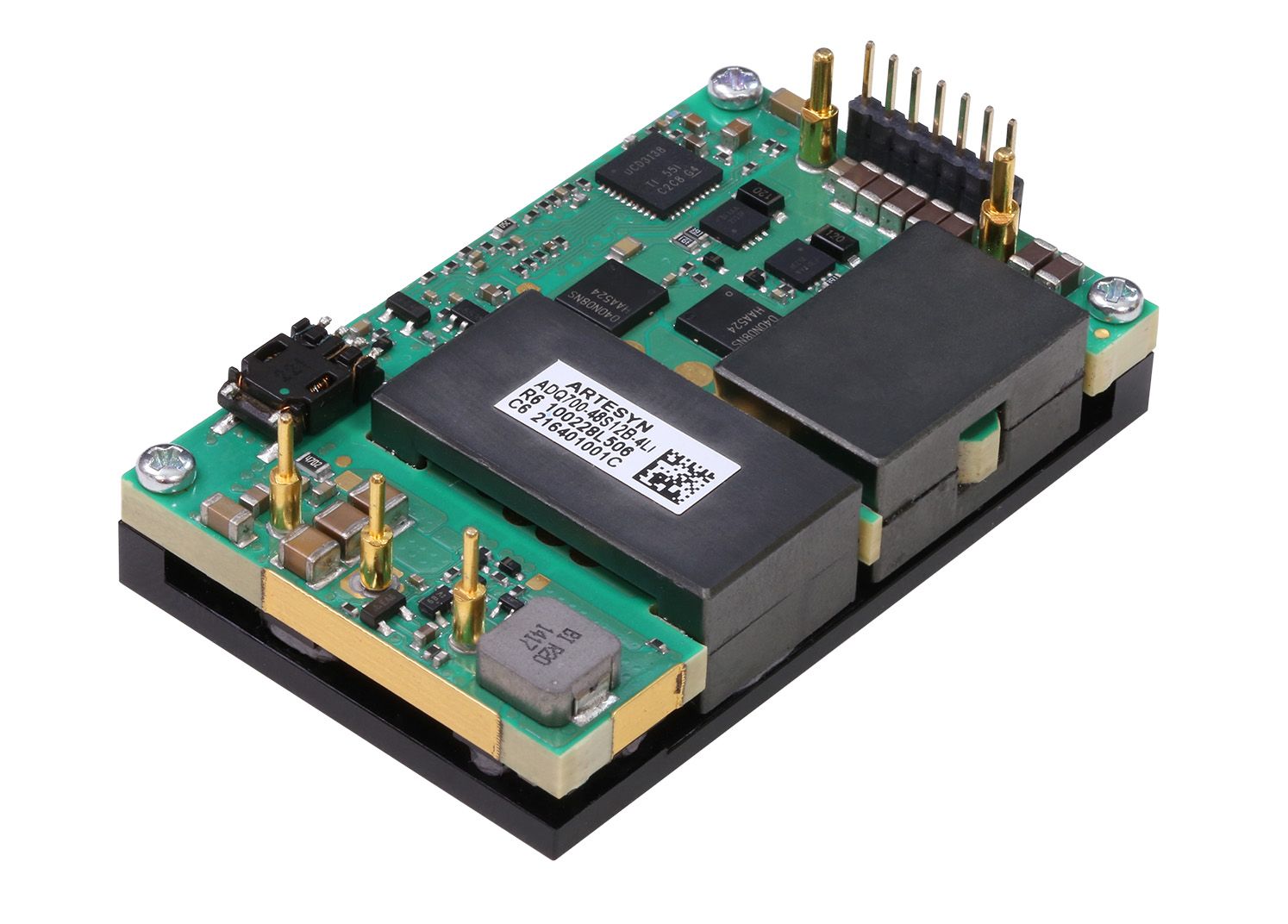

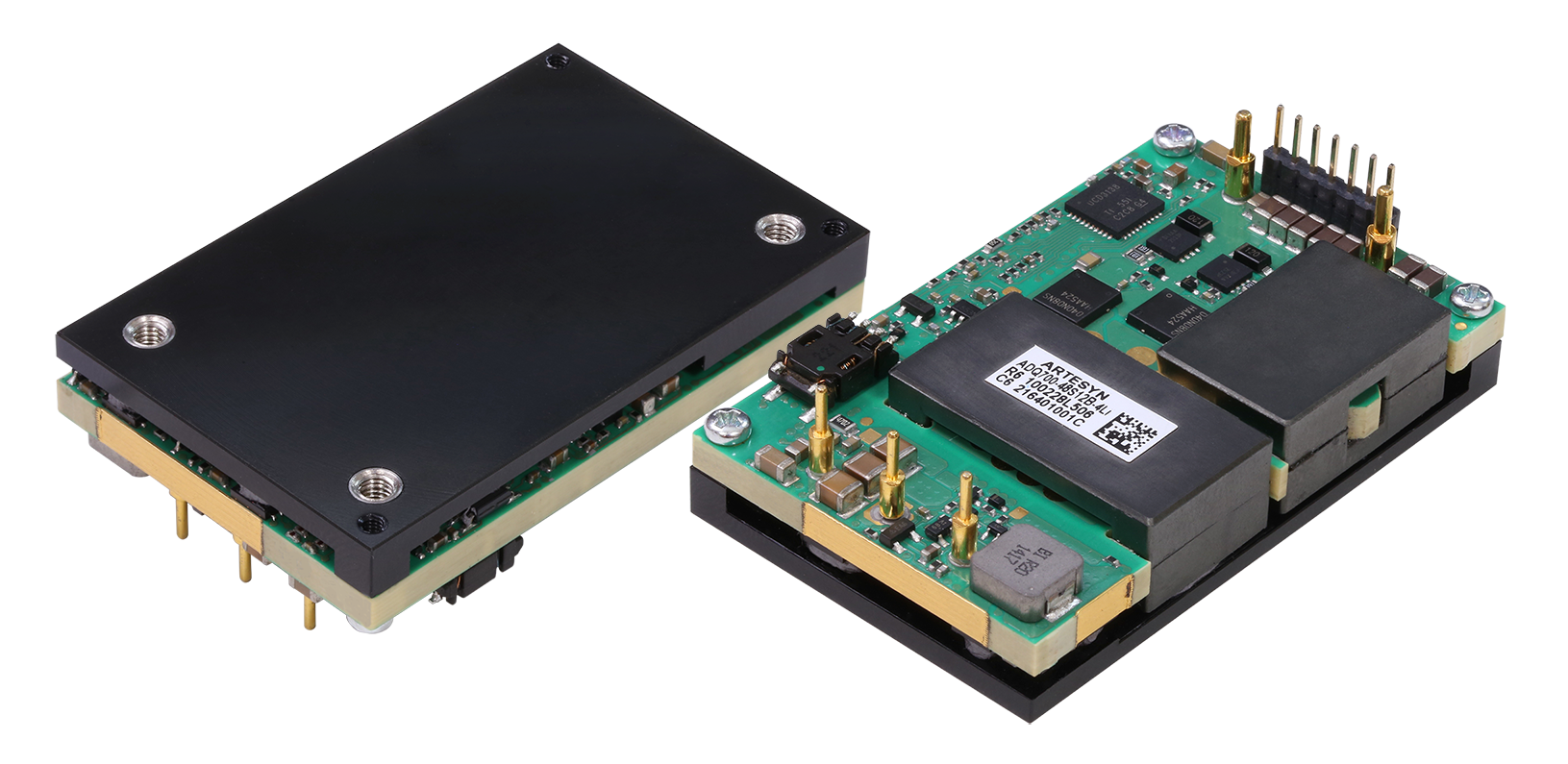

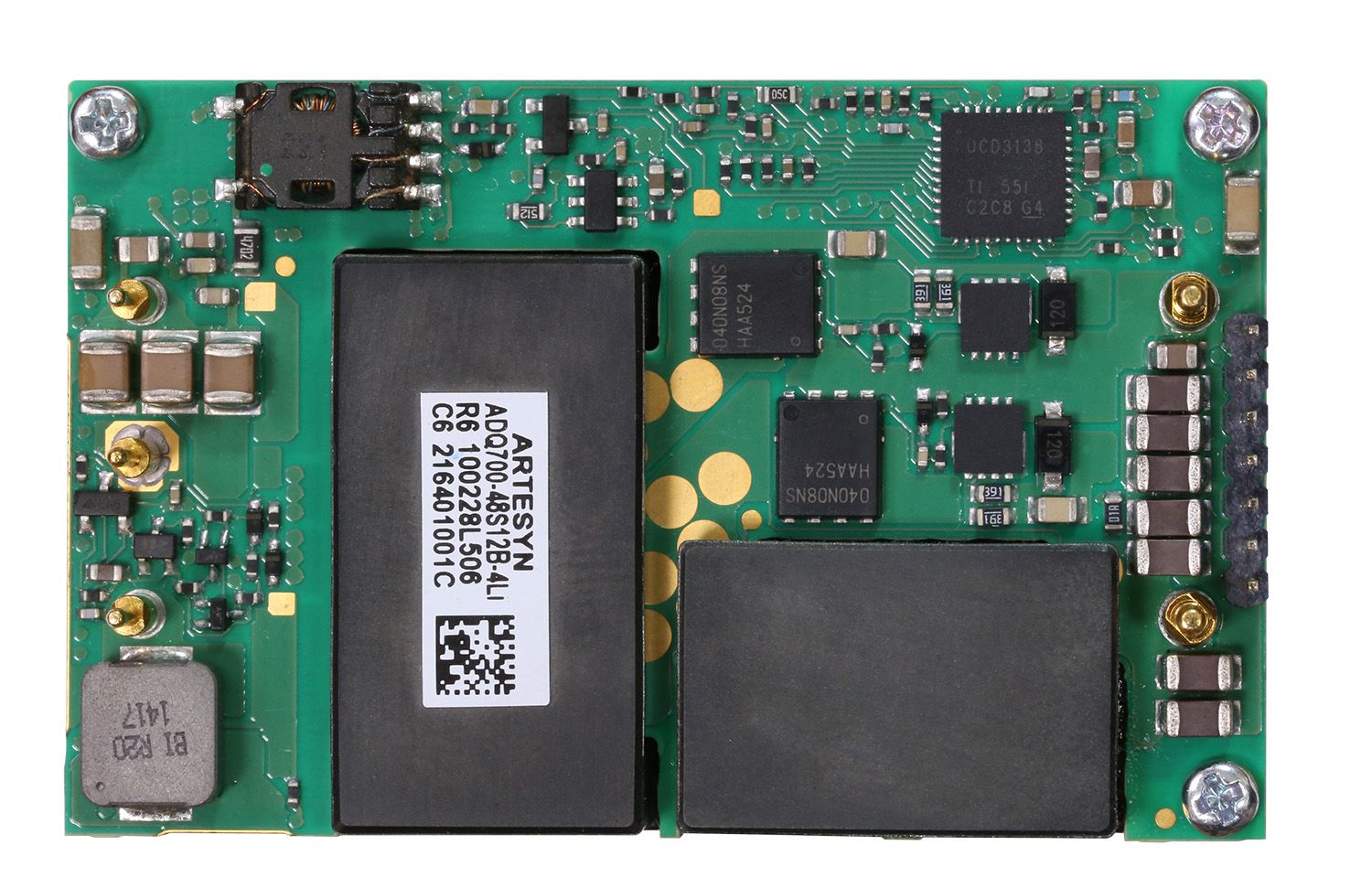

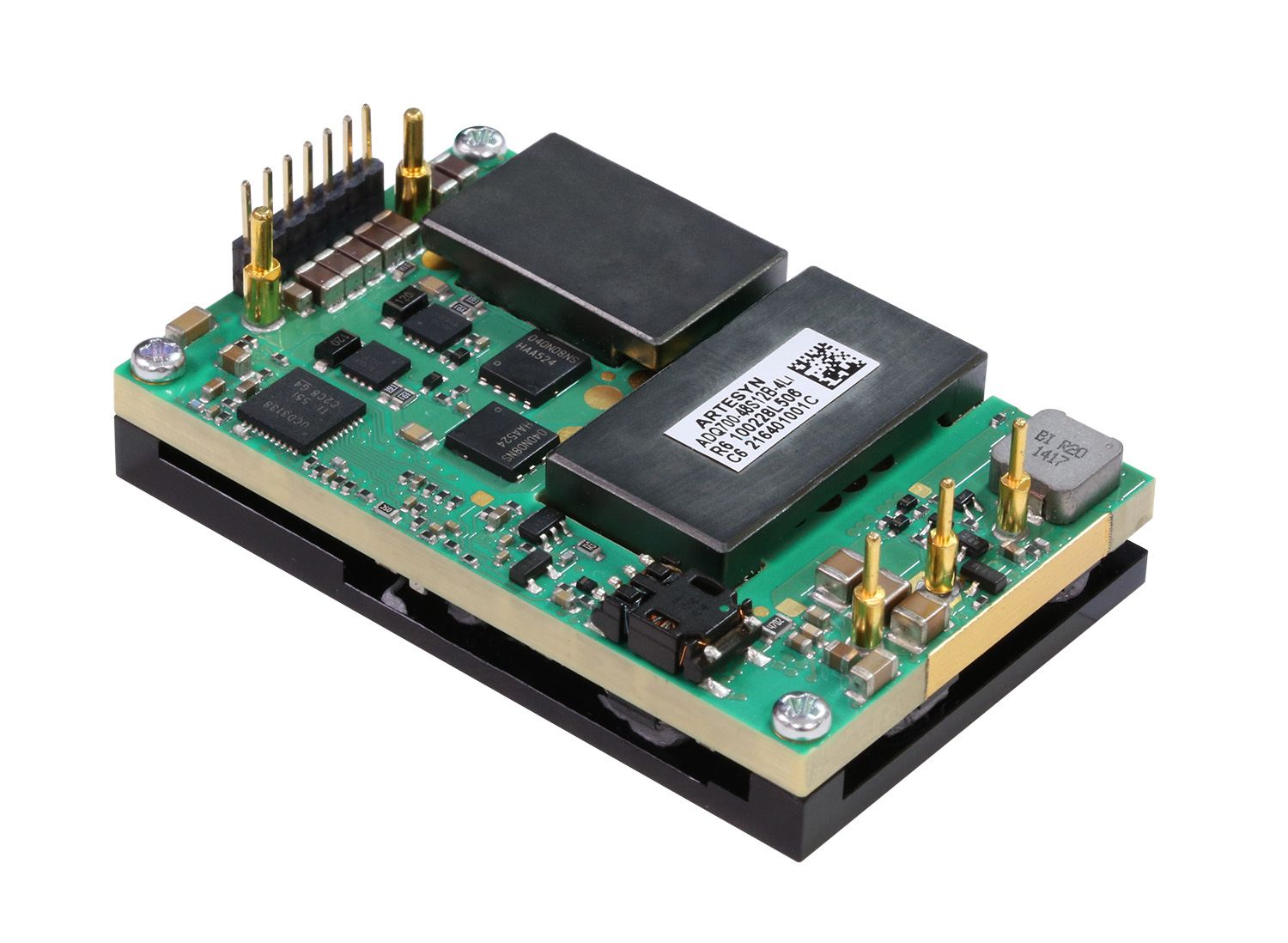

Designed for 48 V supplies in computing, server, and communications equipment, the 700 W ADQ700 quarter-brick isolated DC-DC converters output regulated 12 VDC and up to 58 A. The converters have an input voltage range of 40 to 60 VDC and offer a typical full-load efficiency of 96%. The ADQ700 series switches at 200 kHz to minimize EMI filter size and operates through an ambient temperature range of -40 to +85˚C. Standard features include pre-bias start-up; paralleling capability with automatic droop current sharing; and protection from input undervoltage, overvoltage lockout, output overvoltage, output overcurrent, and overtemperature. Choose from analog and digital interface options and open-frame and baseplate models featuring installed heights of 0.43 inch (11 mm) and 0.52 inch (13.3 mm), respectively.


Eigenschaften

  • 40 60 Vdc Datacomm input range
  • 700 W continuous power
  • IPC9592 component stress compliant
  • RoHS 6 compliant
  • UL94 V0 materials
  • Ultra high efficiency > 96%
  • Input Voltage: 40V to 60V
  • Total Max Power: 700 W
  • Total Max Current: 58 A
  • Output Voltage: 12 V
  • Size (L x W x H): 2.3
  • Warranty: 2 years
  • Operating Temperature: -40 to +85 C

Vorteile

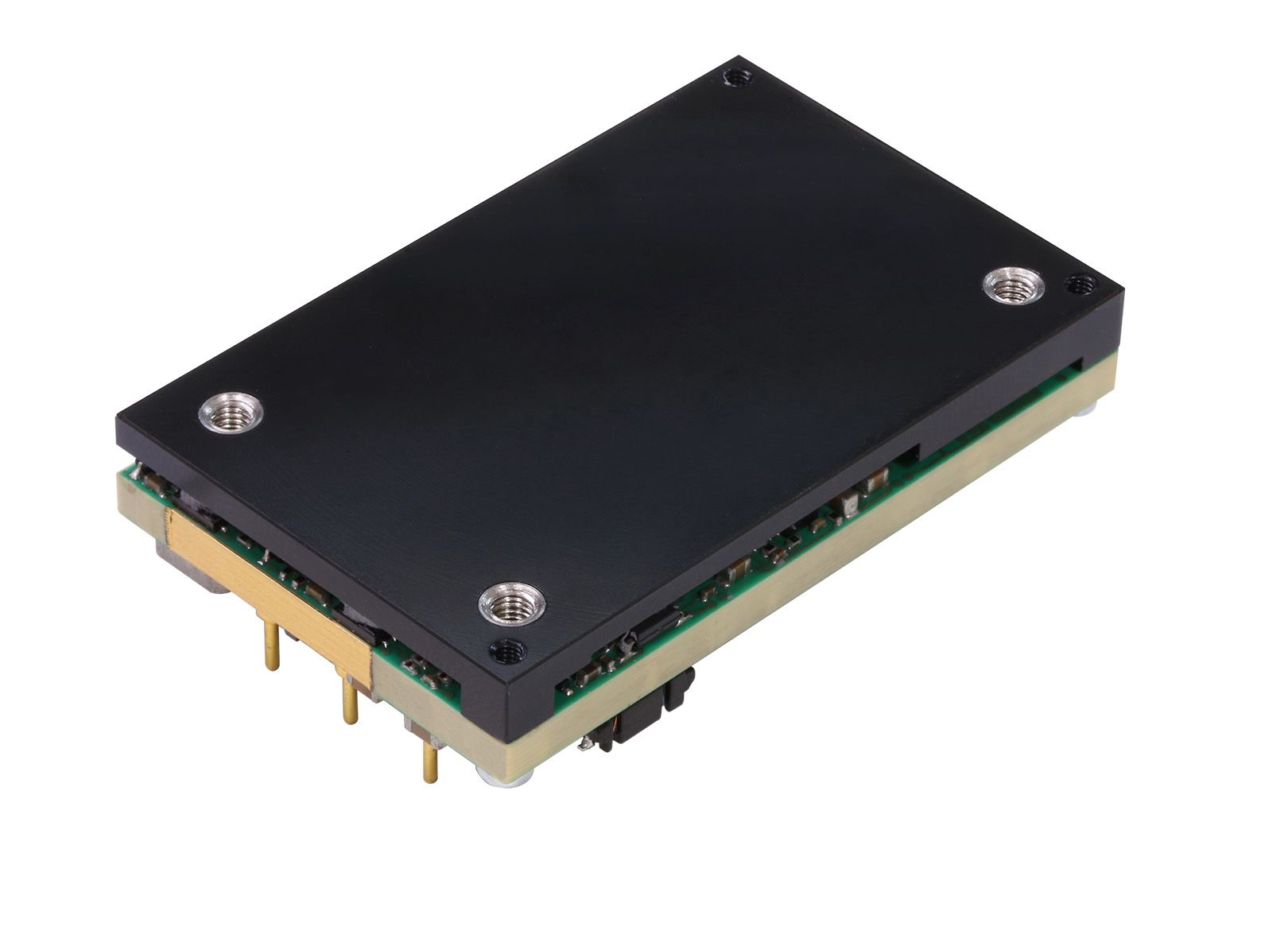

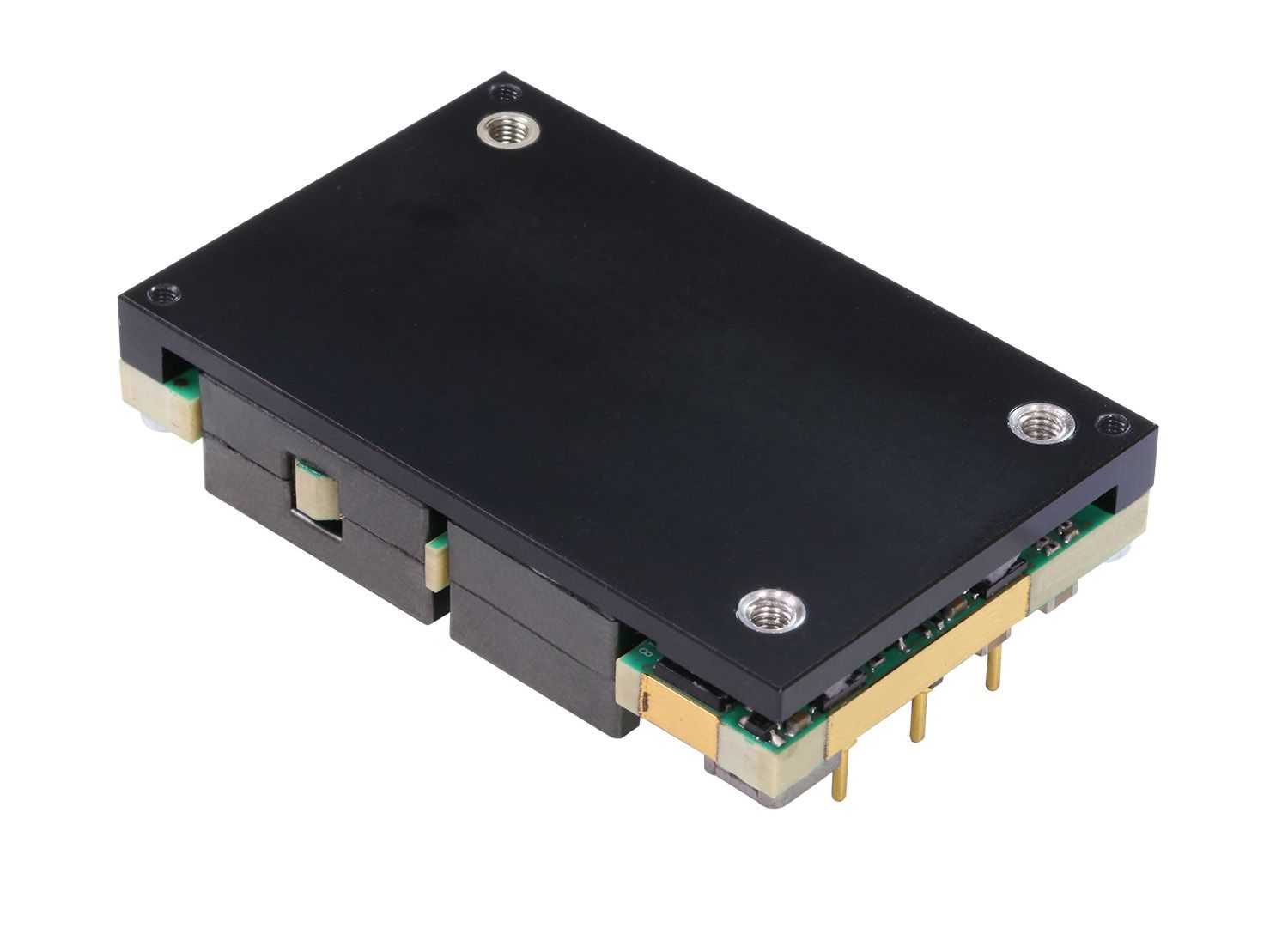

  • Baseplate optimized for contact cooling or heatsink mounting
  • DOSA footprint compliant
  • Fixed switching frequency
  • Heatsink accesory pack can be ordered (heatsink, thermal pad and screws)
  • High capacitive load capability
  • High reliability
  • Low ripple and noise
  • Open frame version optimized for air cooling
  • PMBus® communication
  • Prebias startup capability
  • Two year warranty (consult factory for extended terms)
  • Outputs: SINGLE

Spezifikationen

Ausgangsleistung (W): 696
Länge (Zoll): 2.3
Breite (Zoll): 1.45
Höhe (Zoll): 0.5
Montage Typ: BMP; Through Hole
Minimaler Ausgangsstrom (A): 0
Maximaler Ausgangsstrom (A): 58
Ausgangsspannungsbereich (V): 12V to 12V
Alle Spezifikationen Spezifikationen zusammenklappen

Lagerbestand prüfen

Modellnummer
Min. Spannung (V) Max. Spannung (V) Stromstärke (A) Nennspannung (V) Anzahl der Ausgänge Proben Kaufen
ADQ700-48S12-4L Aktiv, Vorrätig
700W 12V 1/4 brick
12 12 58 12 1 Anfrage Kaufen
ADQ700-48S12-4LI Aktiv, Vorrätig
700W 12V 1/4 PMBus brick
12 12 58 12 1 Anfrage Kaufen
ADQ700-48S12B-4L Aktiv, Vorrätig
700W 12V baseplate 1/4br
12 12 58 12 1 Anfrage Kaufen
ADQ700-48S12B-4LI Aktiv, Vorrätig
700W 12V 1/4 PMBus brick
12 12 58 12 1 Anfrage Kaufen

Zubehör

Universal PMBus GUI Software Package

The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
