Xsolo

Active

500 and 1000 W Ultra Compact, High-Reliability Single Output Power Supplies

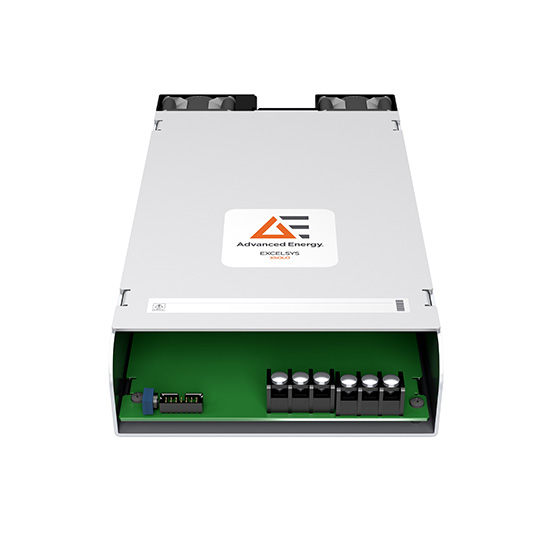

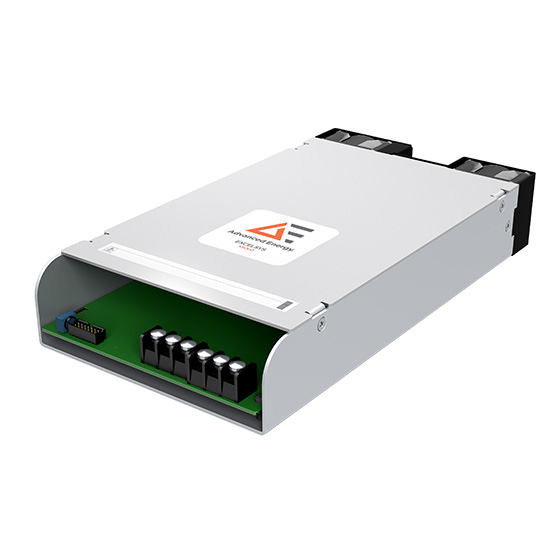

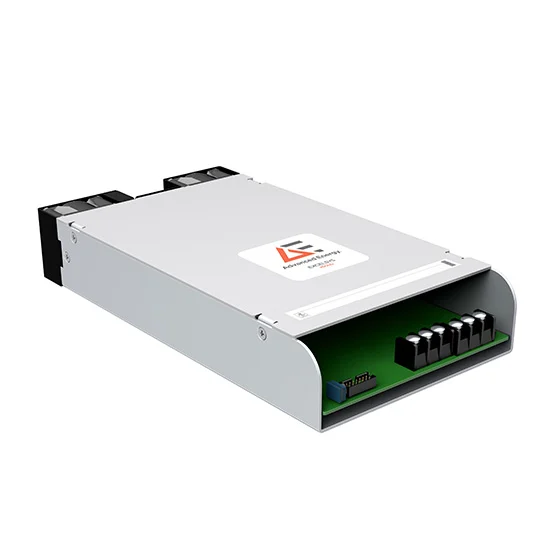

The efficient and reliable Excelsys Xsolo single-output power supplies provide up to 1008 W in a compact 1U package. The power supplies are available in two packages. The Xsolo 500 W is an open-frame, U-channel form factor and the Xsolo 1000 W is an enclosed, fan-cooled chassis. Available with nominal 24, 36 and 48 V outputs, the Xsolo platform features a wide output voltage adjustment, variable-speed fan, 12 V/300 mA isolated-bias supply, and remote on/off capabilities. Options include OR-ing for N+1 redundancy and PMBus® for digital communications.

Eigenschaften

  • Greater than 92% ultra-high efficiency
  • Ideal for acoustically sensitive laboratory and medical environments (Xsolo 500 W)

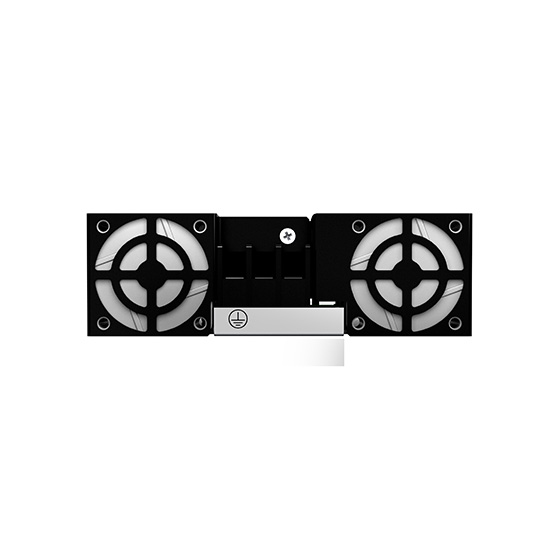

  • Fan-cooled 1000 W
  • Digital control 12 V/50 mA-bias-standby voltage provided
  • 1U height

Vorteile

  • Power Density: Convection-cooled 504 W in an open-frame, U-channel form factor and up to 1008 W in an enclosed, fan-cooled chassis
  • Full Safety Agency Approvals: See Technical Specs for details
  • Intelligent Digital Power: Access maximum flexibility with analog and digital control

Spezifikationen

Ausgangsleistung (W): 504 to 1008
Länge (Zoll): 9.3
Breite (Zoll): 5
Höhe (Zoll): 1.575
Montage Typ: Base/Side Mounting, DIN-Rail Mounting
Minimaler Ausgangsstrom (A): 10.5
Maximaler Ausgangsstrom (A): 42
Ausgangsspannungsbereich (V): 14 to 58
Alle Spezifikationen Spezifikationen zusammenklappen

Vergleichen Sie

Model Xsolo CoolX1000 Coolx600 Ultimod
Maximale Ausgangsleistung (W) 1008 1000 600 1200
