500 W AC-DC Full Brick

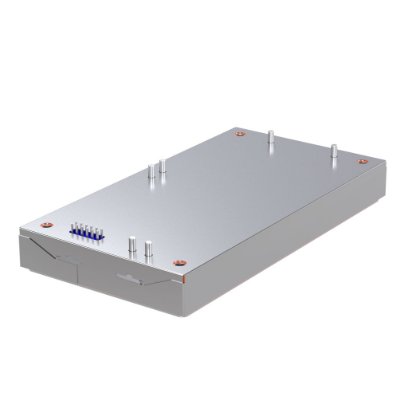

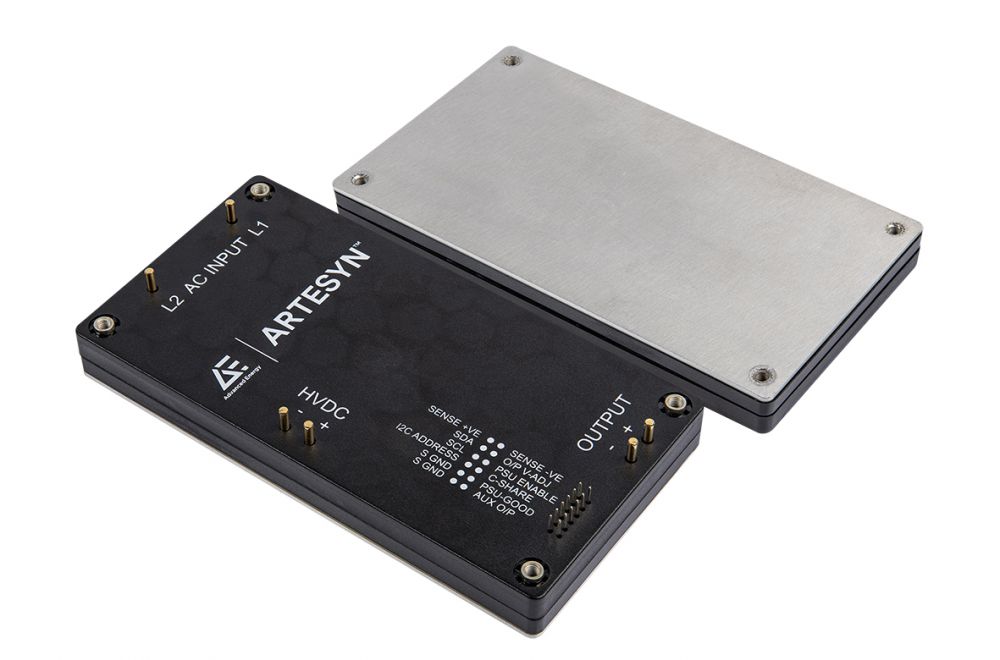

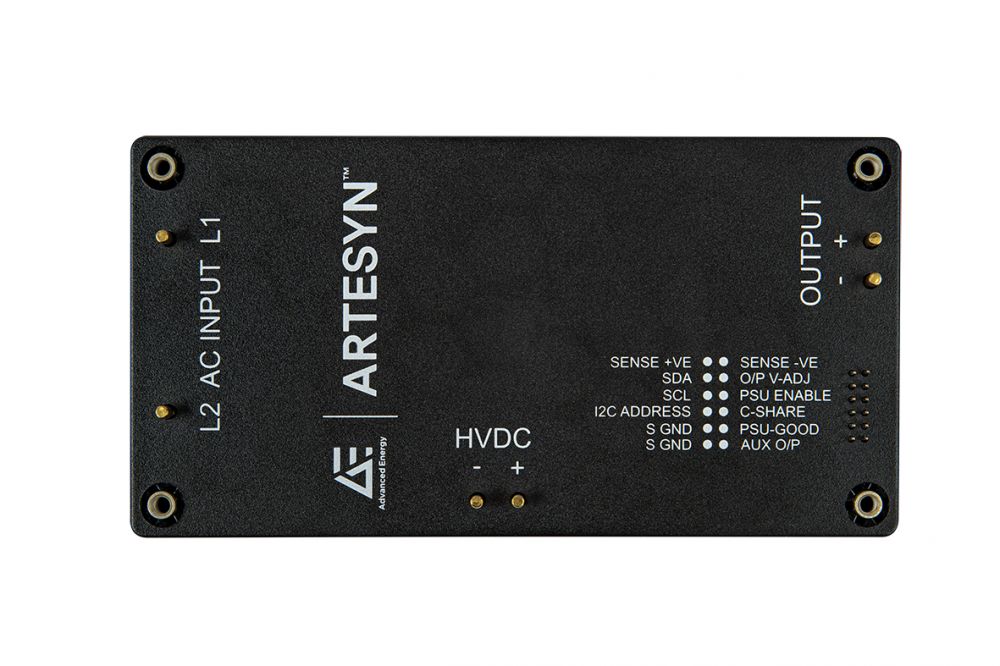

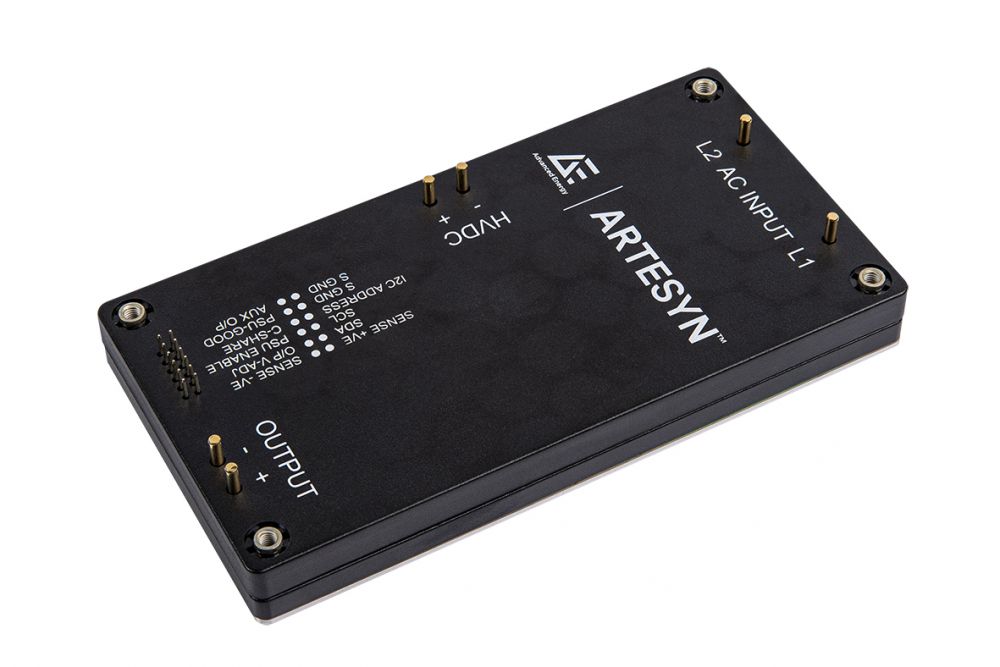

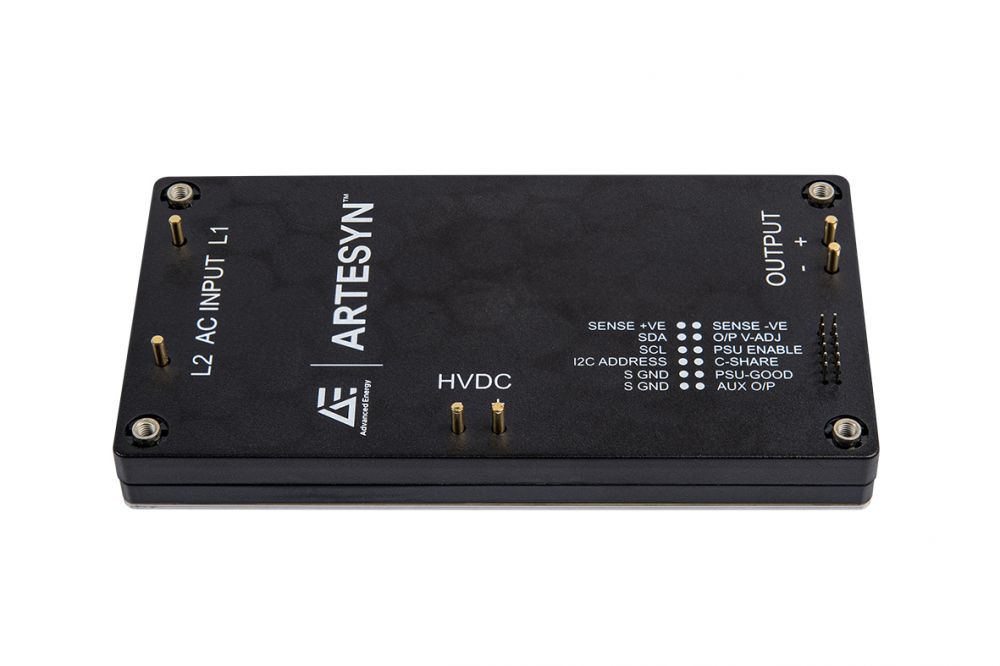

Advanced Energy’s Artesyn AIF42BAC-01N series full-brick module accepts a wide 90 to 264 VAC input. Rated at 504 W, the module has a high conversion efficiency of 93% typically and provides a nominal isolated output voltage of 12 VDC with a 10 V auxiliary output. Featuring an industry-standard 2.4 x 4.6 in fullbrick form factor and a height of only 0.55 in. This family of modules is particularly focused on providing contact-cooled applications such as I.P. sealed applications where the power converters are located inside the applications I.P. Sealed casing. The functions and features (such as internal inrush-limiting, active current-share, Auxiliary Output and PMBus) of this family have been provided to enable ease of use in applications with minimize external component requirements.


  • Input voltage 90 - 264Vac
  • Input voltage Frequency 47hz to 63hz
  • Output Noise 120mV pk-pk max (12V version)
  • Output voltage 12 Volts
  • Output current 42 Amps
  • Auxilary Output 10V at 250mA
  • Hold-up HVDC 380Vdc
  • Control Output voltage Adjust -20% to +10% Vout
  • Isolation 4000Vdc Input to Output
  • Isolation 2500Vdc Input to Baseplate
  • Isolation 100Vdc Output to Baseplate
  • Efficiency >91.5% low-line input
  • Parallel unit capability Up to 10 units
  • Thermal Derating 100% power at 100degC baseplate
  • Efficiency >93.5% High-line input


  • Input Inrush Internal Inrush limiting
  • Control PMBus interface
  • Control Output voltage sense
  • Control Active current share
  • Control PSU enable
  • Control PSU-Good signal


Ausgangsleistung (W): 500
Länge (Zoll): 4.6
Breite (Zoll): 2.4
Höhe (Zoll): 0.5
Montage Typ: BMP; Through Hole
Minimaler Ausgangsstrom (A): 0
Maximaler Ausgangsstrom (A): 42
Ausgangsspannungsbereich (V): 10.8V to 56.6V
Alle Spezifikationen Spezifikationen zusammenklappen

Lagerbestand prüfen

Modellnummer Min. Spannung (V) Max. Spannung (V) Stromstärke (A) Nennspannung (V) Anzahl der Ausgänge Proben Kaufen
500W 48V ACDC full brick
44 56.6 11 48 1 Kontakt Kaufen
500W 12V ACDC full brick
10.8 13.2 42 12 1 Kontakt Kaufen

Technische Dokumentation

Technische Videos


Universal PMBus GUI Software Package

The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
