1316A High Power RF Calorimeter
RF High-Power Calorimeter w/ Chiller, 10,000 W

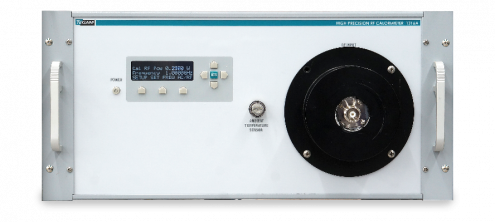

Advanced Energy's TEGAM model 1316 is a precision calorimeter that is capable of providing highly accurate RF power measurements up to 10,000 W in the 50 Hz to 500 MHz frequency range.

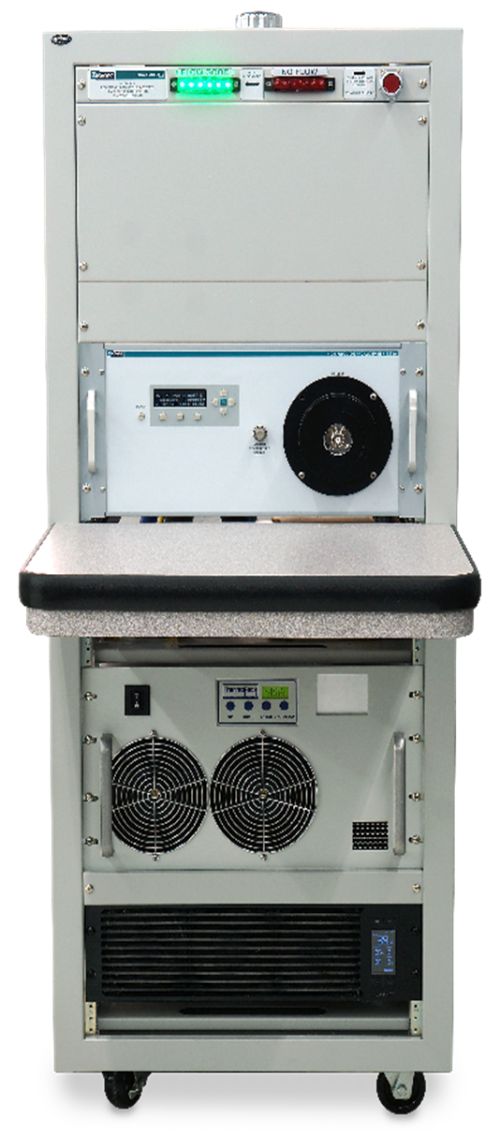

The TEGAM 1316 combines a calorimeter and chiller and is part of a larger overall system. When properly configured with an additional chiller, AC source, AC voltage standard, and ancillary equipment, the system enable precise measurement of RF power. TEGAM designs and offers these fully configured systems for ease of integration and use by our customers.
Our fully configured calorimeter systems self-calibrate with national lab traceability through an AC Power standard. These systems are designed to calibrate transfer standards, through devices, and terminating devices.
Eigenschaften
- 50 Hz to 500 MHz Frequency Range
- Up to 10,000 W input power
- Unmatched Accuracy for Commercial 10 kW Calorimeter
- National Lab Traceable through an AC Power Standard
Vorteile
- Enables calibration of transfer standards, through devices, and terminating devices.
- AC power standard traceability for ease of calibration
Spezifikationen
| Basic Accuracy: | 1.5 W + 0.3% Rdg |
|---|---|
| Connector Type: | HN- Female or 3- 1/8 |
| Frequency Range: | 50 Hz to 500 MHz |
| Impedance (nominal): | 50 Ohms |
| Power Range: | 10 W to 10 KW Connector Dependent |
| Reflection Magnitude (typical): | <0.025 at f < 100 MHz and <0.1 at f > 100 MHz |
