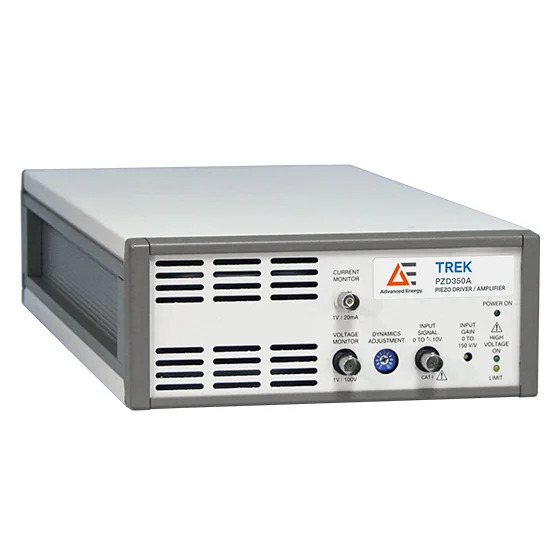

Trek PZD350A Series
Non-Inverting High Voltage Amplifier with Variable DC Gain, Output Voltage 0 to ±350 VDC or Peak AC
The piezo driver and amplifier Trek® PZD350A is ideal for piezoelectric driving and control, laser modulation, microelectromechanical systems (MEMS), and numerous other applications. It’s configured as a non-inverting amplifier with a variable DC gain, but an inverting amplifier configuration is also available. The Trek PZD350A amplifier features an all-solid-state design, high slew rates, and a four-quadrant active output. This output sinks or sources current into reactive or resistive loads throughout the output voltage range which is essential for achieving the accurate output responses and high slew rates demanded by reactive loads.
Eigenschaften
- Automatic power limit
- Dynamic adjustment
- Digitally enabled
- NIST-traceable calibration certificate provided with each unit
- DC-stable for programmable supply applications
Vorteile
- Control the gain, 0 to 150 V/V
- Drive capacitive loads with four-quadrant output
- Rely on ultra-accurate outputs thanks to low-output noise
- Save costs thanks to maintenance-free operation and an all-solid-state design
- Achieve high accuracy via a closed-loop system
Spezifikationen
| Ausgangsleistung (W): | 70 |
|---|---|
| Maximaler Ausgangsstrom (A): | ±0.2 |
| Anstiegsgeschwindigkeit (V/ms): | >550000 |
| Ausgangsstrombereich (mA): | 0 to ±200 |
| Ausgangsspannungsbereich (V): | 0 to ±350 |
Technische Dokumentation
Zubehör
Amplifier Selection Calculator
To help you select the appropriate Trek amplifier, we created this calculator. It uses peak-to-peak voltage to help calculate values associated with driving capacitive loads. If you have any difficulty with this software or would rather not do the download, please use the step-by-step calculator procedure.
Dienstleistungen
Calibration and Alignment
Advanced Energy has the tools and processes to ensure your equipment continues to meet its original specifications. Our products are calibrated at global AE service sites with proprietary technology designed to exceed industry standards.
