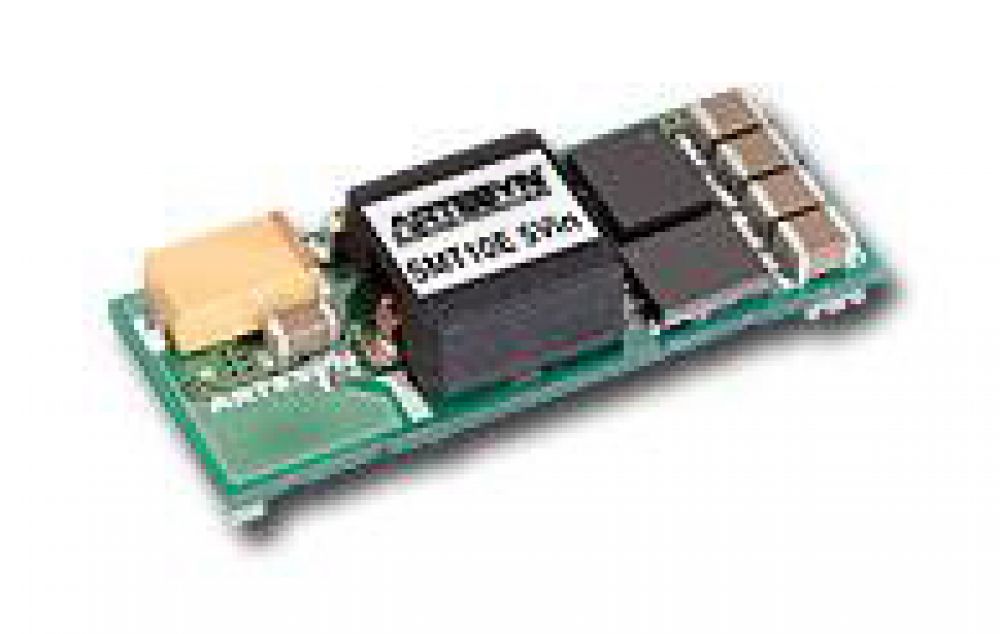

SMT10E Series

The SMT10E series of non-isolated DC-DC converters comprises five fixed output models offering voltages of 1.2 V, 1.5 V, 1.8 V, 2.5 V or 3.3 V, and one wide output trim model that can be adjusted over the range 0.8 to 3.63 VDC. All six models can deliver up to 10 A output current. The 3.3 V fixed output model accepts a 4.5 to 5.5 VDC input, while all other models accept a 3 to 5.5 VDC input. Depending on the particular model, SMT10E series converters offer output power ratings of to 36.3 W and conversions efficiencies as high as 96%. Standard features include remote On/Off, remote sense, and comprehensive protection against short-circuit and overtemperature conditions. Packaged as low-profile surface-mount modules, they have a 0.53 x 1.3 inch (13.5 x 33 mm) footprint and an installed height of only 0.32 inch (8.2mm).
