55 W (10 A) Non-Isolated DC-DC Converters

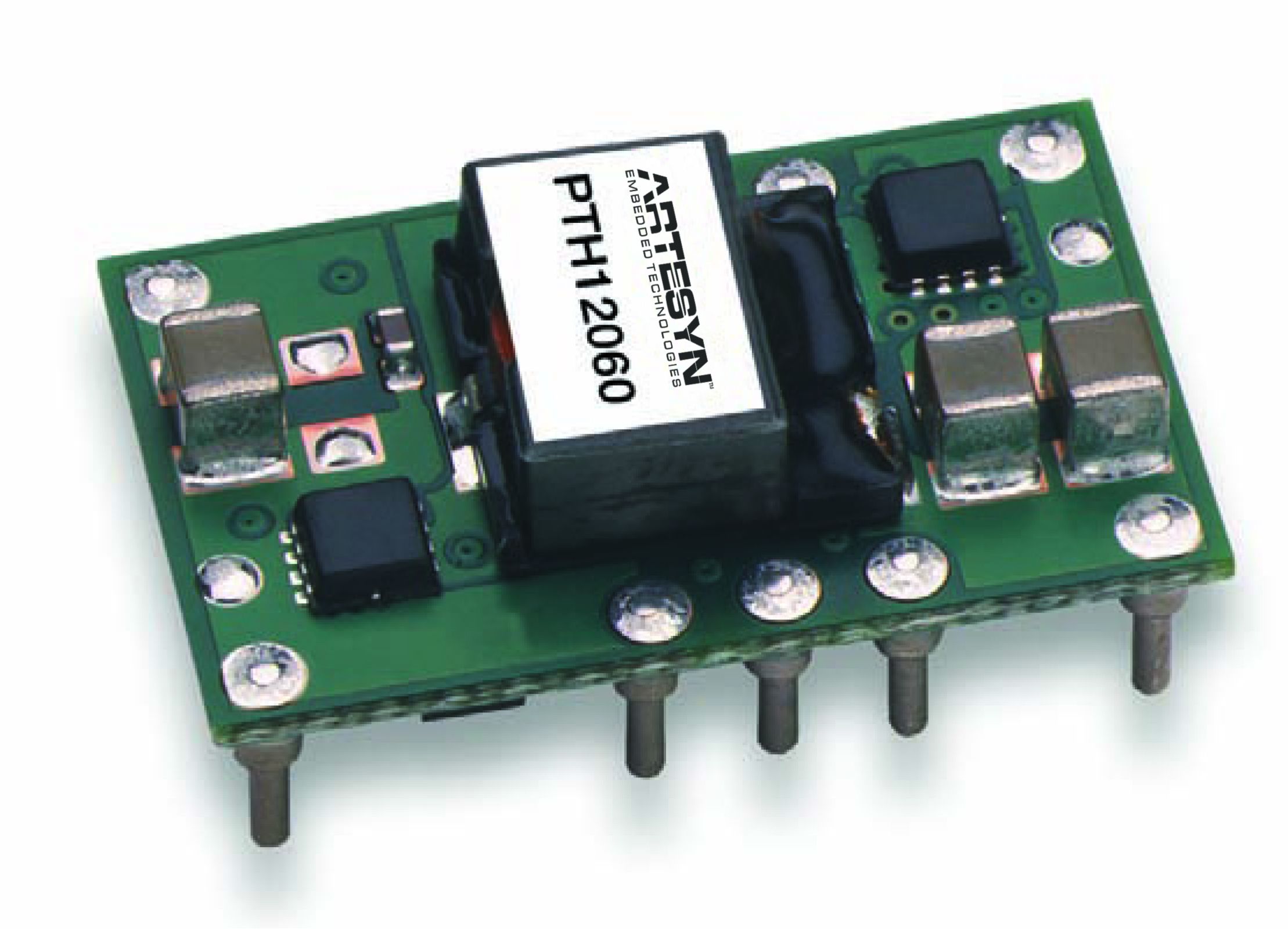

The PTH12060 series of non-isolated DC-DC converters complies with the Point-of-Load Alliance (POLA) standard. The converters offer some of the most advanced POL functions in the industry, including Auto-Track™ sequencing for controlled power-up/power-down of complex semiconductor devices such as DSPs, FPGAs and ASICs, and voltage margining. Standard features include pre-bias startup, input undervoltage lockout, remote On/Off and auto resetting short-circuit protection.

There are two models in the PTH12060 series of converters, both of which have an input voltage range of 10.8 to 13.2 VDC. One model offers an output voltage that can be trimmed from 0.8 to 1.8 VDC, the other has an output that can be trimmed from 1.2 to 5.5 VDC, enabling a broad diversity of semiconductor power needs to be satisfied. The 0.8 to 1.8 V output converter offers up to 88% efficiency while the higher output voltage model can achieve up to 94%. Both converters are rated at 55 W output power and can deliver up to 10 A. Available in through-hole horizontal mount and surface-mount versions, they have a small 0.62 x 0.99 inch (15.7 x 25.3 mm) footprint and an installed height of just 0.35 inch (9 mm).

Auto-Track™ is a trademark of Texas Instruments


  • 10 A output current
  • 12 V input voltage
  • Wide-output voltage adjust: 1.2 VDC to 5.5 VDC for suffix 'W' and 0.8 VDC to 1.8 VDC for suffix 'L'
  • Efficiencies up to 94%


  • Auto-track™ sequencing*
  • Margin up/down controls
  • Output ON/OFF inhibit
  • Output voltage sense
  • Point-of-Load-Alliance (POLA) compatible
  • Available RoHS compliant


Ausgangsleistung (W): 55
Länge (Zoll): 0.99
Breite (Zoll): 0.62
Höhe (Zoll): 0.35
Montage Typ: BMP; SMT &Through Hole
Minimaler Ausgangsstrom (A): 0
Maximaler Ausgangsstrom (A): 10
Ausgangsspannungsbereich (V): 0.8V to 5.5V
Alle Spezifikationen Spezifikationen zusammenklappen

Lagerbestand prüfen

Modellnummer Min. Spannung (V) Max. Spannung (V) Stromstärke (A) Nennspannung (V) Anzahl der Ausgänge Proben Kaufen
PTH12060L 0.8 1.8 10 0 1 Kontakt Kaufen
PTH12060W 1.2 5.5 10 0 1 Kontakt Kaufen
