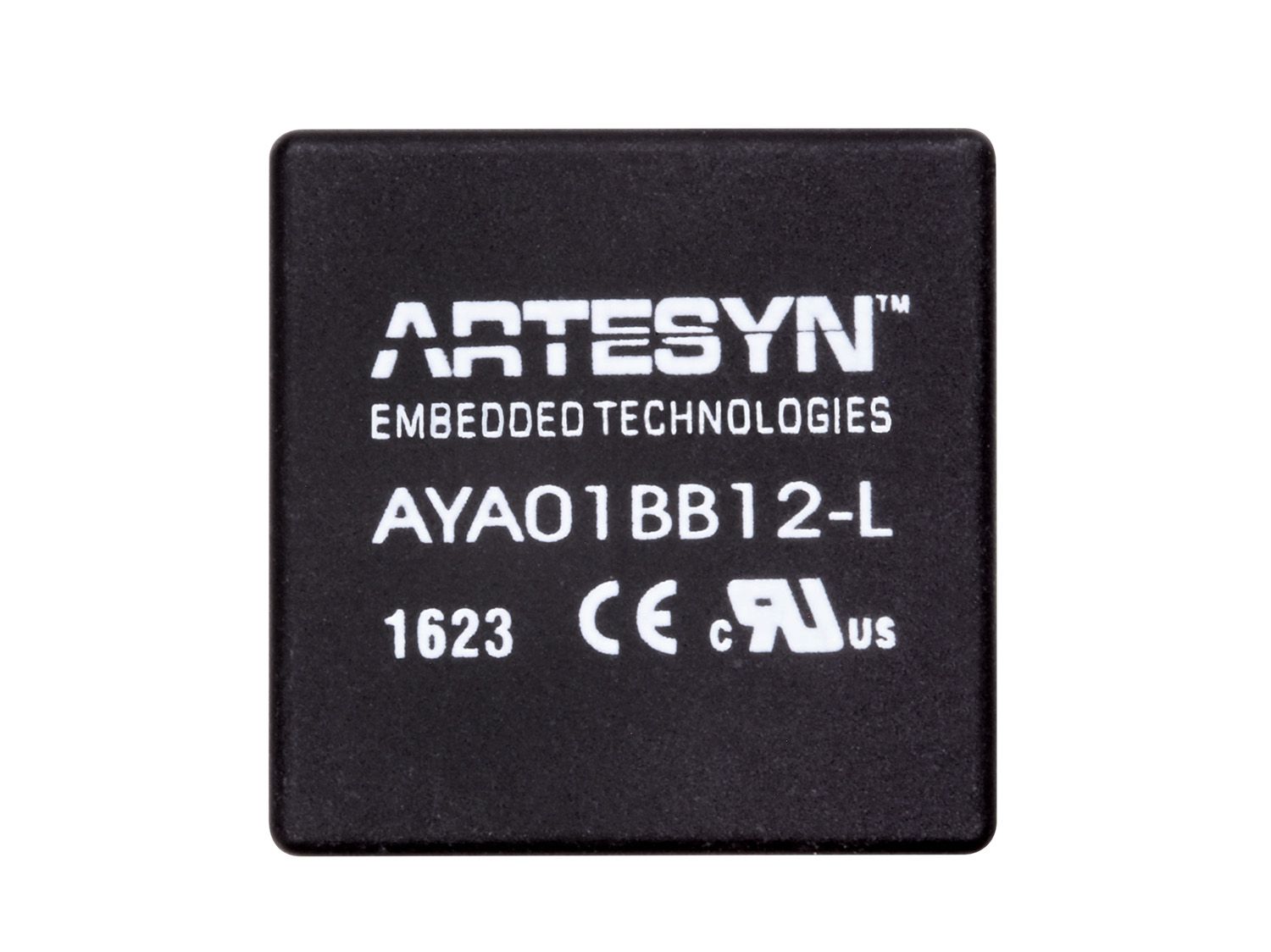

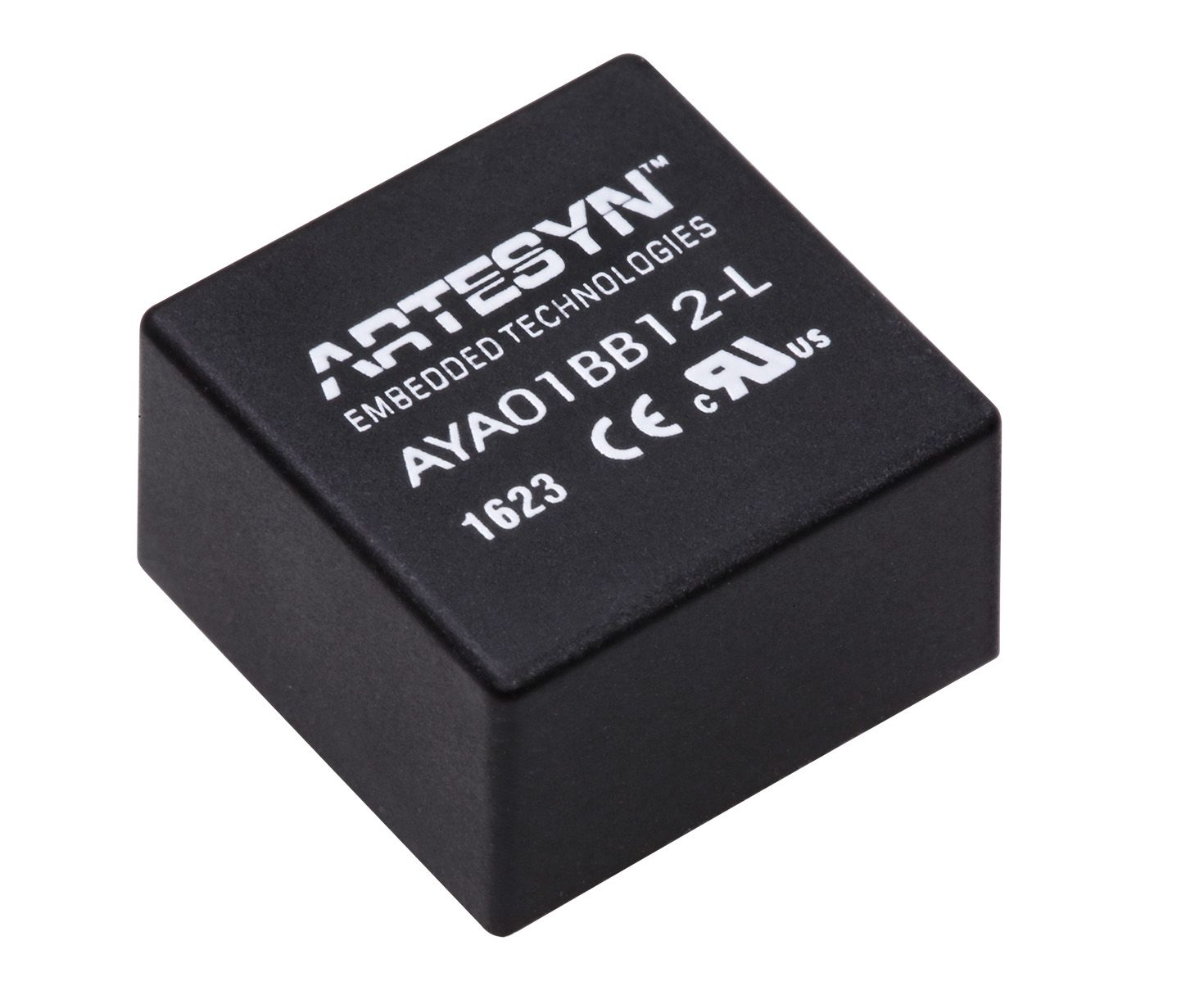

AYA 3 Watt Isolated DC-DC Converter Series
Active
Industrial DC-DC
The AYA series isolated industrial DC-DC converters are suitable for a diverse range of low-power applications, including data communication, telecommunication and computer peripheral equipment, industrial automation, and mobile battery-powered systems.

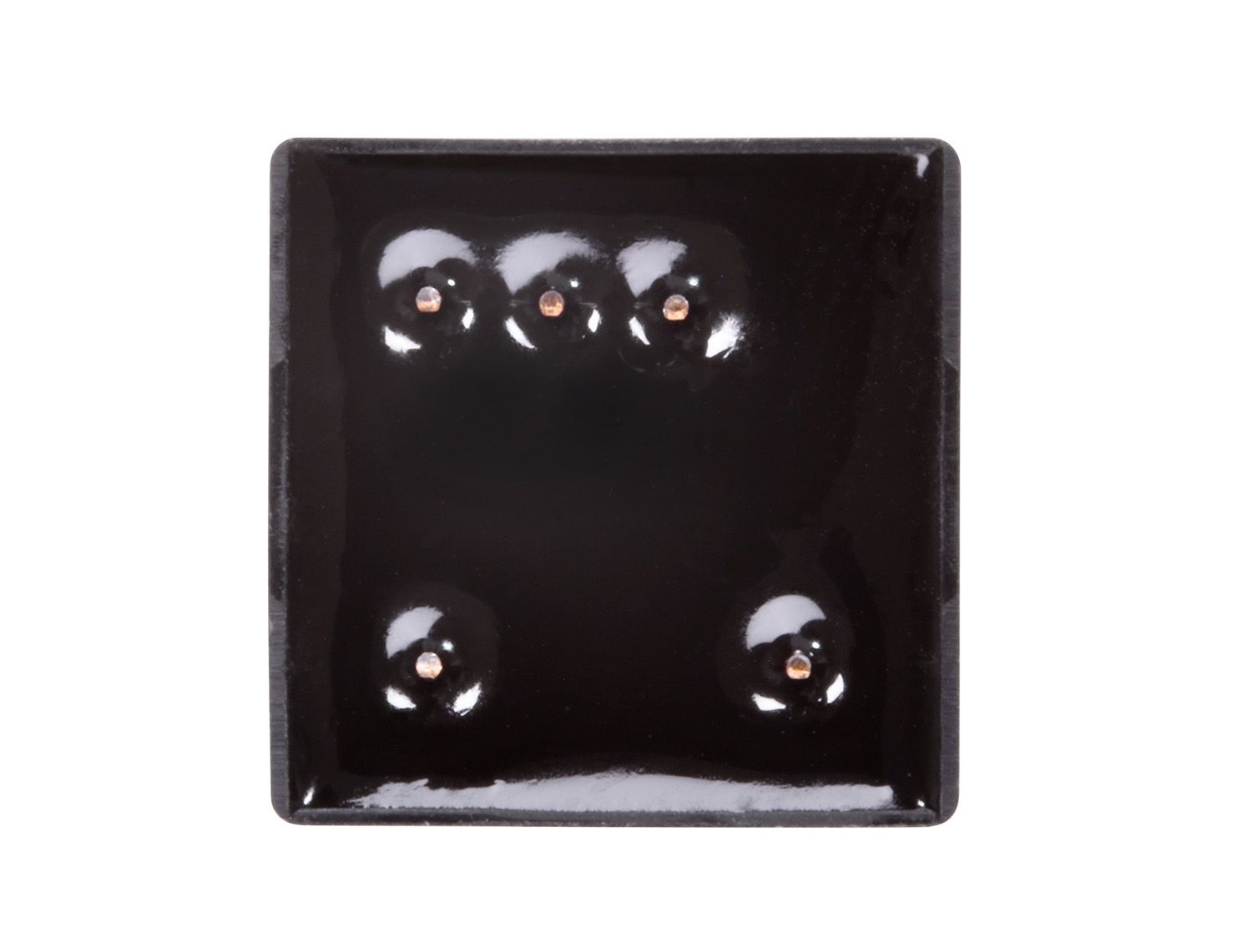

Fully encapsulated in an ultra-compact plastic case just 0.32 inch high, these 3 W converters operate at a temperature range of -40 to 85˚C (with derating) and provide efficiency of up to 80%. The converters switch at a fixed frequency, minimizing the need for external EMI filtering and complying with the EN 55022 class A and FCC level A standards for conducted noise.
Choose from 28 variants, all featuring wide input voltage (4.5 to 10 V, 9 to 18 V, 18 to 36 V, or 36 to 75 V) in single- or dual-output models offering voltages of 3.3 V, 5 V, 12 V, 15 V, or +5/-5 V, +12/-12 V, or +15/-15 V, respectively. The parts are available in a mini dual-in-line (for through-hole) or surface-mount package.
Fully encapsulated in an ultra-compact plastic case just 0.32 inch high, these 3 W converters operate at a temperature range of -40 to 85˚C (with derating) and provide efficiency of up to 80%. The converters switch at a fixed frequency, minimizing the need for external EMI filtering and complying with the EN 55022 class A and FCC level A standards for conducted noise.
Choose from 28 variants, all featuring wide input voltage (4.5 to 10 V, 9 to 18 V, 18 to 36 V, or 36 to 75 V) in single- or dual-output models offering voltages of 3.3 V, 5 V, 12 V, 15 V, or +5/-5 V, +12/-12 V, or +15/-15 V, respectively. The parts are available in a mini dual-in-line (for through-hole) or surface-mount package.
Eigenschaften
- Input voltage range 4.5V to 10V
- Input voltage range 9V to 18V
- Input voltage range 18V to 36V
- Input voltage range 36V to 75V
- Output voltage (Single) 3v3, 5v, 12v, 15v
- Output voltage (Dual) +/-5V, +/-12V, +/-15V
- Isolation voltage 1500Vdc
Vorteile
- Output voltage Single and Dual O/P versions
- Mechanical Fully potted
- Terminal Through Hole
Spezifikationen
| Ausgangsleistung (W): | 3 |
|---|---|
| Länge (Zoll): | 0.55 |
| Breite (Zoll): | 0.55 |
| Höhe (Zoll): | 0.31 |
| Montage Typ: | BMP; Through Hole |
| Minimaler Ausgangsstrom (A): | 0.1 |
| Maximaler Ausgangsstrom (A): | 0.6 |
| Ausgangsspannungsbereich (V): | -15V to 15V |
