Advanced energy’s global footprint helps ease customers’ tariff concerns. This series includes parts that are USMCA qualified.
SL Power™

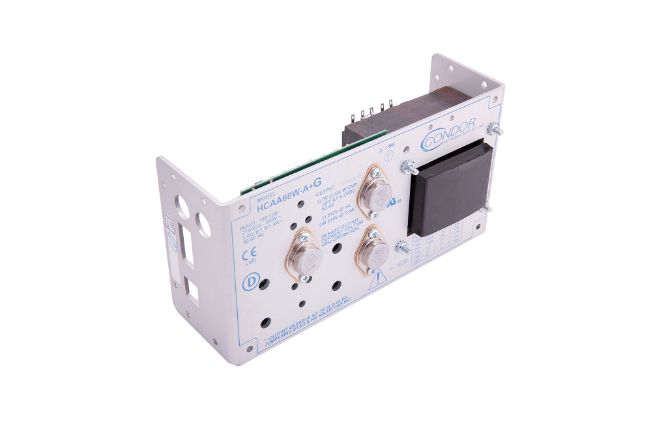

Linear - D Series
Active
Low Noise Linear Technology Power Supply
Advanced Energy’s SL Power linear series power supplies are single output models. The models feature commercial or medical safety approvals and accept a universal input of 100 to 240 VAC. These linear power supplies feature very little output ripple with 3 mV, and low regulation with 0.05% of the output voltages. The power supplies have optional overvoltage protection and short-circuit protection on all models.
Eigenschaften
- Medical leakage current does not exceed 10 µA
- MTBF 200,000+ hours per Mil Handbk 217D (most units)
- All electrolytic caps rated at 105ºC
Vorteile
- World-wide ac input ranges and safety standards
- Industry standard packages
- Burn-in with cycling; 3-year warranty
- Capacitors have highest CV & ripple current ratings
- Transformer insulation meets Class F (155ºC)
- Exceed FCC and CISPR22, Class B conducted emissions
- Approved to IEC62368-1 and IEC60601-1
Spezifikationen
| Ausgangsleistung (W): | 144 |
|---|---|
| Länge (Zoll): | 9.38 |
| Breite (Zoll): | 4.88 |
| Höhe (Zoll): | 2.75 |
| Montage Typ: | Embedded PSU |
| Minimaler Ausgangsstrom (A): | 0.8 |
| Maximaler Ausgangsstrom (A): | 12 |
| Ausgangsspannungsbereich (V): | 2 to 48V |
