SL Power™
NGB425 Series
Active
425 W Single Output Medical & Industrial Grade

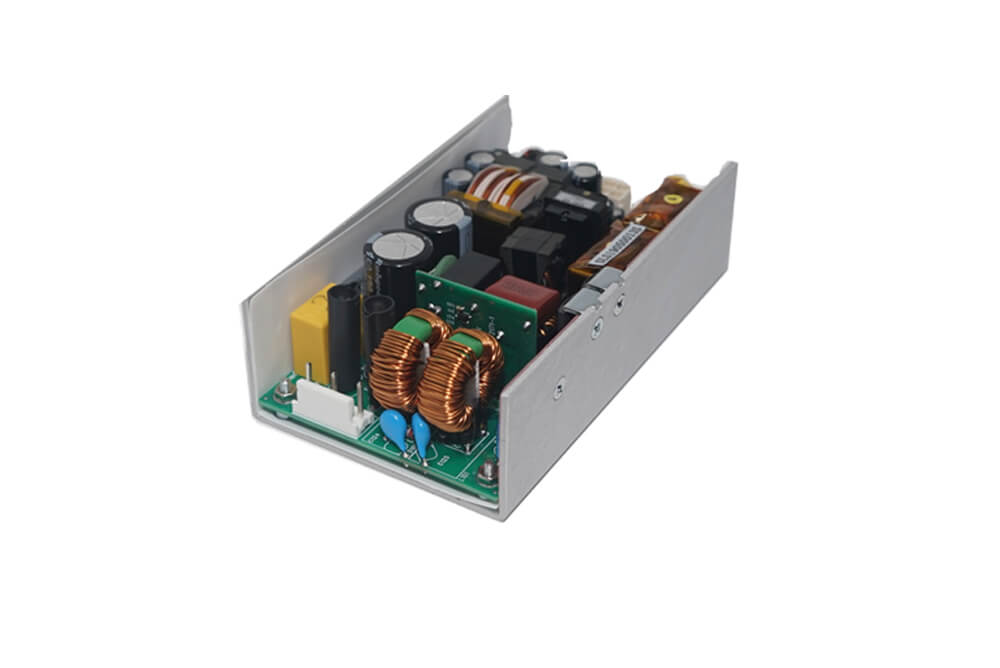

Advanced Energy’s SL Power NGB425 medically-approved AC-DC power supplies are available with a nominal main output of 12 V, 15 V, 24 V or 48 V. NGB425 power supplies provide up to 425 W of output power with air flow and provide industry leading convection power ratings. All models have output overvoltage, short circuit and overload protection and a 3 x 5 x 1.5 inch form factor.
This is a replacement for GU300 Series.
This is a replacement for GU300 Series.
Eigenschaften
- Output Power of 425 W with airflow, only derating to 270 W convection cooled
- 3" W x 5” L x 1.5” H Size Meets Heavy Industrial/IEC60601-1-2 4th Edition EMC Requirements
- Universal 85 to 264 VAC Input Range Less than 100 uA Leakage Current
Vorteile
- Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
- Meets Class B Emissions levels
- Class I and Class II Input versions available
- Greater than 10 years Electrolytic Capacitor Life
- 3 year warranty
Spezifikationen
| Ausgangsleistung (W): | 425 |
|---|---|
| Länge (Zoll): | 5 |
| Breite (Zoll): | 3 |
| Höhe (Zoll): | 1.5 |
| Montage Typ: | Embedded PSU |
| Minimaler Ausgangsstrom (A): | 8.75 |
| Maximaler Ausgangsstrom (A): | 30 |
| Ausgangsspannungsbereich (V): | 12V to 48V |
