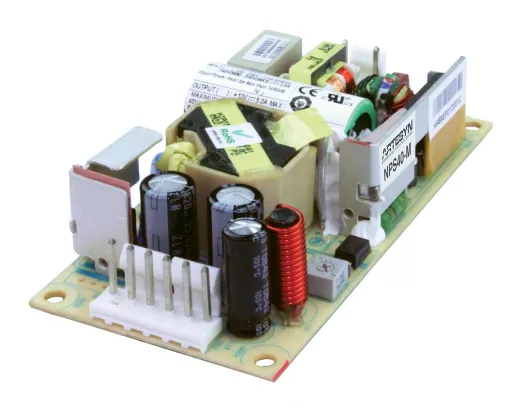

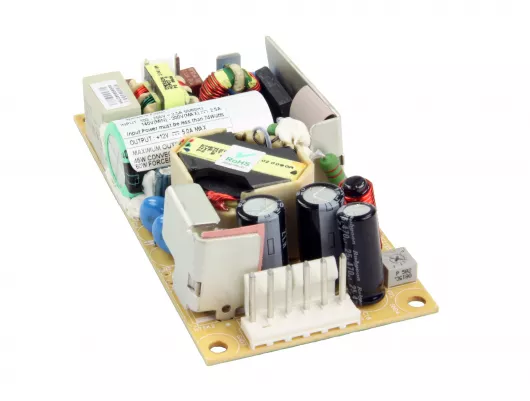

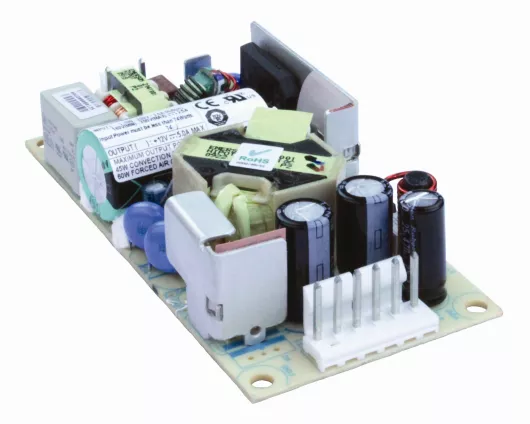

NPS40-M Series
Active
40 to 60 W AC-DC Medical Power Supplies
The NPS40-M series of open-frame AC-DC power supplies comprises five single output models, offering voltages of 5 V, 12 V, 15 V, 24 V or 48 VDC. All five models feature ITE and medical safety approvals and are equipped with dual AC fuses. The power supplies have a typical full load efficiency of 87% and a no-load power consumption of less than 300 mW. NPS40-M series power supplies are primarily designed for use in information technology equipment (ITE) and light industrial systems, as well as for equipment intended for non-patient contact and non-patient critical use in low power medical, dental and laboratory applications.
Eigenschaften
- Inrush current 50 A max, 230 VAC input, cold start @ 25°C
- Efficiency 87% typical at full load
- Frequency 47 - 440 Hz
- Safety ground leakage current 275 uA @ 50/60 Hz, 264 VAC input
- Input range 90-264 VAC, 120-300 VDC
- Hold-up time 10/20 ms @ 115/230 VAC input
- Remote Sense Compensates for 0.5 V lead drop
- Adjustment range ± 20% minimum on the main output
- Primary to Secondary 2x MOPP
Vorteile
- Overload protection Short circuit and case over load protected
- Built-in Class B EMI filter
- Remote sense
- EN61000-3-2 compliant
Spezifikationen
| Ausgangsleistung (W): | 60 |
|---|---|
| Länge (Zoll): | 4 |
| Breite (Zoll): | 2 |
| Höhe (Zoll): | 1 |
| Montage Typ: | Embedded PSU |
| Minimaler Ausgangsstrom (A): | 0 |
| Maximaler Ausgangsstrom (A): | 11 |
| Ausgangsspannungsbereich (V): | 4.5V to 57.6V |
