artesyn™.

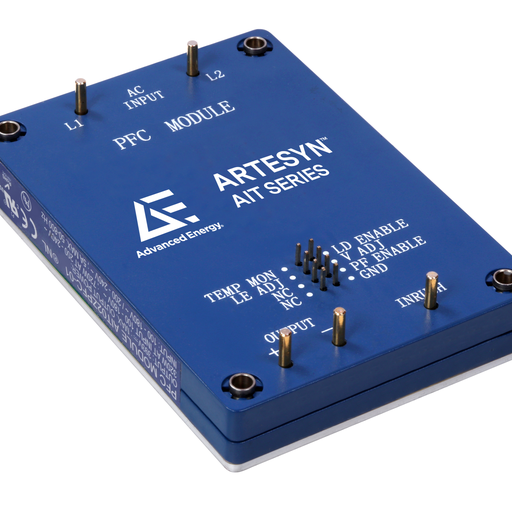

AIT02ZPFC Series
Active
Three Quarter Brick PFC Modules
The AIT02ZPFC series three-quarter-brick power factor correction module accepts a wide 85 to 264 VAC input and presents a unity power factor. It accommodates AC supply frequencies of 50 Hz, 60 Hz or 360 to 800 Hz. Rated at 720 W, the module offers a conversion efficiency of up to 93% and provides a typical output voltage of 393 VDC.
Based on an encapsulated design that incorporates a thermal baseplate, the AIT02ZPFC series PFC module accommodates a baseplate operating temperature range of -20 to 100˚C and can start up from temperatures as low as -40˚C. The module has an industry-standard 2.4 x 3.5 inch (61 x 88.9 mm) footprint and an installed height of only 0.54 inch (13.9 mm).
<!--td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}--> Advanced Energy's AIT02ZPFC series PFC modules comply with the RTCA-DO-160 avionics standard and the IEC1000-3-2 harmonics emission standard.
Based on an encapsulated design that incorporates a thermal baseplate, the AIT02ZPFC series PFC module accommodates a baseplate operating temperature range of -20 to 100˚C and can start up from temperatures as low as -40˚C. The module has an industry-standard 2.4 x 3.5 inch (61 x 88.9 mm) footprint and an installed height of only 0.54 inch (13.9 mm).
<!--td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}--> Advanced Energy's AIT02ZPFC series PFC modules comply with the RTCA-DO-160 avionics standard and the IEC1000-3-2 harmonics emission standard.
Eigenschaften
- 100°C baseplate operating temperature
- High efficiency up to 93%
- IEC100032 compliance at 50Hz and 800Hz input
- TRCADO160D harmonic compliant at 115Vac input full load
- Up to 720 W output power
Vorteile
- Enable output to control DCDC Converter
- Internal active switch bypassing external inrush current
- Negative enable function
- Unity power factor
- Universal input voltage and frequency range
Spezifikationen
| Ausgangsleistung (W): | 720 |
|---|---|
| Länge (Zoll): | 3.5 |
| Breite (Zoll): | 2.4 |
| Höhe (Zoll): | 0.55 |
| Montage Typ: | BMP; Through Hole |
| Minimaler Ausgangsstrom (A): | 0 |
| Maximaler Ausgangsstrom (A): | 2.08 |
| Ausgangsspannungsbereich (V): | 393V to 393V |
