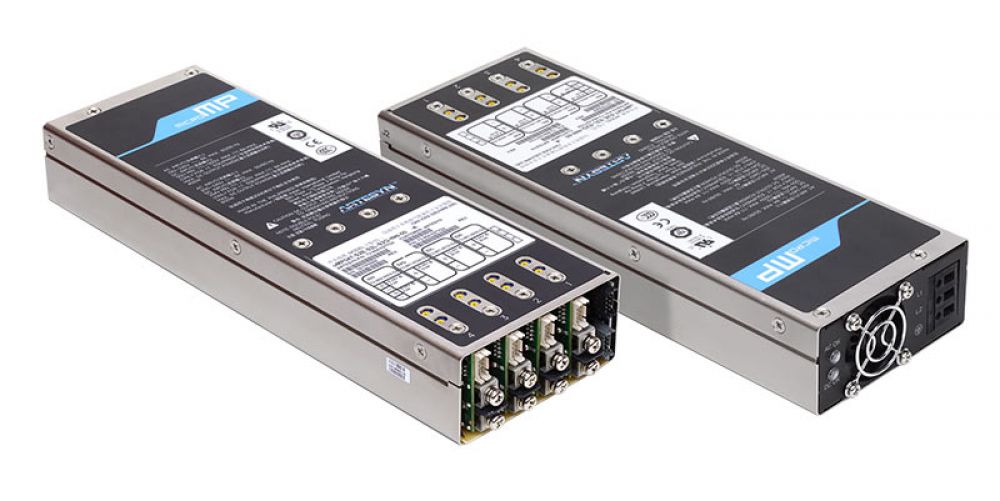

uMP09 Gen II

Active

550 to 1000 W Configurable AC-DC Power Supplies

The uMP9 GEN II series AC-DC configurable power supplies with a power density of 19.8 W/in3 provide four slots that accept intelligent DC-DC converter modules. It is capable of delivering up to 1000 W in a 256.9 mm x 88.9 mm x 40 mm package, with up to 8 isolated outputs using single or dual output modules ranging from 0.9  to 60 V. Output modules can be connected in parallel for higher currents. ​

​The uMP09 GEN II series features PMBus® monitoring and control of input functions with a downloadable GUI from the website. IEC, terminal block or barrier strip connections are available, along with optional hold-up module and conformal coating. The series has full industrial EN/UL62368-1 and medical IEC/EN60601-1(3rd and 4th Edition) safety approvals.

Eigenschaften

  • Up to 91.5% efficiency ​
  • Low noise intelligent fan​
  • Output margining, remote sense and current sharing​
  • Military STD Shock (40G) / Vibration (> 4gRMS)​
  • MTBF >350,000 hours​
  • Three-year warranty

Vorteile

  • Configure a custom solution comparable to the cost an  off-the-shelf product​
  • Fast deployment with user- and field-configurability
  • Confidence in reliability from the #1 configurable power supply manufacturer

Spezifikationen

Länge (Zoll): 10.11
Breite (Zoll): 3.5
Höhe (Zoll): 1.57
Ausgangsspannungsbereich (V): 0.9 to 240
Maximale Ausgangsleistung (W): 1000
Minimum Input Voltage (V): 90
Maximale Eingangsspannung (V): 264

Accessories Stock Check

Hold-Up Module 1-slot 20mSed
uMP Blank Panel

Einführung in ConfigPro

Der revolutionäre Online-Stromkonfigurator von Advanced Energy

Mit über 3 Millionen konfigurierbaren Stromversorgungskombinationen optimiert dieser Stromlösungsalgorithmus die Kosten und führt Sie zur idealen Lösung für die konfigurierbaren Stromversorgungsfamilien MP, IMP, IVS und MICROMP (UMP).
Los geht's

Vergleichen Sie

Model uMP09 Gen II Coolx1000 iMP4 XFN Xgen 4-slot
Länge (Zoll) 10.11 10 10 10.55 10.24
Breite (Zoll) 3.5 6.5 5 5 3.5
Höhe (Zoll) 1.57 1.54 2.5 1.59 1.59
Ausgangsspannungsbereich (V) 0.9 to 240 1 to 615 1.8 to 300 1 to 232 1.15 to 232
Maximale Ausgangsleistung (W) 1000 1000 1100 1000 750
Minimum Input Voltage (V) 90 85 85 85 85
Maximale Eingangsspannung (V) 264 264 264 264 264
