CSU2400AT-3-3M0 M-CRPS
Active

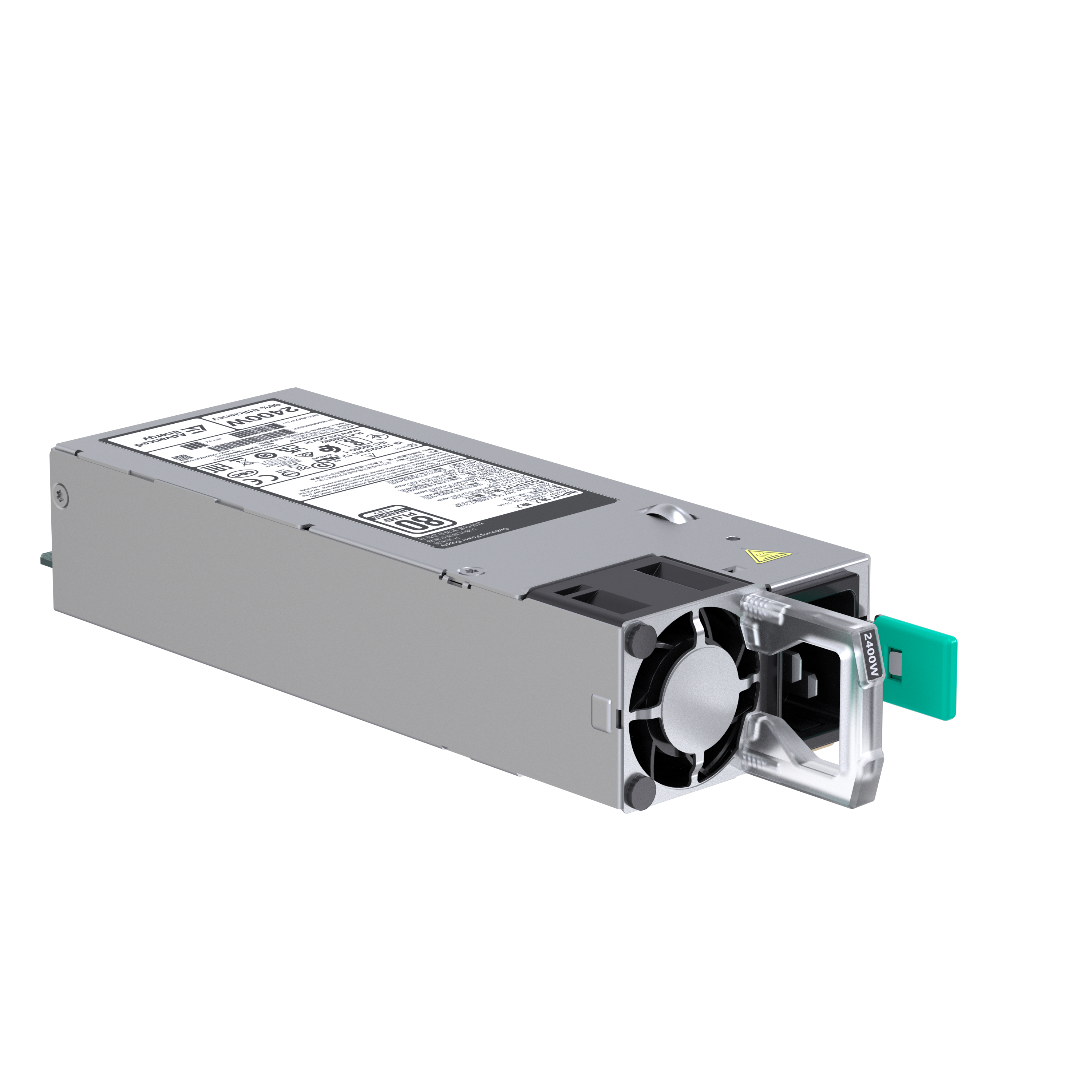

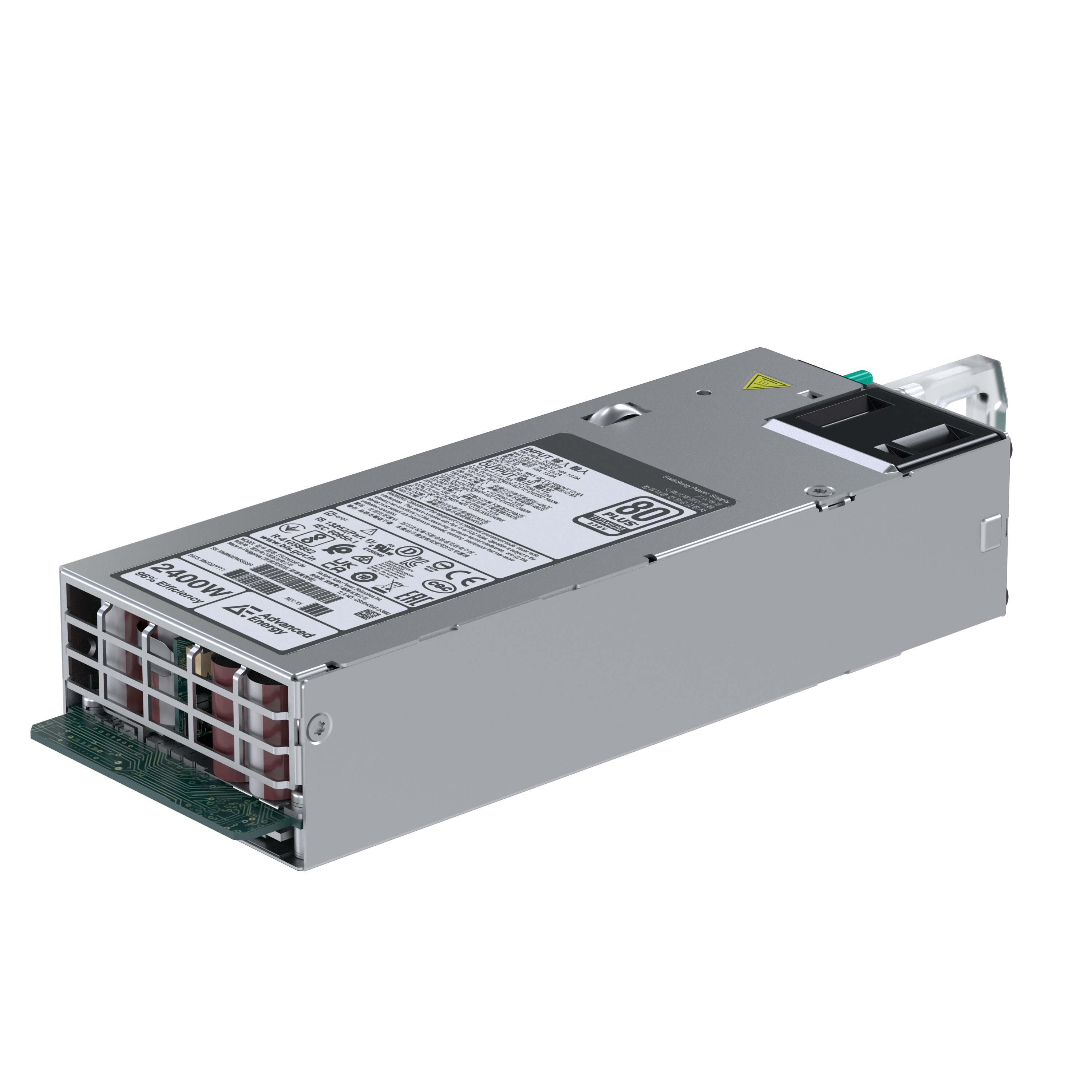

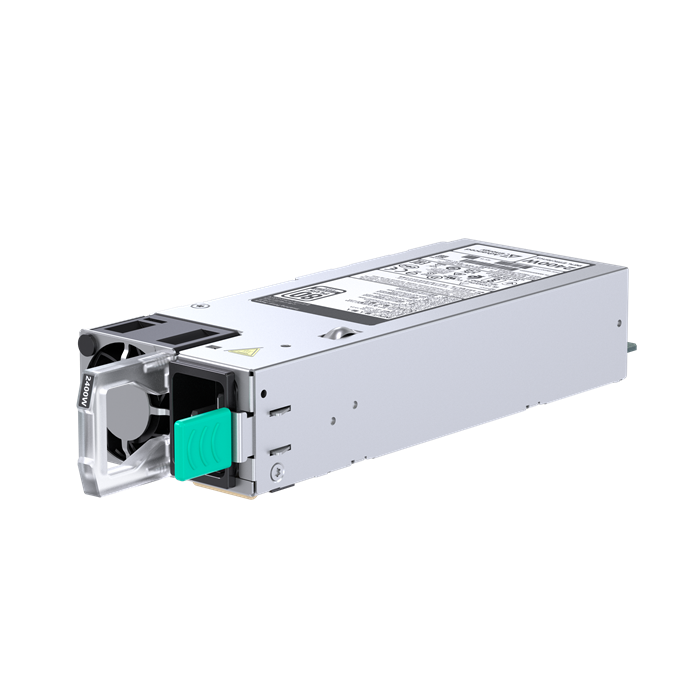

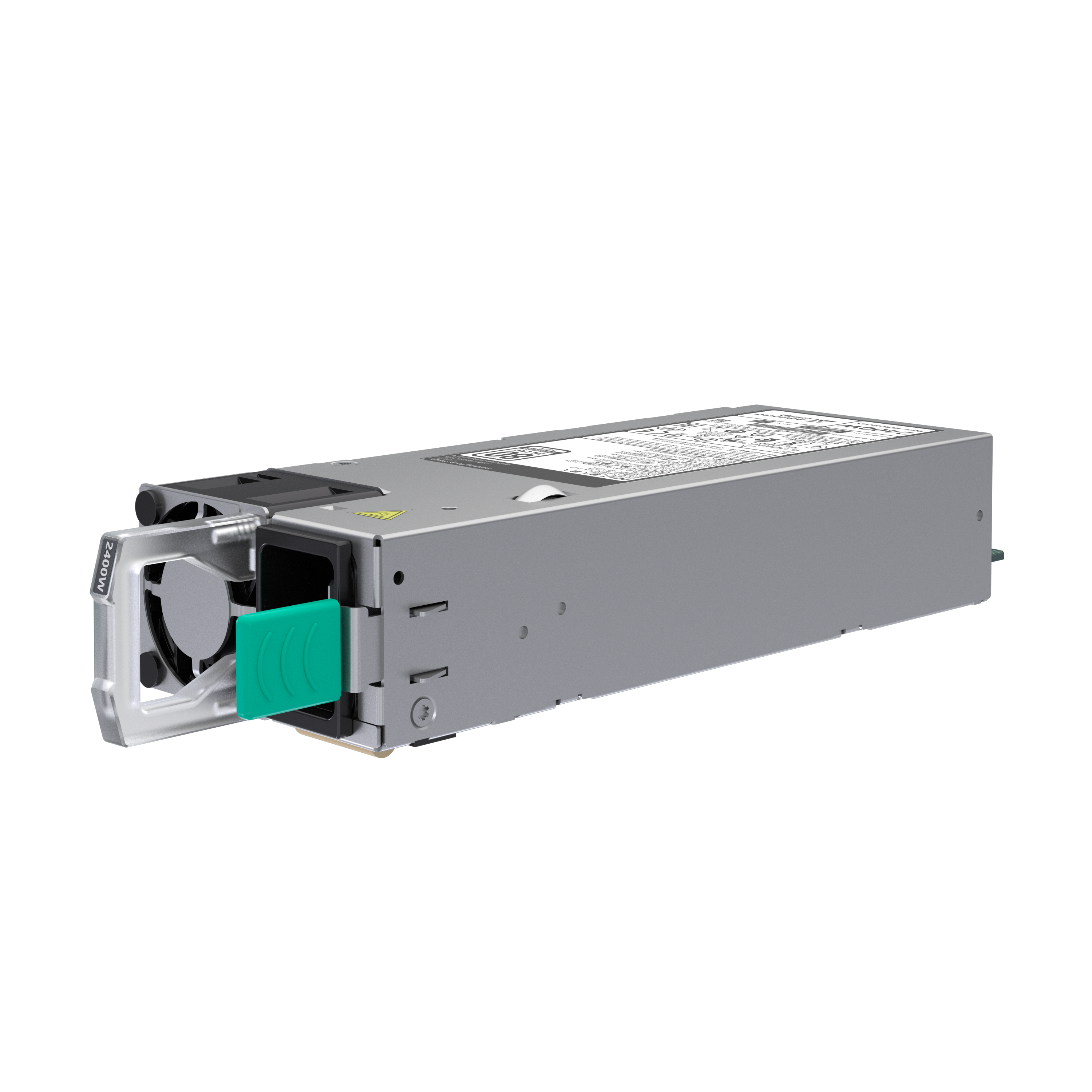

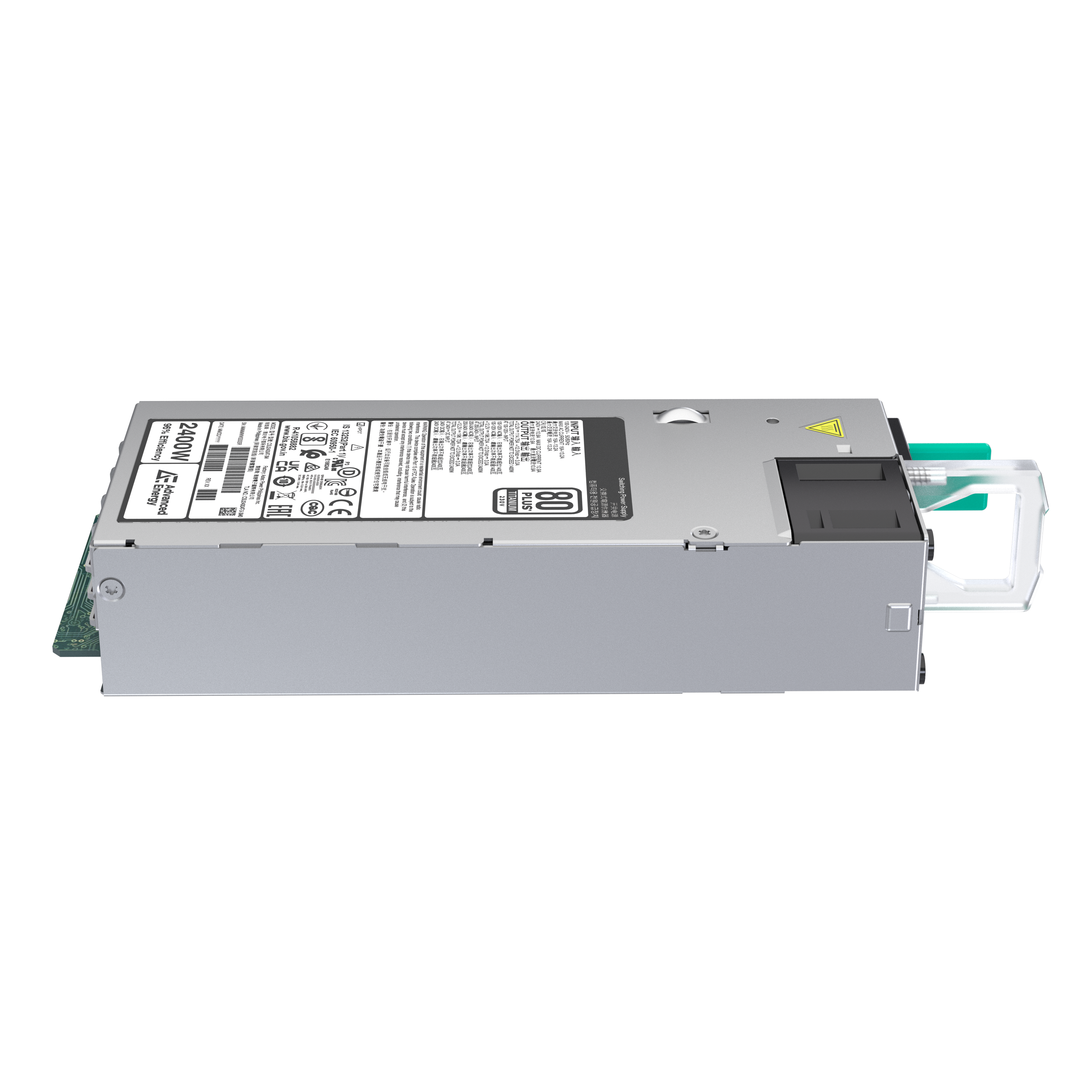

2400 W M-CRPS-Type Titanium Power Supply
The 2.4 kW CSU2400AT-3-xMx Titanium Efficiency certified power supply offers a peak efficiency of 96% and delivers up to 196.7 A. The PSU features an input range of 90-127 Vac, 180 to 264 Vac, and 180 to 264 VDC. The main output range is 11.4 to 12.8 VDC that can feed downstream DC-DC converters in distributed power architectures (DPA). Housed in a 1U high rack-mount enclosure measuring just 2.89 x 7.28 inches (73.5 x 185 mm), the supply’s short, narrow form factor conforms to the Modular Common Redundant Power Supply (M-CRPS) standard and frees up system space. Active current sharing allows paralleling without additional components.
The CSU2400AT-3-3M0 is digitally controlled via an integral I2C interface using Advanced Energy’s universal PMBus® graphical user interface.
The CSU2400AT-3-3M0 is digitally controlled via an integral I2C interface using Advanced Energy’s universal PMBus® graphical user interface.
Eigenschaften
- Input Range at low line, high line, and high voltage DC
- Input Frequency 47 - 63 Hz
- Hold-up Time 11 ms
- Power Factor >0.98 at 50% load
- Main Output Voltage 12.2V at 196.7A
- Standby Output Voltage 12.0V at 3.5A
- Redundant mode operation
- Field upgradable firmware
- Load Sharing Active load sharing for parallel function
- PMBus monitoring and reporting
- FW security
Vorteile
- Input voltage flexiblity for world-wide deployment
- Reduces electricity bill due to high efficiency and high power factor performance
- Small form factor saves space for system core functions
- PMBus support provided reporting, monitoring, and control functions for sysytem power management
- Field upgradeable feature reduces mean time to repair and system down time
- Secure FW
Spezifikationen
| Ausgangsleistung (W): | 2400 |
|---|---|
| Länge (Zoll): | 7.28 |
| Breite (Zoll): | 2.89 |
| Höhe (Zoll): | 1.51 |
| Montage Typ: | Hotpluggable |
| Minimaler Ausgangsstrom (A): | 0 |
| Maximaler Ausgangsstrom (A): | 196.7 |
| Ausgangsspannungsbereich (V): | 12.2 |
