SL Power™
ME20 Series
Active

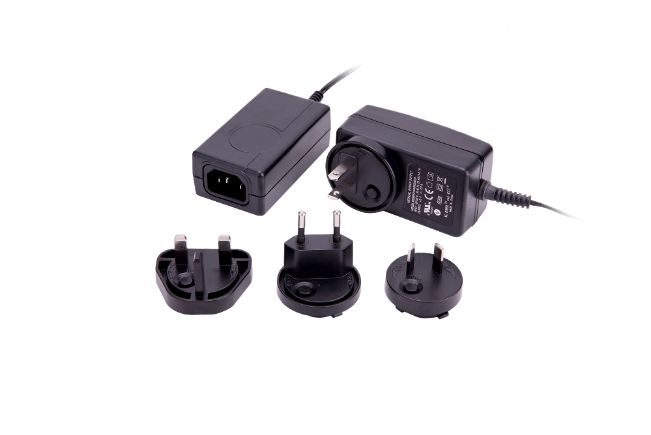

20 W Single Output External Power Adapter Medical Grade
Advanced Energy’s SL Power ME20 series of desktop and wall-plug AC-DC external power adapter comprises nine output models. All models feature medical safety approvals and accept a universal input of 90 to 264 VAC. ME20 series power adapters provide up to 20 W of output power with IP22 rated enclosure and are ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.
Eigenschaften
- Up to 20 W of AC-DC Power
- Universal Input 90 to 264 VAC Input Range
- >1,000,000 Hours MTBF
Vorteile
- A high performance power supply designed for Medical applications
- Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option
- Great EMI, EMC, and noise performance ensures easy integration into the end equipment
- Meets DoE Efficiency Level VI Requirements
- Meets UL/EN/IEC60601-1-2, 4th edition for EMC
- Approved to EN/IEC/UL60601-1, 3rd edition
- Isolation levels which satisfy the 2 MOPP requirements
- Desktop and Wall-Plug versions
- Meets EN55011/CISPR11, FCC Part 15.109 Class B Conducted & Radiated Emissions
- E-cap life of >10 years
- 3 Year Warranty
- IP22 Rated Enclosure
Spezifikationen
| Ausgangsleistung (W): | 20 |
|---|---|
| Länge (Zoll): | 3.31 |
| Breite (Zoll): | 1.85 |
| Höhe (Zoll): | 1.27 |
| Montage Typ: | External Adapter |
| Minimaler Ausgangsstrom (A): | 0.42 |
| Maximaler Ausgangsstrom (A): | 3 |
| Ausgangsspannungsbereich (V): | 5V to 48V |
