XFN

Active

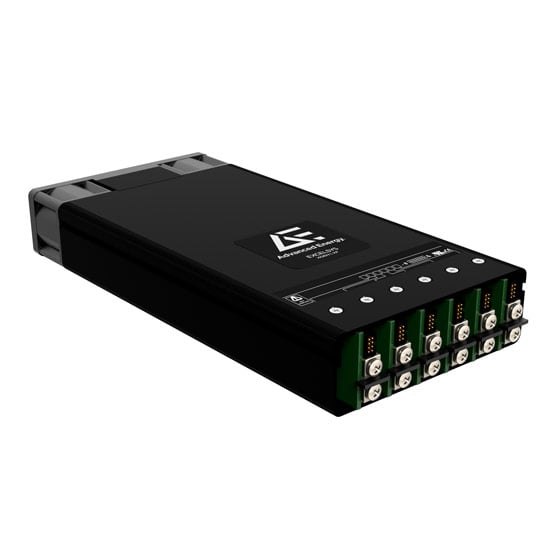

Up to 400 W Configurable AC-DC Power Supplies

The XFA series AC-DC configurable power supplies provide six slots that accept intelligent DC-DC converter modules. It is capable of delivering up to 400 W in a 268 mm x 127 mm x 40.4 mm package, with up to 12 isolated outputs using single or dual powerMod output modules ranging from 1  to 58 V. Outputs can be parallel connected for higher currents and series connected for higher voltages up to 348 VDC.​

​The XFN series has full industrial IEC/EN60950 and EN/UL62368-1 safety approvals and is SEMI F47 compliant. Product options include low leakage current (<150 uA), IEC or cable input connector, reverse fan and conformal coating.

Eigenschaften

  • 90% efficiency​
  • Operating temperature: -40 to 70°C ​
  • Conformal coating​
  • MIL-STD-810G certified (shock and vibration)​
  • MIL-STD-461F (EMC) characterized

Vorteile

  • Ideal for harsh environments​
  • Fast deployment: configurable in less than 5 minutes​
  • Flexible plug-and-play  architecture allows users to instantly configure custom power solutions​
  • Confidence in reliability from the #1 configurable power supply manufacturer

Spezifikationen

Länge (Zoll): 10.55
Breite (Zoll): 5
Höhe (Zoll): 1.59
Ausgangsspannungsbereich (V): 1 to 232
Maximale Ausgangsleistung (W): 1000
Minimum Input Voltage (V): 85
Maximale Eingangsspannung (V): 264

Accessories Stock Check

XE1
Aktiv, Vorrätig
IEC to Screw adaptor
XP1
Aktiv, Vorrätig
Parallel Links
XS1
Aktiv, Vorrätig
Series Links
Z165
Aktiv, Vorrätig
Side Mountig Clip Xgen/UltiMod
Z744
Aktiv, Vorrätig
DIN Rail Bracket

Technische Dokumentation

Vergleichen Sie

Model XFN XFC uMP09 Gen II Coolx1000 uMP10 Gen II
Länge (Zoll) 10.55 10.55 10.11 10 10.11
Breite (Zoll) 5 5 3.5 6.5 5
Höhe (Zoll) 1.59 1.59 1.57 1.54 1.57
Ausgangsspannungsbereich (V) 1 to 232 1 to 232 0.9 to 240 1 to 615 0.9 to 500
Maximale Ausgangsleistung (W) 1000 1000 1000 1000 1200
Minimum Input Voltage (V) 85 85 90 85 85
Maximale Eingangsspannung (V) 264 264 264 264 264
