artesyn™.

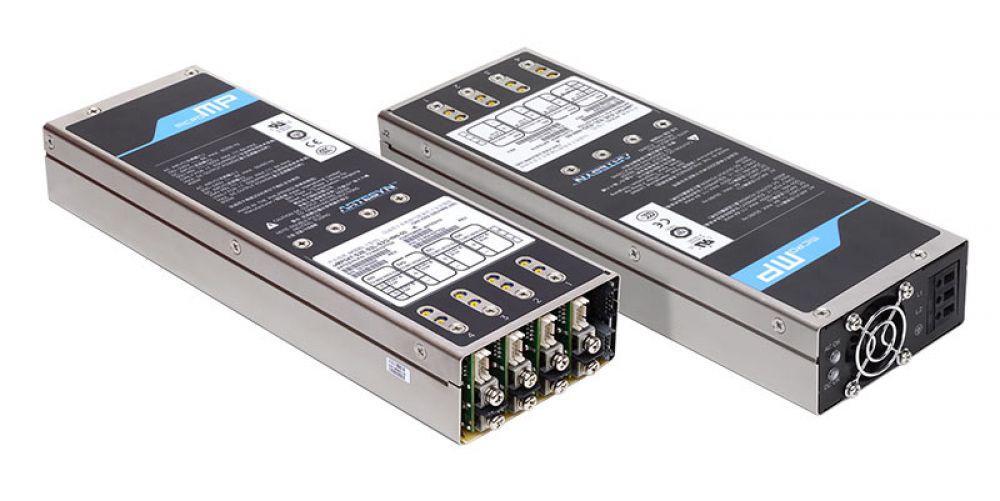

uMP04 Gen II
Active
400 to 600 W Configurable AC-DC Power Supplies
The uMP4 GEN II series AC-DC configurable power supplies with a power density of 10.8 W/in3 provide four slots that accept intelligent DC-DC converter modules. It is capable of delivering up to 600 W in a 256.9 mm x 88.9 mm x 40 mm package, with up to 8 isolated outputs using single or dual output modules ranging from 0.9 to 60 V. Output modules can be connected in parallel for higher currents.
The u0MP4 GEN II series features PMBus® monitoring and control of input functions with a downloadable GUI from the website. IEC, terminal block or barrier strip connections are available, along with optional hold-up module and conformal coating. The series has full industrial EN/UL62368-1 and medical IEC/EN60601-1(3rd and 4th Edition) safety approvals.
The u0MP4 GEN II series features PMBus® monitoring and control of input functions with a downloadable GUI from the website. IEC, terminal block or barrier strip connections are available, along with optional hold-up module and conformal coating. The series has full industrial EN/UL62368-1 and medical IEC/EN60601-1(3rd and 4th Edition) safety approvals.
Eigenschaften
- Up to 91.5% efficiency
- Low noise intelligent fan
- Output margining, remote sense and current sharing
- Military STD Shock (40G) / Vibration (> 4gRMS)
- MTBF >350,000 hours
- Three-year warranty
Vorteile
- Configure a custom solution comparable to the cost an off-the-shelf product
- Fast deployment with user- and field-configurability
- Confidence in reliability from the #1 configurable power supply manufacturer
Spezifikationen
| Länge (Zoll): | 10.11 |
|---|---|
| Breite (Zoll): | 3.5 |
| Höhe (Zoll): | 1.57 |
| Ausgangsspannungsbereich (V): | 0.9 to 240 |
| Maximale Ausgangsleistung (W): | 600 |
| Minimum Input Voltage (V): | 85 |
| Maximale Eingangsspannung (V): | 264 |
Accessories Stock Check
Einführung in ConfigPro
Der revolutionäre Online-Stromkonfigurator von Advanced Energy
Mit über 3 Millionen konfigurierbaren Stromversorgungskombinationen optimiert dieser Stromlösungsalgorithmus die Kosten und führt Sie zur idealen Lösung für die konfigurierbaren Stromversorgungsfamilien MP, IMP, IVS und MICROMP (UMP).
Los geht's
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
Vergleichen Sie
| Model | uMP04 Gen II | Coolx600 | Ultimod UX4 | Xgen 4-slot | XFB |
|---|---|---|---|---|---|
| Länge (Zoll) | 10.11 | 8.5 | 10.23 | 10.24 | 10.55 |
| Breite (Zoll) | 3.5 | 4.5 | 3.5 | 3.5 | 5 |
| Höhe (Zoll) | 1.57 | 1.54 | 1.59 | 1.59 | 1.59 |
| Ausgangsspannungsbereich (V) | 0.9 to 240 | 1 to 232 | 1.15 to 232 | 1.15 to 232 | 1 to 232 |
| Maximale Ausgangsleistung (W) | 600 | 600 | 600 | 750 | 700 |
| Minimum Input Voltage (V) | 85 | 85 | 85 | 85 | 85 |
| Maximale Eingangsspannung (V) | 264 | 264 | 264 | 264 | 264 |
