Coolx1000
Active
Up to 1000 W Configurable, Fanless AC-DC Power Supplies

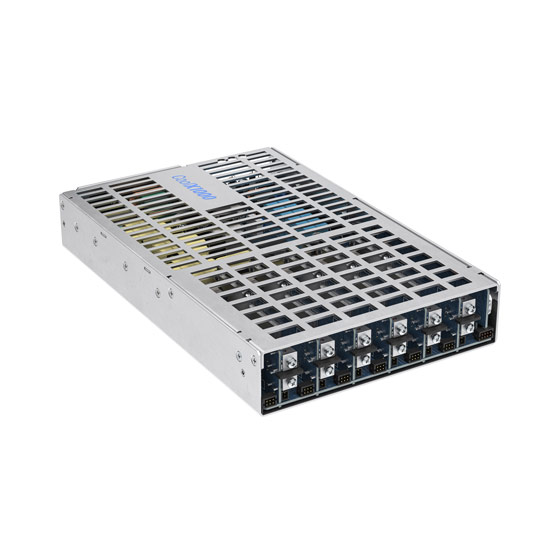

The Excelsys CoolX®1000 fanless, convection-cooled series is a configurable AC-DC power supply providing up to 1000 W in a compact U-channel, 254 x 165 x 39.1 mm design. Its fanless design and lack of base-plate cooling requirements help eliminate acoustic noise, making it a smart choice for scientific, medical, and vibration-sensitive applications. It offers extreme flexibility with analog and digital communications (PMBus®) for performance monitoring and control.
The series offers two base models. The CX10S complies with the IEC60950 (second edition) for industrial applications and IEC62368-1 for audio/video, information and communication technology. The CX10M carries the IEC60601-1 (third edition) and IEC60601-1-2 (fourth edition, EMC) for medical applications. The CoolX1000 can be populated with up to six CoolMods, providing up to twelve isolated DC outputs that range from 1.0 to 58 V. Outputs can be parallel connected for higher currents and series connected for higher voltages up to 615 VDC.
New CoolX-G option allows customers and safety agencies to carry out the full 4kVAC and 5.6Kvdc primary to secondary isolation test on the complete power supply, exactly as it will be used and installed in their system with no modifications required.
The series offers two base models. The CX10S complies with the IEC60950 (second edition) for industrial applications and IEC62368-1 for audio/video, information and communication technology. The CX10M carries the IEC60601-1 (third edition) and IEC60601-1-2 (fourth edition, EMC) for medical applications. The CoolX1000 can be populated with up to six CoolMods, providing up to twelve isolated DC outputs that range from 1.0 to 58 V. Outputs can be parallel connected for higher currents and series connected for higher voltages up to 615 VDC.
New CoolX-G option allows customers and safety agencies to carry out the full 4kVAC and 5.6Kvdc primary to secondary isolation test on the complete power supply, exactly as it will be used and installed in their system with no modifications required.
Eigenschaften
- 93% efficiency
- No fans, acoustic noise, or vibrations
- Safety approved to 5000 m altitude
- MTBF > 400,000 hours
- Five-year warranty
Vorteile
- Higher power density consumes less physical space
- Intelligent digital power provides maximum flexibility with analog and digital PMBus® control
- Fast deployment with user- and field-configurability
- Confidence in Reliability from the #1 configurable power supply manufacturer
Spezifikationen
| Länge (Zoll): | 10 |
|---|---|
| Breite (Zoll): | 6.5 |
| Höhe (Zoll): | 1.54 |
| Ausgangsspannungsbereich (V): | 1 to 615 |
| Maximale Ausgangsleistung (W): | 1000 |
| Minimum Input Voltage (V): | 85 |
| Maximale Eingangsspannung (V): | 264 |
Technische Dokumentation
Product Information Documents
New
Guides & Manuals
Updated
Engineering Resources
Updated
Insights & Studies
Updated
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
Vergleichen Sie

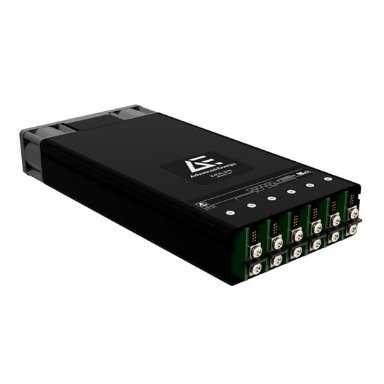

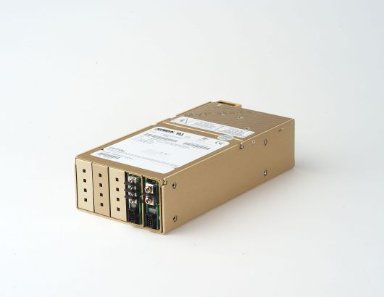

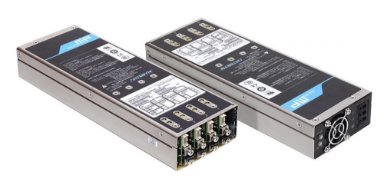

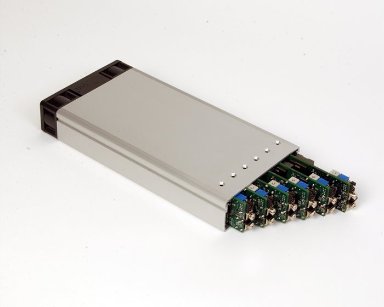

| Model | Coolx1000 | Ultimod UX6 | iMP4 | uMP09 Gen II | XFN |
|---|---|---|---|---|---|
| Länge (Zoll) | 10 | 10.23 | 10 | 10.11 | 10.55 |
| Breite (Zoll) | 6.5 | 5 | 5 | 3.5 | 5 |
| Höhe (Zoll) | 1.54 | 1.59 | 2.5 | 1.57 | 1.59 |
| Ausgangsspannungsbereich (V) | 1 to 615 | 1.15 to 348 | 1.8 to 300 | 0.9 to 240 | 1 to 232 |
| Maximale Ausgangsleistung (W) | 1000 | 1200 | 1100 | 1000 | 1000 |
| Minimum Input Voltage (V) | 85 | 85 | 85 | 90 | 85 |
| Maximale Eingangsspannung (V) | 264 | 264 | 264 | 264 | 264 |
