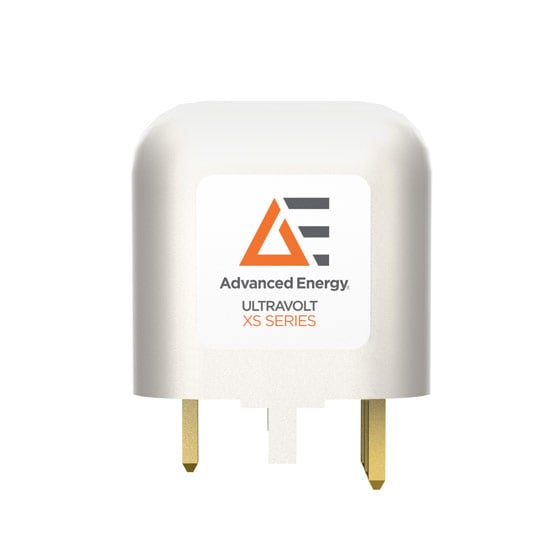

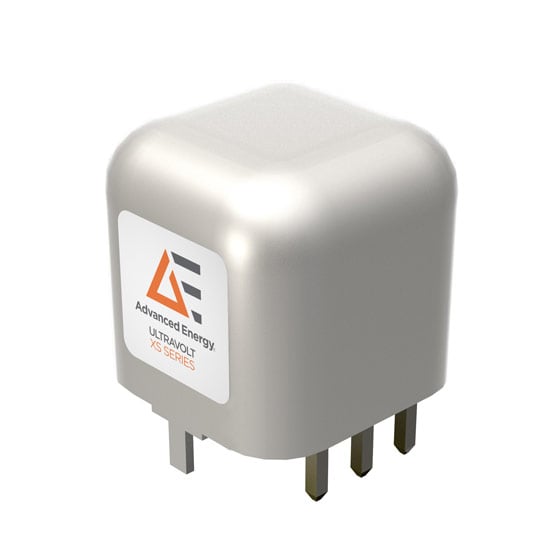

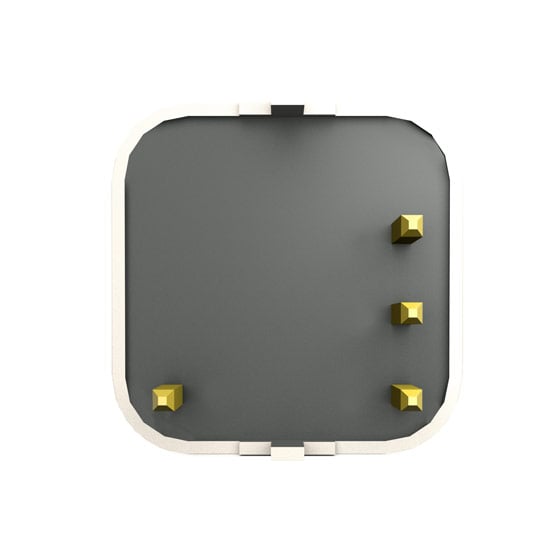

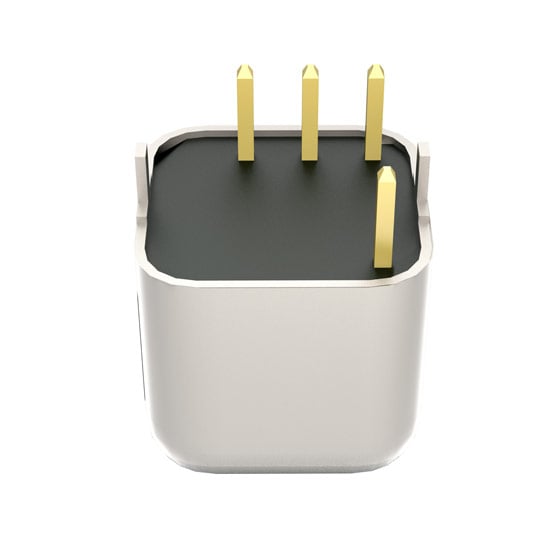

XS Series
Active
Micro-Size, Regulated DC-DC High Voltage Supplies
Our XS series is the smallest regulated DC-DC high voltage power supply. Designed for applications that require bias voltage ranging from 0 to 100 V. Only 1.3 cm3 (0.081 in3) and 5 g (0.17 oz), this module is ideal for applications where portability, weight, and space are at a premium. From a 5 VDC input, the XS series provides 0 to 100 VDC of single-output voltage, and up to 0.1 W (100 mW) of power. Available in positive or negative output polarities. Control voltage output with overcurrent protection and 0 to 2.5 VDC analog interface.
특징
- Small, lightweight, PCB-mountable package (1.3 cm3; 5 g)
- Output ripple < 100 ppm, with Temperature Coefficient < 50 ppm/⁰C
- Analog interface with output voltage control
- Integrated overcurrent protection
- Tin-plated metal enclosure
혜택
- Meet design requirements for size and weight
- Deliver better performance and temperature stability than proportional-control power supplies
- Simplify control using board-level signals (0 to 2.5 VDC)
- Increase power subsystem robustness and reliability
- Protect against external RF and EMI noise
사양
출력 전력(W): | 0 to 0.1 |
---|---|
길이(인치): | 0.43 |
너비(인치): | 0.42 |
높이(인치): | 0.42 |
마운팅 유형: | Through Hole, Surface Mount |
최대 출력 전류(A): | 0.0001 |
출력 전압 범위(V): | 0 to 100 |
최소 출력 전력(W): | 0 |
