OLS10K Series

Active

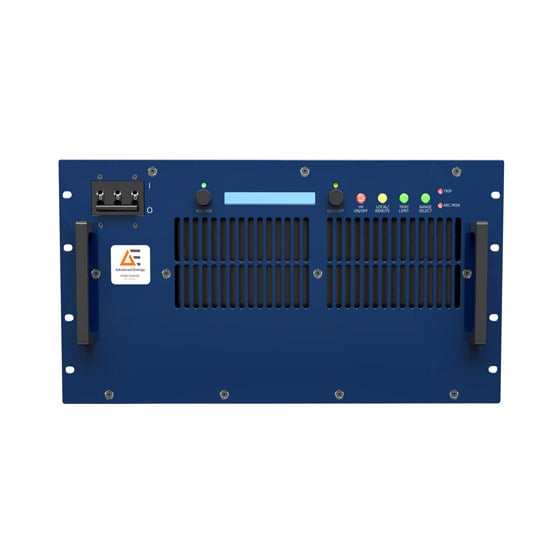

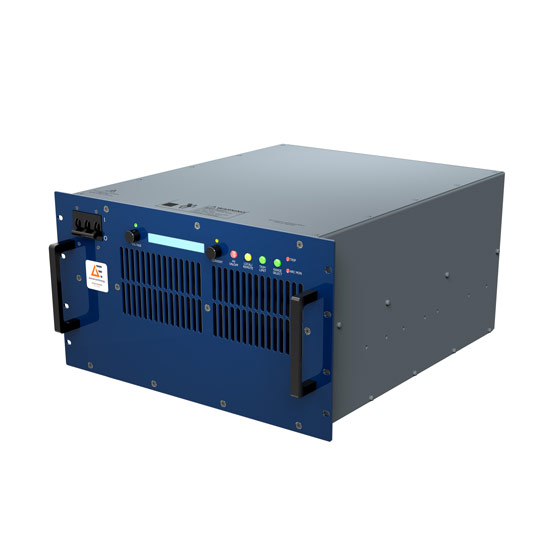

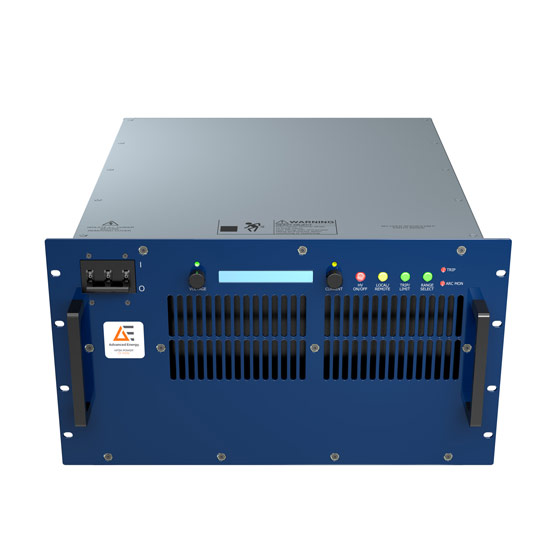

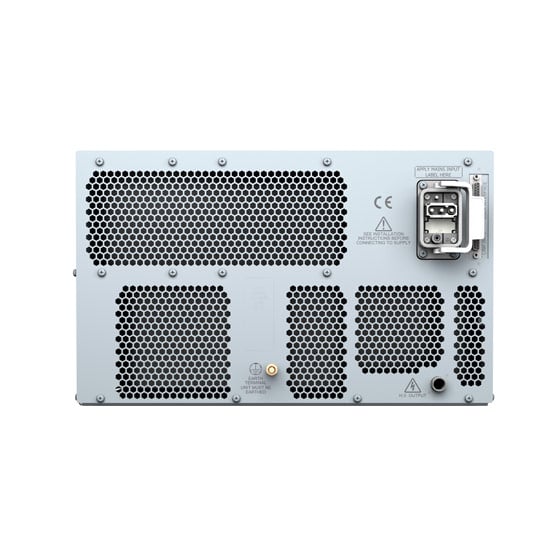

10 kW AC-to-HVDC Power Supplies Built for 24 x 7 Processes

Advanced Energy’s top-selling OLS10K series offers exceptionally high packing densities for high voltage power supplies, giving 169 W per liter, 2.7 W per inch3. When close-mounted in a standard equipment rack, the 6U construction allows operation at full power, which creates significant rack space savings in large systems. The OLS10K series features the Arc Count and Extinguish (ACE) system. The system prevents damage in managing systems where load arcing is endemic and allows normal operation to continue. For 10 kW applications, the OLS10K is an ideal choice, with numerous voltage and current combinations for custom requirements.

*Minimum order quantities apply, contact us to learn more.

특징

  • Custom derivatives available upon request
  • High power density — 10 kW in 6U rack-mounted chassis
  • Unique Arc Count and Extinguish (ACE) system for managing load arcing
  • Parallel connected power supply option enables 20 to 100 kW max output power
  • Efficient and reliable operation

혜택

  • Enable significant rack space savings
  • Reduce maintenance and safety risks with self-protecting arcing system
  • Customize output power for unique application needs
  • Ideally solve for 24 x7 production processes; improve reliability and performance are paramount
  • Select only needed high voltage capabilities; reduce costs

사양

출력 전력(W): 10000
리플(ppm): <500
최대 출력 전류(A): 10
출력 전류 범위(mA): Up to 10,000
출력 전압 범위(V): 100000

기술 문서

기술 동영상

비교

Model OLS10K Series OLS10KD Series OLH10K Series
출력 전력(W) 10000 10000 10000
리플(ppm) <500 <500 <1000
출력 전압 범위(V) 100000 1000 to 100000 60000 to 300000
