AEQ Series

Active

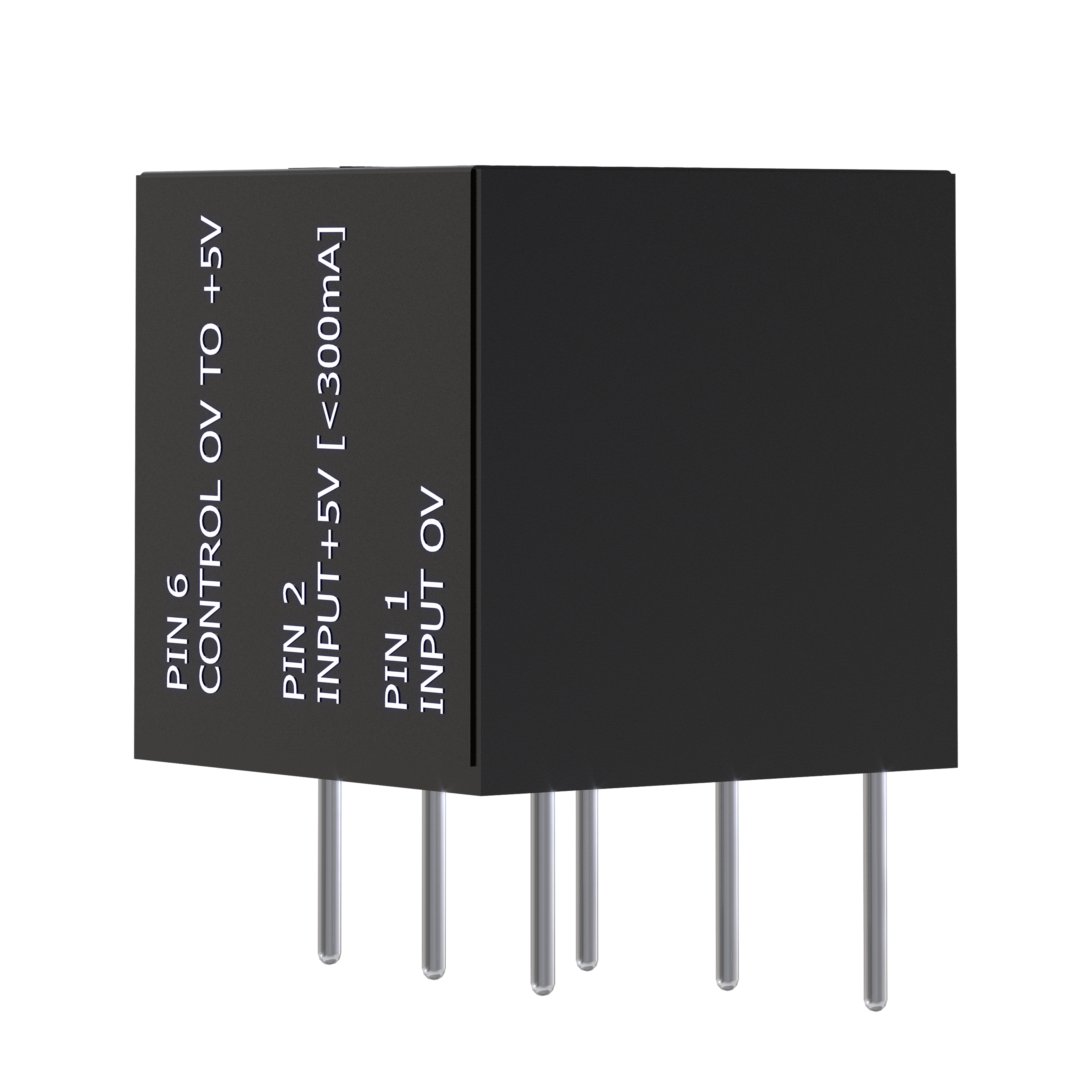

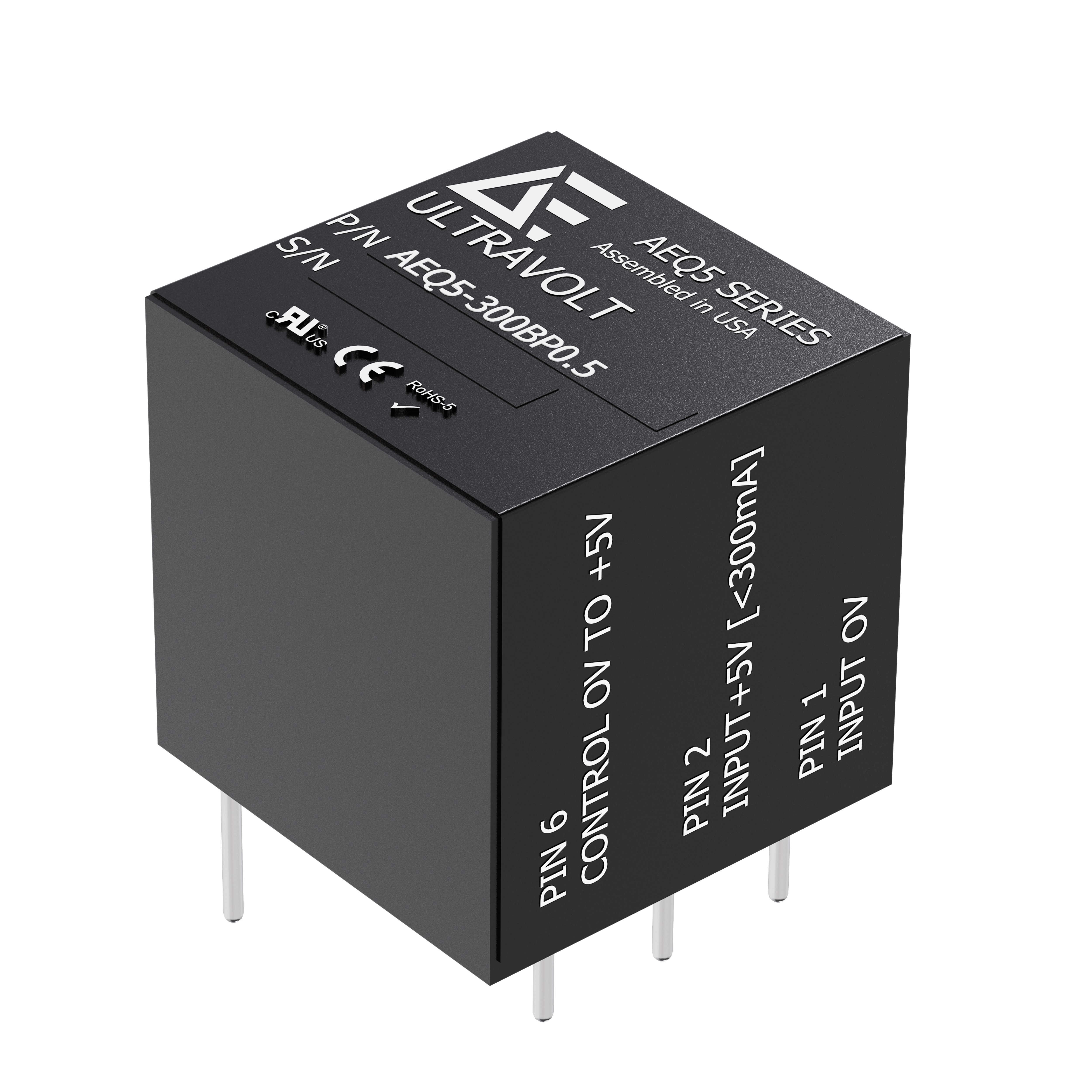

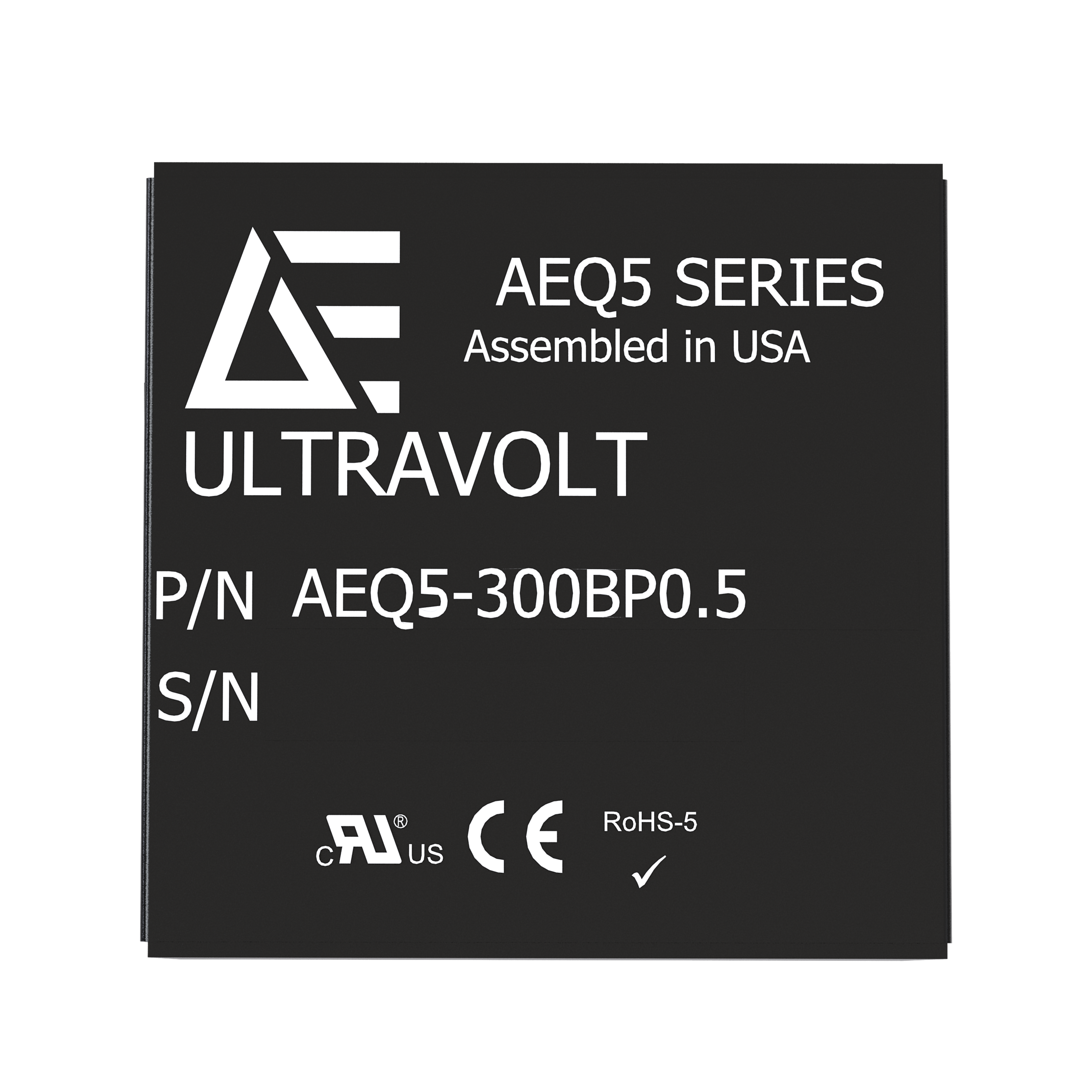

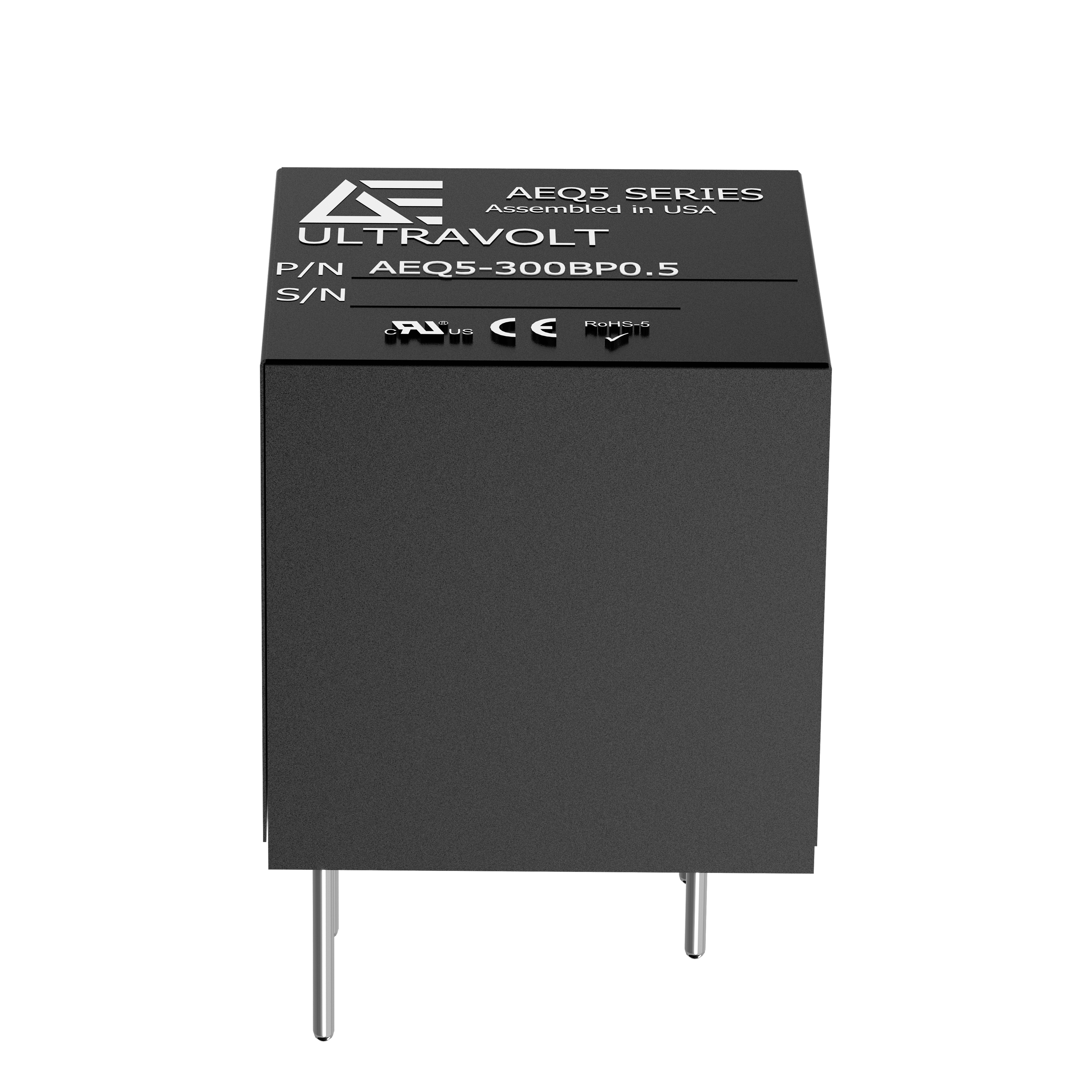

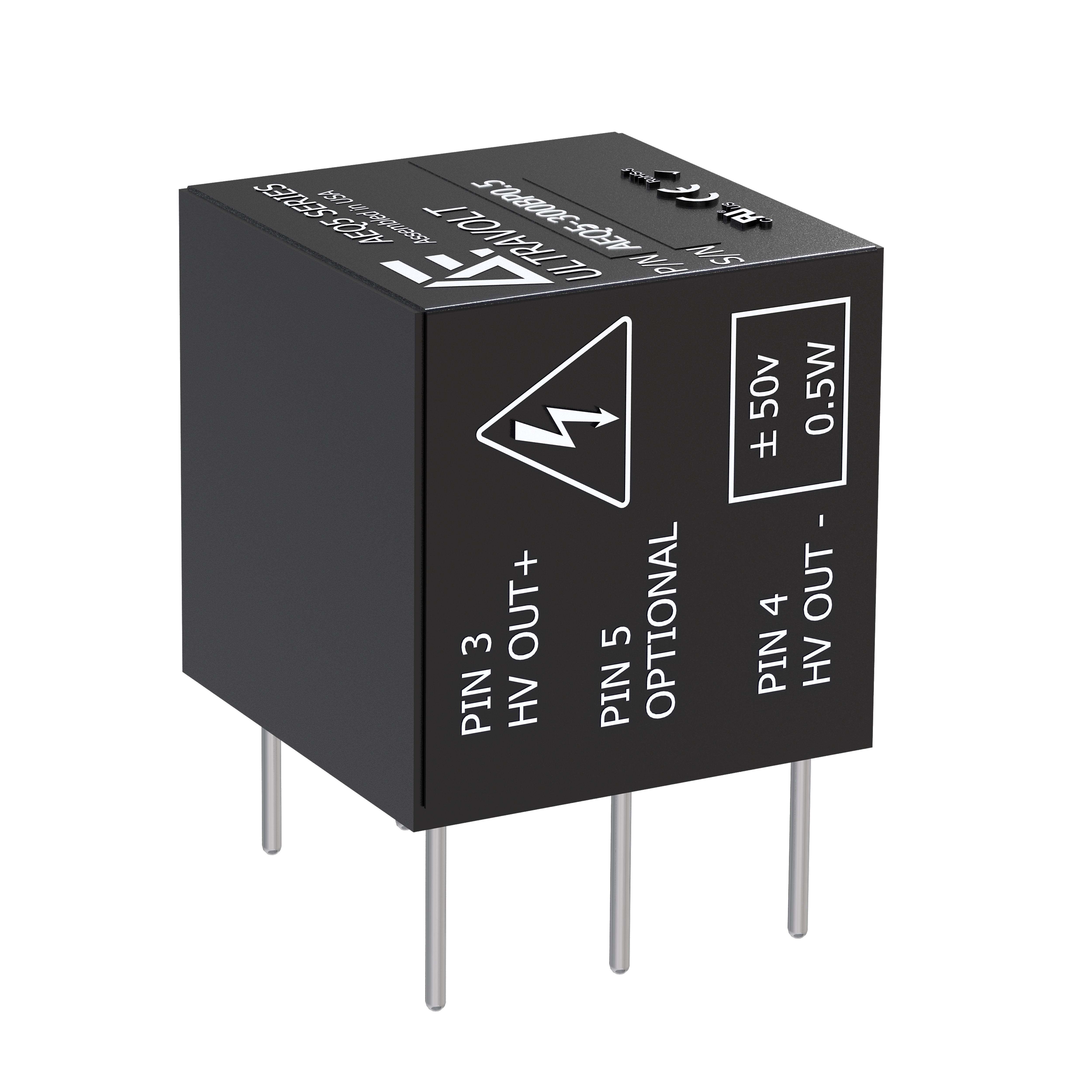

Ultra-Miniature DC-DC Supplies Optimal For Space Critical High-Voltage Projects

Advanced Energy’s AEQ Series of ultra-miniature DC-DC converters supply up to 600 VDC at 0.5 W or 1.25 W. The size makes it optimal for portable equipment and compact high-voltage projects. Its programmable input and 1500 V input-to-out isolation gives the user the best of both worlds – a source of precise, remotely programmable high voltage power, isolated to 1500 VDC, but with none of the drawbacks normally associated with proportional designs and offers the best in class in this package size and voltage range.

특징

Ultra-miniature size (0.5” cube)
Regulated 0 to +/-300 V (dual polarity units with CT), 0 to 600 V (floating/reversible units)
5 or 12 VDC input
Output fully adjustable over 0 VDC to maximum rating
+/-1500 VDC input to output isolation
Output short-circuit protection
0.5 W or 1.25 W maximum output power
Low ripple (<1% peak to peak)

혜택

Programmable high voltage output provides superior accuracy over proportional designs
Separate Vcc and high voltage output programming signal eases system DC power configuration
Reliable modular package, >3,000,000 hours MTBF (per Bellcore TR332)
1500 VDC input to output isolation is 3x higher than the competition
Load regulation 30% or less (FL-NL)

사양

출력 전력(W):	0.5 to 1.25
길이(인치):	0.5
너비(인치):	0.5
높이(인치):	0.5
마운팅 유형:	Through Hole, Surface Mount
최소 출력 전류(A):	0.000833
최대 출력 전류(A):	0.0125
출력 전압 범위(V):	50 to 600
최대 출력 전력(W):	1.25
최대 입력 전압(V):	12
보증(년):	1

모든 사양 사양 축소

기술 문서

제목	유형
Ultravolt AEQ Application Note (3 MB)	애플리케이션 노트
For the mass spectrometer market Advanced Energy’s high voltage power supply offers high resolution and reliability in a compact size (936 KB)	사례 연구
High Voltage Power Supply required for use in intraoperative EMG monitor (nerve integrity monitoring system) (471 KB)	사례 연구
High Voltage power supply required for use in intravascular ultrasound coronary artery imaging system (560 KB)	사례 연구
Ultravolt AEQ Series Data Sheet (1 MB)	데이터 시트
