Advanced energy’s global footprint helps ease customers’ tariff concerns. This series includes parts that are USMCA qualified.
new
NCF250 Series
Active
250 W CF Rated Medical Power Supply
Advanced Energy’s SL Power NCF250 series are CF rated medically approved AC-DC power supplies for critical medical applications needing low leakage current. They are available with a nominal main output of 12 V, 15 V, 24 V, or 48 V and also offer a 5 kV defibrillator withstand. NCF250 series power supplies provide up to 250 W of output power with air flow and a universal input voltage of 85 to 264 VAC. All models have output overvoltage, short circuit and overload protection and a 2.4 x 5.0 x 1.6 inch form factor.
특징
• CF Rated with Less than 10 μA Leakage Current
• 5 kV Defibrillator Withstand
• Up to 250 W with Airflow
• Up to 175 W Convection Cooled
• 2.4”W x 5.0”L x 1.6”H Form Factor
• Universal Input 85 to 264 VAC
• 5 kV Defibrillator Withstand
• Up to 250 W with Airflow
• Up to 175 W Convection Cooled
• 2.4”W x 5.0”L x 1.6”H Form Factor
• Universal Input 85 to 264 VAC
혜택
• Meets Class B Emissions Levels
• 7+ Years Electrolytic Capacitor Life
• Meets IEC60601-1-2 4th Edition EMC
• Class I Input
• RoHS Compliant
• REACH Compliant
• 3 Year Warranty
• 7+ Years Electrolytic Capacitor Life
• Meets IEC60601-1-2 4th Edition EMC
• Class I Input
• RoHS Compliant
• REACH Compliant
• 3 Year Warranty
사양
| 출력 전력(W): | 250 |
|---|---|
| 길이(인치): | 5 |
| 너비(인치): | 2.4 |
| 높이(인치): | 1.6 |
| 마운팅 유형: | L Chassis |
| 최소 출력 전류(A): | 3.6 |
| 최대 출력 전류(A): | 19.1 |
| 출력 전압 범위(V): | 12V to 48V |
Featured Resources
기술 문서
Product Information Documents
Updated
Safety & Compliance Certificates
Engineering Resources
Updated
기술 동영상

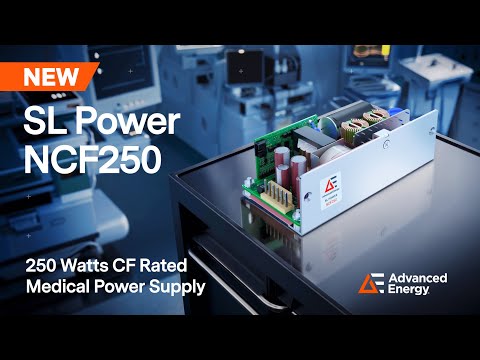

NCF250 Series of CF Rated Medical Power Supplies
3월 26, 2025
Advanced Energy’s SL Power NCF250 series are CF rated medically approved AC-DC power supplies for critical medical applications needing low leakage current. They are available with a nominal main output of 12 V, 15 V, 24 V, or 48 V and also offer a 5 kV defibrillator withstand. NCF250 series power supplies provide up to 250 W of output power with air flow and a universal input voltage of 85 to 264 VAC. All models have output overvoltage, short circuit and overload protection and a 2.3 x 5.0 x 1.5 inch form factor.
