Mikron M330 Blackbodies
Active

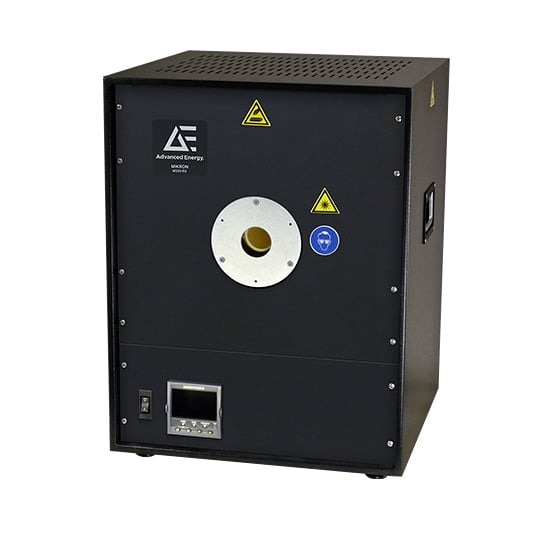

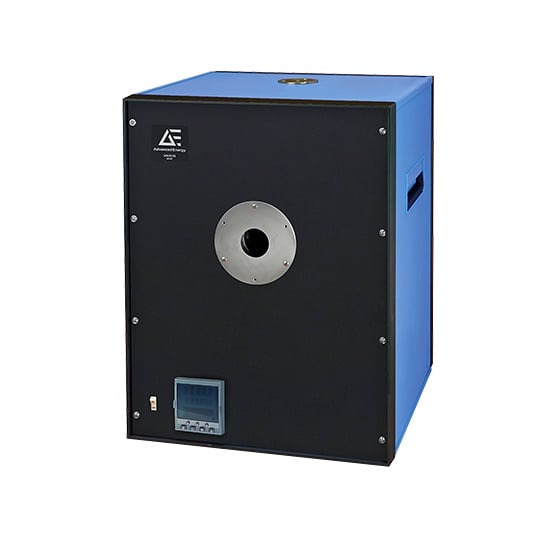

Blackbody Calibration Source with Digital Indicating Temperature Controller, 300 to 1700°C
The Mikron® M330 blackbody calibration source features a digital temperature controller that can be set to any temperature between 300 and 1700°C. The M330 utilizes industry standard PID algorithms allowing emitter temperature control to within ±0.5°C. A precision thermocouple monitors the M330 cavity, providing high accuracy and repeatability. Additionally, the M330 blackbody uses resistive heaters to enhance product lifecycle. Added safety features include an independent over-temperature power cutout system and an internal fan to keep cabinet surfaces at a safe temperature.
특징
- Long life resistive heater
- Independent over-temperature power cutout system
- Manufactured and tested to meet rigid quality control standards
- Furnished with certificate of calibration traceable to NIST
- RS232 (standard) or RS485 serial communication
혜택
- Digital temperature controller
- Increased safety features
- High accuracy and repeatability
- Rigid quality control standards
- Internal temperature control functions
사양
| 측정 불확도(°C): | ±0.25% of reading ±1 °C |
|---|---|
| 인터페이스/출력(mA): | RS232, RS485 |
| 상대 습도: | 90 |
| CE 라벨: | CE-Label |
| 장치 출력 온도 범위(°C): | 300 to 1700 °C |
| 안정성: | ±1 °C per 8-hour period |
| 가열 이미터 모양: | 25 mm |
