MB120 Series

Active

120 W Single Output Medical Grade

재고 확인 영업팀에 문의 데이터 시트

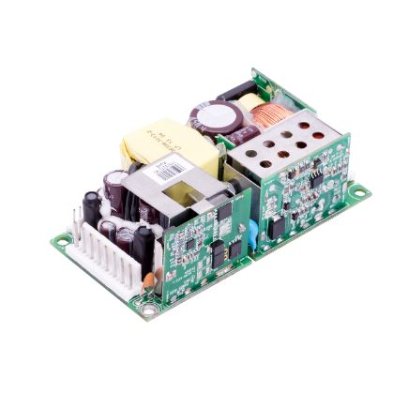

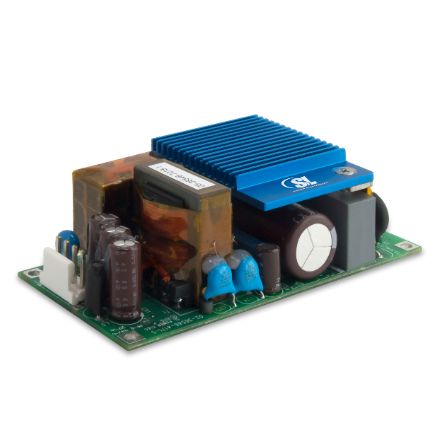

Advanced Energy’s SL Power MB120 family is the latest offering in high density single output open-frame AC/DC power supplies. Approved to EN/CSA/IEC/ES 60601-1, the MB120 family is ideal for industrial and medical applications where power density and cost are critical. The MB120 operates at universal input rang of 80 to 264 VAC and wide temperature range -10ºC to +70ºC, devering full rated output power up to +50ºC.

특징 사양 재고 확인 기술 문서 Videos Support

특징

2” x 4” x 1.25” Package, Ideal for 1U Applications
100 W convection cooled
<0.5 W Standby Power
2 x MOPP Isolation

혜택

10-year Life design with Premium E-Caps
Class B Conducted and Radiated EMI performance
BF Isolation Type Rated
Designed to meet new IEC 60601-1-2 4th Edition EMC requirements
Approved to AAMI ES/CSA C22.2 /EN/IEC60601-1 3rd Edition
3 Year Warranty

사양

출력 전력(W):	120
길이(인치):	4
너비(인치):	2
높이(인치):	1.25
마운팅 유형:	Embedded PSU
최소 출력 전류(A):	4.1
최대 출력 전류(A):	8.3
출력 전압 범위(V):	12V to 24V
최소 출력 전력(W):	120
최대 출력 전력(W):	120
Minimum Input Voltage (V):	80
최대 입력 전압(V):	264
보증(년):	3

모든 사양 사양 축소

기술 문서

Product Information Documents

Safety & Compliance Certificates

Engineering Resources

Insights & Studies

기술 동영상

MB120 Series

2월 13, 2024

Advanced Energy’s SL Power MB120 series includes four Class II input models: 12, 15, 18 and 24Vdc. Delivering up to 120 Watts of AC-DC power, the MB120 was engineered for next-generation medical applications that require power supplies that excel across all performance parameters.
