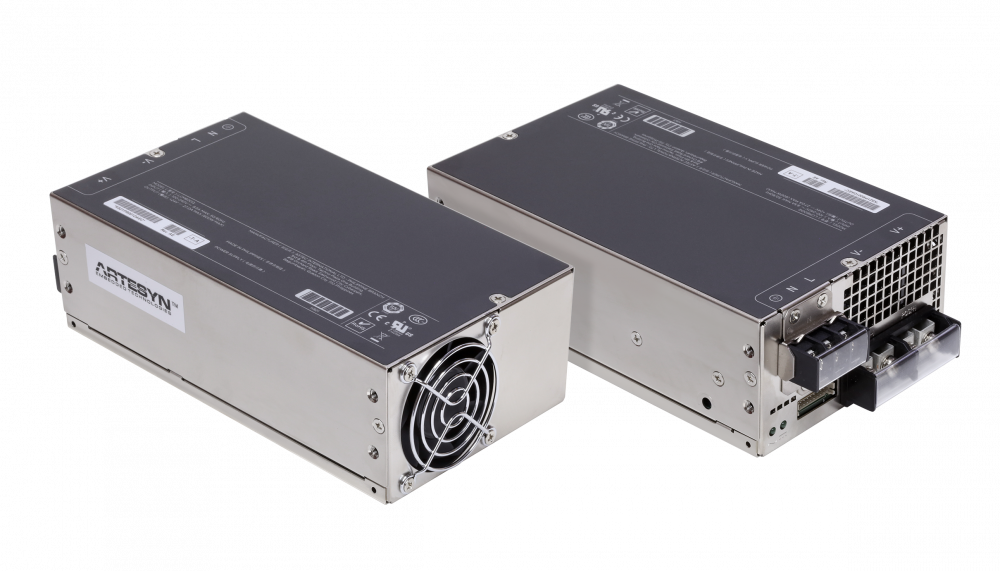

LCM600 Series

Active

600 W Front-End AC-DC Power Supplies

The 600 W LCM600 series of 2U-high distributed power frontend AC-DC power supplies offers output choices of 12, 15, 24, 36, and 48 VDC with an optional 5 VDC standby output. The series features a universal input range of 85-264 VAC, typical full-load efficiency of 89%, and an I2C interface for output voltage programming up to 20% either side of nominal for voltage margin testing. Carrying industrial and medical safety approvals, the supplies are suitable for a wide variety of industrial, medical, military, and process automation applications, particularly systems utilizing a distributed power architecture (DPA) or point-of-load (POL) scheme. A built-in ORing FET allows up to 10 units to be connected in parallel for high current applications.

특징 사양 재고 확인 기술 문서 Support

특징

+/ 20% Adjustment Range
40C to 70C with derating
600 W Bulk Power
Convenient Size 2.4 x 4.5 x 7.5
Efficiency 89% typical
Power Factor 0.99
Hold-up Time > 20 mSec
Leakage Current < 300 uA
Fusing 10 A both lines fused
Efficiency > 88%
Frequency 47 - 440 Hz
Input Voltage 85 - 264 VAC
Inrush Current < 25 A (Active)
Input Current 8A RMS
Noise 1% for 50 mV P-P whichever is greater
Rated Load 600 W derate linear to 300 W from 50 - 70°C
Set Point +/- 0.5%
Total Regulation +/- 2.0%
Shock/Vib Mil-STD-810 F

혜택

Conformal Coat Option
DSP controlled PFC
Industrial/Medical Safety Approvals
Low Cost
Margin Programming
Oring FET optioin
Variable "Smart Speed" fan
Protections Overtemp, Overcurrent, Overvoltage

사양

출력 전력(W):	600
길이(인치):	7.5
너비(인치):	4.5
높이(인치):	2.4
마운팅 유형:	Embedded PSU
최소 출력 전류(A):	0
최대 출력 전류(A):	54
출력 전압 범위(V):	0V to 57.6V
최소 출력 전력(W):	0
최대 출력 전력(W):	600
Minimum Input Voltage (V):	90
최대 입력 전압(V):	264
보증(년):	3

모든 사양 사양 축소

기술 문서

Product Information Documents Updated

Safety & Compliance Certificates

Engineering Resources

비교

Model	LCM600	LCM1000	LCM1500	LCM300	LCM3000
출력 전력(W)	600	1000	1500	300	3000
길이(인치)	7.5	10	10	7	10.9
너비(인치)	4.5	5	5	4	7
높이(인치)	2.4	2.4	2.4	1.61	2.5
마운팅 유형	Embedded PSU	Embedded PSU	Embedded PSU	Embedded PSU	Embedded PSU
최대 출력 전류(A)	54	83.3	133	25	250
출력 전압 범위(V)	0V to 57.6V	10.8V to 52.8V	0V to 52.8V	9.6V to 57.6V	2.4V to 60V
최소 출력 전력(W)	0	0	0	0	0
최대 출력 전력(W)	600	1000	1500	300	3000
최대 입력 전압(V)	264	264	264	264	264
보증(년)	3	3	3	3	5
