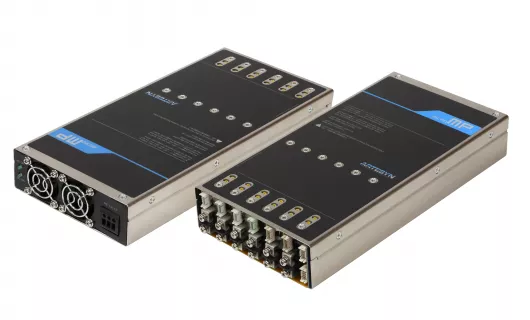

uMP16 Gen II

Active

1000 to 1800 W Configurable AC-DC Power Supplies

Case Options 영업팀에 문의 ConfigPro 소개 데이터 시트

The uMP16 GEN II series AC-DC configurable power supplies with a power density of 22.7 W/in3 provides six slots that accept intelligent DC-DC converter modules. It is capable of delivering up to 1800 W in a 256.9 mm x 127 mm x 40 mm package, with up to 12 isolated outputs using single or dual output modules ranging from 0.9 to 60 V. Output modules can be connected in parallel for higher currents.

The uMP16 GEN II series features PMBus® monitoring and control of input functions with a downloadable GUI from the website. IEC, terminal block or barrier strip connections are available, along with optional hold-up module and conformal coating. The series has full industrial EN/UL62368-1 and medical IEC/EN60601-1(3rd and 4th Edition) safety approvals.

특징 사양 Case Options Modules Accessories Support

특징

Up to 91.5% efficiency
Low noise intelligent fan
Output margining, remote sense and current sharing
Military STD Shock (40G) / Vibration (> 4gRMS)
MTBF >350,000 hours
Three-year warranty

혜택

Configure a custom solution comparable to the cost an off-the-shelf product
Fast deployment with user- and field-configurability
Confidence in reliability from the #1 configurable power supply manufacturer

사양

길이(인치):	10.11
너비(인치):	5
높이(인치):	1.57
출력 전압 범위(V):	0.9 to 500
최대 출력 전력(W):	1800
Minimum Input Voltage (V):	85
최대 입력 전압(V):	264

Accessories Stock Check

ConfigPro 소개하기

Advanced Energy의
혁신적인 온라인 Power Configurator

3백만 개 이상의 구성 가능한 전원 공급 장치 조합을 갖춘 이 전원 솔루션 알고리즘은 비용을 최적화하고 MP, IMP, IVS 및 MICROMP(UMP) 구성 가능한 전원 공급 장치 제품군에 이상적인 솔루션을 안내합니다.

시작하기

비교

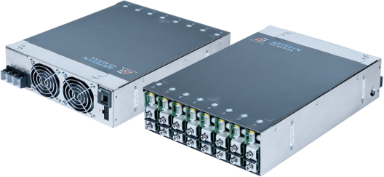

Model	uMP16 Gen II	Coolx1800	NP05	iMP1	NP08
길이(인치)	10.11	10.51	11.2	11	11.2
너비(인치)	5	5	5	8	8
높이(인치)	1.57	1.61	2.5	2.5	2.5
출력 전압 범위(V)	0.9 to 500	1 to 348	1 to 300	1.8 to 420	1 to 300
최대 출력 전력(W)	1800	800	2400	1500	4000
Minimum Input Voltage (V)	85	85	90	85	90
최대 입력 전압(V)	264	264	264	264	264
