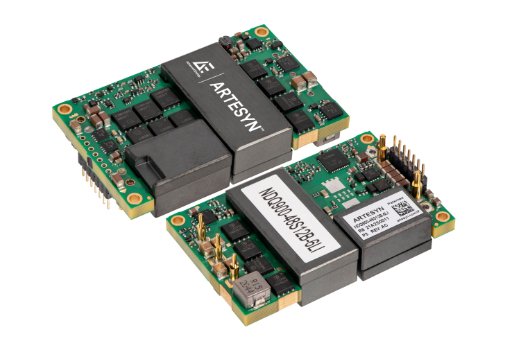

The NDQ Series of DC-DC power converters is a new generation of non-isolated, digitally-controlled power solutions. They deliver up to 1600 W with a 12.25 V output, offering ultra-high peak efficiency of 98%. The quarter-brick DC-DC converters perform across an operating temperature range of -40 to +85°C with forced-air cooling, making them a prime choice for 48 to 12 V down conversion in high-power computing and storage applications. The series comprises NDQ900, NDQ1300, and NDQ1600 quarter-brick converters that all share the same footprint, mechanical attributes, and electrical functions.
주요 제품
새로운 제품
기술 문서
Product Information Documents
Updated
Safety & Compliance Certificates
Engineering Resources
New
Updated
기술 동영상

NDQ1300 | High-efficiency 1300 W Quarter-brick DC-DC Converter for 48 V Systems
8월 27, 2025
Engineered for next-generation computing, networking, and industrial platforms, Advanced Energy’s NDQ1300 is a high-efficiency, non-isolated DC-DC converter delivering up to 1300 W of regulated 12 V output from a 48 V input. Designed in a standard quarter-brick footprint, this high-density power module achieves up to 98% peak efficiency, minimizing heat and simplifying thermal management across dynamic load conditions.
Key features include:
• Flat 98% Efficiency Curve – Reduces cooling complexity and boosts system reliability
• Integrated Baseplate – Supports heatsinks or liquid cooling for optimal thermal performance
• Wide Operating Range – Fully qualified for -40°C to +85°C and compliant with IEC 62368
Ideal power solution for AI servers, data center, robotics, telecom and networking, and test and measurement systems, the NDQ1300 is the power platform built for today’s most demanding environments.
Learn more: https://www.advancedenergy.com/en-us/products/dc-dc-conversion-products/telecom-48v-input-pcb-mount-bricks/ndq-series/ndq1300/
