ARTESYN™

NP05

Active

Up to 2400 W Configurable AC-DC Power Supplies

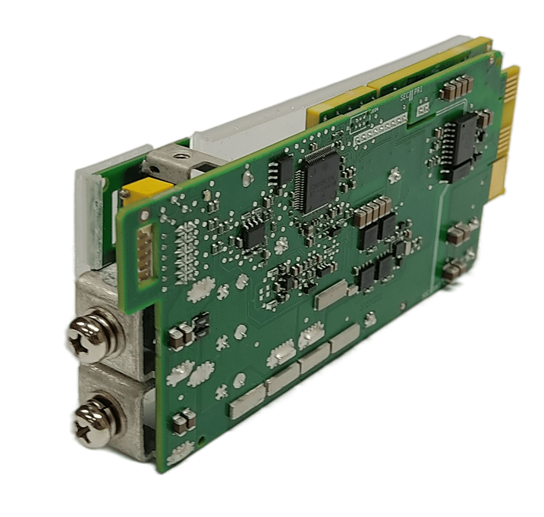

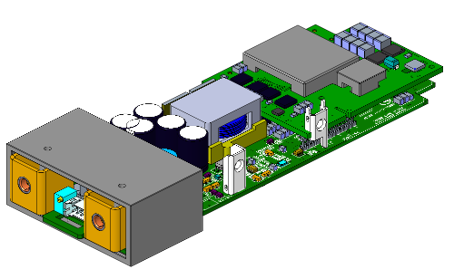

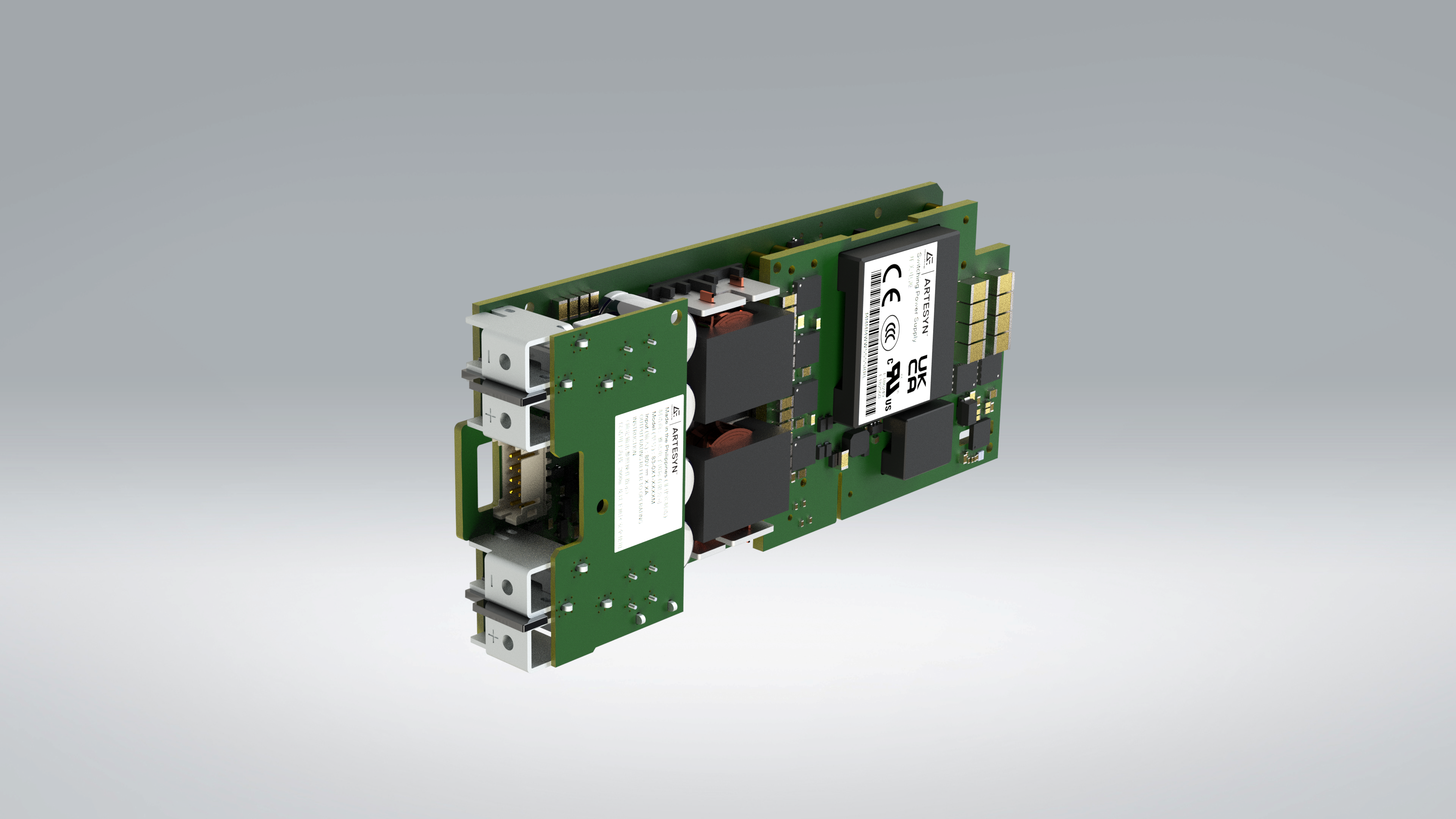

The NeoPower NP05 AC-DC configurable power supply introduces best-in-class power density of 17 W/in3. Up to 2400 W output power in a 283.4 x 127 x 63.5 mm package, NP05 is easy to configure (series or parallel) and has five output power slots. The NP05  case can be populated with up to 5 output modules, providing up to 5 isolated DC outputs that range from 1.0 to 57.6 V. The NP05 can drop into an OEM’s enclosure to make a custom power supply or simply be used for its high flexibility for any embedded or power conversion challenge requiring multiple outputs.​

The NeoPower is certified for both industrial IEC/EN/UL 62368-1  and medical IEC/EN 60601-1 safety approvals, including compliance to the SEMI F47 standard.

특징

  • Market-leading low ripple noise​
  • Programmable in constant voltage or constant current mode​
  • MTBF > 500,000 hours​
  • Five-year warranty

혜택

  • More power in 2.5" configurable compared to the competition​
  • Flexible communications​
  • Fast deployment​
  • Higher power signal and accuracy​
  • Simplified busbars for any series/parallel combination​
  • Confidence in reliability from the #1 configurable power supply manufacturer

사양

길이(인치): 11.2
너비(인치): 5
높이(인치): 2.5
출력 전압 범위(V): 1 to 300
최대 출력 전력(W): 2400
Minimum Input Voltage (V): 90
최대 입력 전압(V): 264

Accessories Stock Check

J1 SIGNAL ASSY,HARN,14,14 WAY COMMS CONNECTOR
83-200-001
활성, 재고 있음
PowerPro MODBUS RTU to CANBUS/PMBUS Dongle
PowerPro MODBUS RTU to MODBUS TCP Ethernet Dongle
83-778-002
활성, 재고 있음
NeoPower(NP) 2x 1-slot module, single output parallel kit
83-778-003
활성, 재고 있음
NeoPower(NP) 3x 1-slot module, single output parallel kit
83-778-004
활성, 재고 있음
NeoPower(NP) 4x 1-slot module, single output parallel kit
83-778-005
활성, 재고 있음
NeoPower(NP) 5x 1-slot module, single output parallel kit
83-778-006
활성, 재고 있음
NeoPower(NP) 6x 1-slot module, single output parallel kit
83-778-007
활성, 재고 있음
NeoPower(NP) 7x 1-slot module, single output parallel kit
83-778-008
활성, 재고 있음
NeoPower(NP) 8x 1-slot module, single output parallel kit
83-778-009
활성, 재고 있음
NeoPower(NP) 2x 1-slot module, single output series kit
83-778-010
활성, 재고 있음
NeoPower(NP) 3x 1-slot module, single output series kit
83-778-011
활성, 재고 있음
NeoPower(NP) 4x 1-slot module, single output series kit
83-778-012
활성, 재고 있음
NeoPower(NP) 5x 1-slot module, single output series kit
83-778-013
활성, 재고 있음
NeoPower(NP) 6x 1-slot module, single output series kit
83-778-014
활성, 재고 있음
NeoPower(NP) 7x 1-slot module, single output series kit
83-778-015
활성, 재고 있음
NeoPower(NP) 8x 1-slot module, single output series kit
RJ45 MODBUS programming cable

기술 문서

기술 동영상

비교

Model NP05 Coolx3000 iVS1 iVS3 iVS8
길이(인치) 11.2 12.8 11 11 11
너비(인치) 5 5.16 5 8 8
높이(인치) 2.5 4.72 5 5 5
출력 전압 범위(V) 1 to 300 1 to 205 1.8 to 500 1.8 to 500 1.8 to 500
최대 출력 전력(W) 2400 3000 3210 4500 4920
Minimum Input Voltage (V) 90 180 90 90 170
최대 입력 전압(V) 264 264 264 264 264
