ARTESYN™

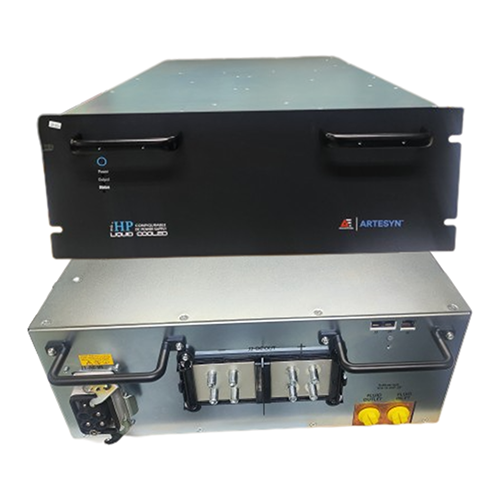

iHP20S Liquid Cooled
Active
Up to 20k W Configurable, Liquid-Cooled AC-DC Power Supplies
The iHP20 Liquid Cooled precision AC-DC configurable power supply is 100% digitally controlled in a 757.4 mm x 448.5 mm x 177.8 mm package and provides eight individual slots that accept intelligent DC-DC converter modules. Each slot may be populated with a separate 3000 W plug-in module with an output voltage range from 0.6 VDC to 300.0 VDC (with eight nominal voltages) for a total output power of 20kW. The short rack iHP20S is factory configured as a single output standard--contact the factory if multiple outputs (up to 8) are required.
The iHP24/30 offers developers either an analog (0-5/10V) or digital interface supporting standard communications protocols, while a downloadable software GUI allows for easy configuration and user dashboard creation. The series has EN/UL 62368 industrial and IEC/EN/UL 60601-1 medical safety approvals and is SEMI F47 compliant. For horticulture, GROWINSIGHT™ detailed scheduling and control software is available.
The iHP24/30 offers developers either an analog (0-5/10V) or digital interface supporting standard communications protocols, while a downloadable software GUI allows for easy configuration and user dashboard creation. The series has EN/UL 62368 industrial and IEC/EN/UL 60601-1 medical safety approvals and is SEMI F47 compliant. For horticulture, GROWINSIGHT™ detailed scheduling and control software is available.
특징
- IP54 Ingress Protection
- Market-leading low ripple noise
- Very low total harmonic distortion (THD)
- Fast current slew rate up to 200 Hz
- 3-phase 380/480 nominal input
- MTBF > 500,000 hours
- Five-year warranty
혜택
- Higher power density consumes less physical space
- Flexible communications
- Fast deployment with user- and field-configurability.
- Simplified busbars for any series/parallel combinations
- Confidence in reliability from the #1 configurable power supply manufacturer
사양
| 길이(인치): | 29.8 |
|---|---|
| 너비(인치): | 17.6 |
| 높이(인치): | 7 |
| 출력 전압 범위(V): | 0.6 to 1000 |
| 최대 출력 전력(W): | 20000 |
| Minimum Input Voltage (V): | 342 |
| 최대 입력 전압(V): | 528 |
Accessories Stock Check
ConfigPro 소개하기
Advanced Energy의
혁신적인 온라인 Power Configurator
3백만 개 이상의 구성 가능한 전원 공급 장치 조합을 갖춘 이 전원 솔루션 알고리즘은 비용을 최적화하고 MP, IMP, IVS 및 MICROMP(UMP) 구성 가능한 전원 공급 장치 제품군에 이상적인 솔루션을 안내합니다.
시작하기
기술 문서
Product Information Documents
Safety & Compliance Certificates
기술 동영상
iHP Group digital voltage source setup
8월 1, 2017
Designed for a wide range of medical and industrial applications, Artesyn’s iHP configurable intelligent power system provides accuracy, resolution and stability as either a programmable voltage or current source. It provides up to 24 kW in 3 kW increments and can be configured for up to 8 outputs using a wide variety of plug-in modules that address a large range of voltages and currents. The modules can be connected in series or parallel, and Group is defined accordingly via GUI. User can just send commands to Group replacing individual module control.
Close Popup
.png?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
비교

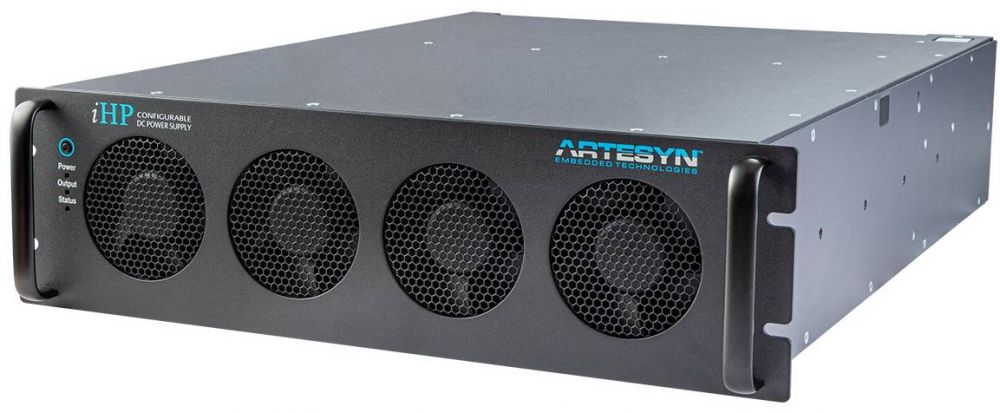

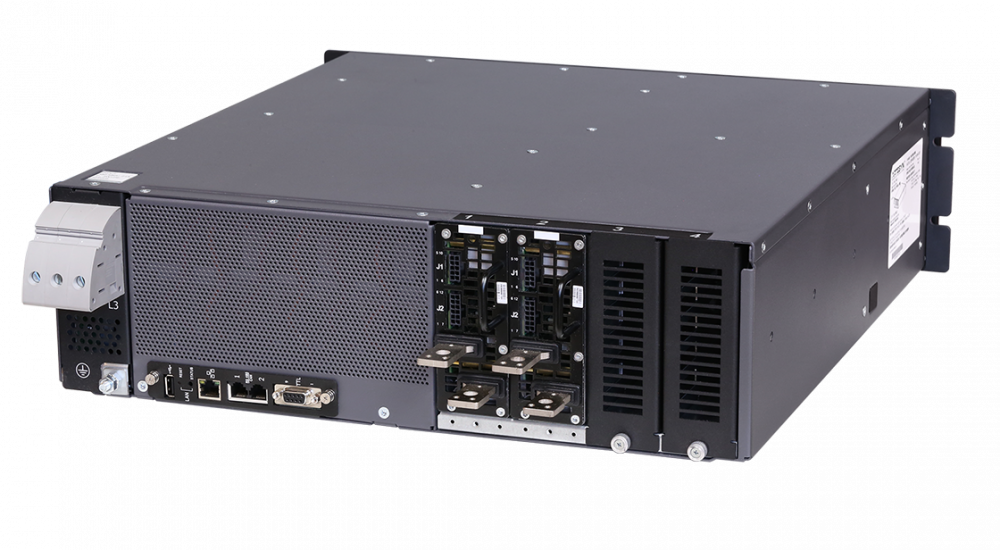

| Model | iHP20S Liquid Cooled | iHP24/30 Air Cooled | iHP24S/30S Air Cooled | iHP12/15 air cooled |
|---|---|---|---|---|
| 길이(인치) | 29.8 | 18 | 23.7 | 27.8 |
| 너비(인치) | 17.6 | 17.6 | 17.6 | 17.6 |
| 높이(인치) | 7 | 5.22 | 5.22 | 5.22 |
| 출력 전압 범위(V) | 0.6 to 1000 | 0.6 to 1000 | 0.6 to 1000 | 0.6 to 1000 |
| 최대 출력 전력(W) | 20000 | 30000 | 30000 | 15000 |
| Minimum Input Voltage (V) | 342 | 180 | 180 | 180 |
| 최대 입력 전압(V) | 528 | 660 | 660 | 660 |
