CoolX3000 Series

Active

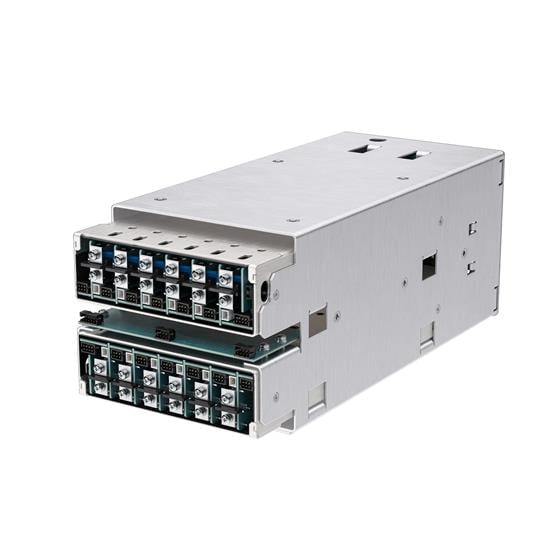

High Efficiency, Intelligent and Reliable 3000 W Modular Power Supplies

Advanced Energy's Excelsys CoolX3000 is an intelligent, user-configurable modular power supply. It offers variable fan speed control, a five-year warranty, and analog and digital management.
  • 3000 W in a compact package
  • Industrial and medical standard approvals
  • Up to 24 isolated outputs
  • PMBus® digital communications
  • > 91% efficiency

특징

  • PMBus® digital communications and control
  • 23.5 W always-on auxiliary power output
  • 5000 m altitude operation

혜택

  • High Power Density: 3000 W in a 300 x 131 x 120 mm
  • Intelligent Digital Power: Access maximum flexibility with analog and digital control
  • Increased functionality: Ideal for end-user equipment that demands higher power and requires the ability to increase the of number outputs

사양

출력 전력(W): 3000
길이(인치): 11.8
너비(인치): 5.2
높이(인치): 4.7
마운팅 유형: Base/Side Mounting, DIN-Rail Mounting
최소 출력 전류(A): 1.96
최대 출력 전류(A): 4.7
출력 전압 범위(V): 1 to 696
모든 사양 사양 축소

기술 문서

비교

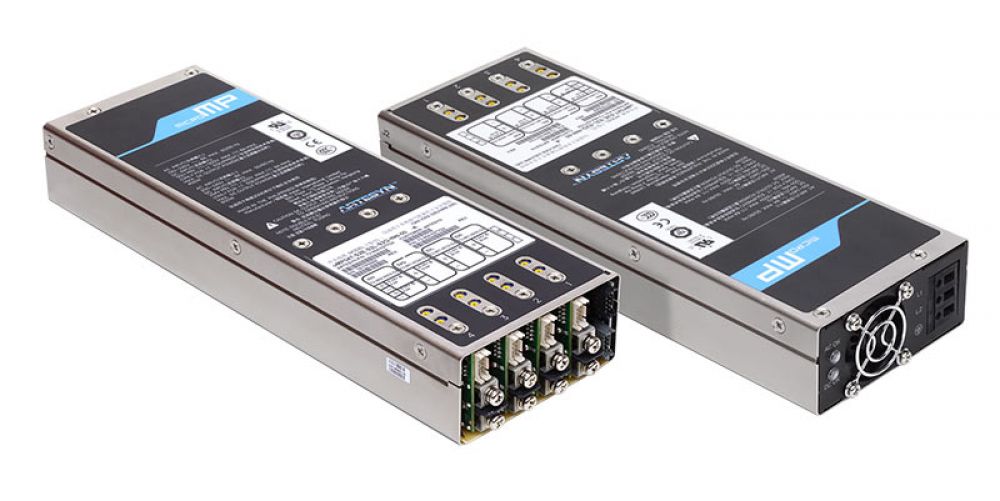

Model CoolX3000 uMP Gen II Ultimod
출력 전력(W) 3000 1800 600 to 1200
길이(인치) 11.8 10 10
너비(인치) 5.2 5 5
높이(인치) 4.7 1.57 1.75
