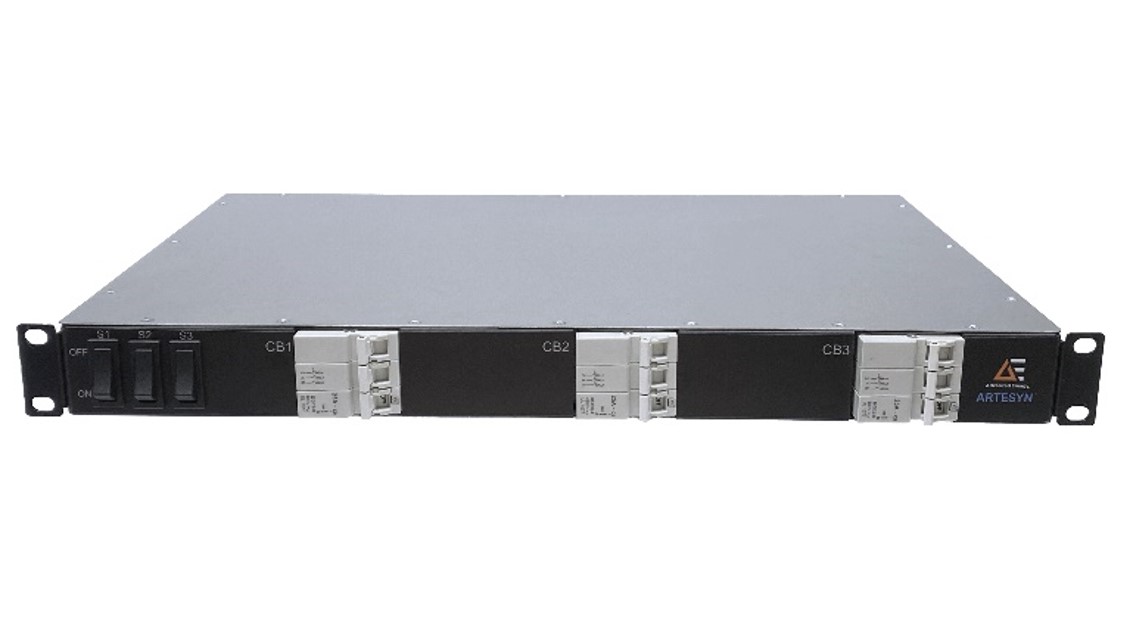

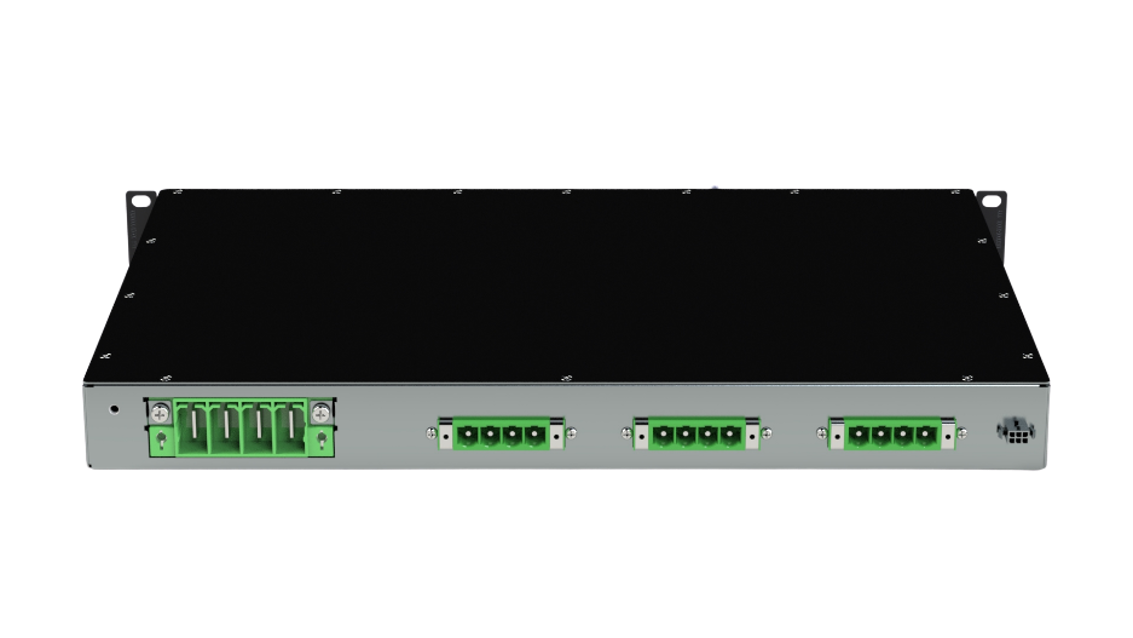

LMD-PDU (Power Distribution Unit) for LumaDrive

Active

The LMD-PDU is a central hub for distributing utility power to up to three LCM12K shelves. You can use it to design and build a custom LumaDrive cabinet system. It ensures efficient power management and distribution for large-scale industrial and commercial lighting applications. This centralized power approach reduces energy losses and enhances overall system efficiency. Its multiple safety features also enable reliable operation.

특징

  • AC breakers and logic level ON/OFF
  • Five-year manufacturer's warranty
  • Modular three-channel switch capable of powering three LCM12K shelves
  • Standard 19" rack mounting
  • Individual shelf output control
  • PSON switches using logic control
  • Accepts three-phase Delta or WYE (four wire) and three-phase WYE + Neutral (five wire) AC source
  • Total power up to 36 kW

혜택

  • Enables easy retrofitting of an existing system or customization of a new system
  • Saves design time and technical qualification costs
  • Eliminates point-to-point wiring with included pre-wire harness accessories
  • Operates reliably: protects against overcurrent and electrical faults
  • Reduces energy losses and enhances overall system efficiency with centralized approach

사양

출력 전력(W): 12000
작동 온도(°C): 0 to 50
길이(인치): 18.86
너비(인치): 16.53
높이(인치): 1.59
마운팅 유형: Rack-mount
최소 출력 전류(A): 0
최대 출력 전류(A): 106
