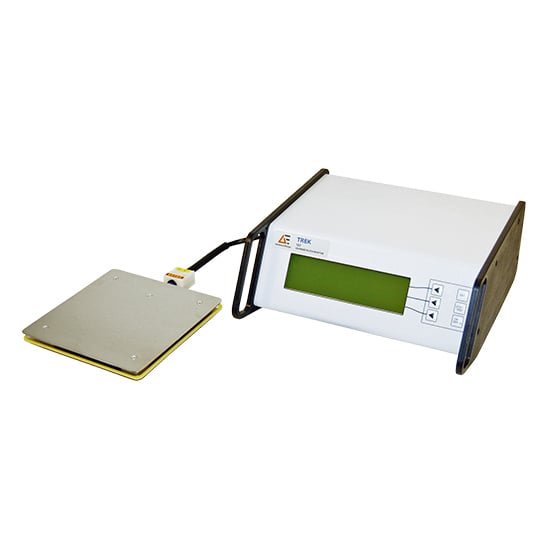

Trek 157 Series

Active

Charged Plate Monitor That Offers Better Accuracy, Stability, and Bandwidth Than Conventional Designs

The Trek^® 157 combines patented precision charge measurement capability with features that drive down ionizer maintenance and performance testing costs. Enhanced features, such as those that enable the operator to store and retrieve data as data points or graphs and record operator comments for reference, make the Trek^® 157 ideal for use in dissipative testing of materials and monitoring of static charge.

特徴

Greater bandwidth enables “true” responses to be observed by avoiding the masking of results
Extremely low offset and drift ensures high accuracy, making it ideal for applications requiring critical ion balance such as GMR and TMR manufacturing areas
NIST-traceable Certificate of Calibration provided with each unit

メリット

Set custom measurement capacitance for assurance that ESD process needs are met in manufacturing
Easily transport within a facility with the compact and lightweight design
Use for ESD monitoring of sensitive manufacturing processes such as semiconductor, disk drive, and LCD

仕様

動作温度範囲 (°C):	5 to 35
測定範囲:	0 to ±1020 V
測定精度(%):	0.001
通信インターフェース:	USB

技術文書

タイトル	タイプ
Trek 157 Data Sheet (172 KB)	データシート

アクセサリー

Charge Plate Monitor Accessories

Accessories compatible with the Monroe and Trek charge plate monitors.

サービス

Calibration and Alignment

Advanced Energy has the tools and processes to ensure your equipment continues to meet its original specifications. Our products are calibrated at global AE service sites with proprietary technology designed to exceed industry standards.
