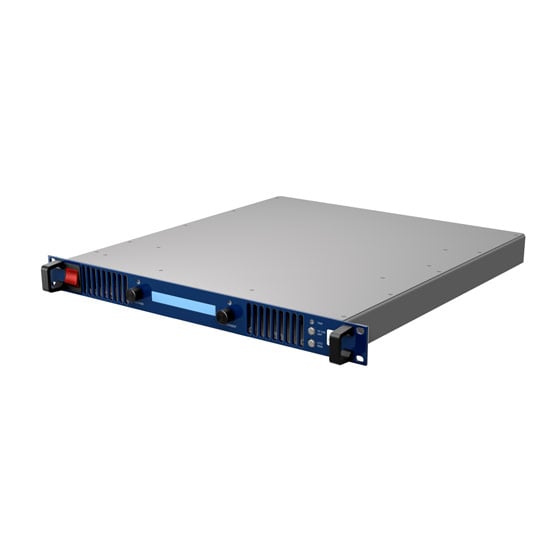

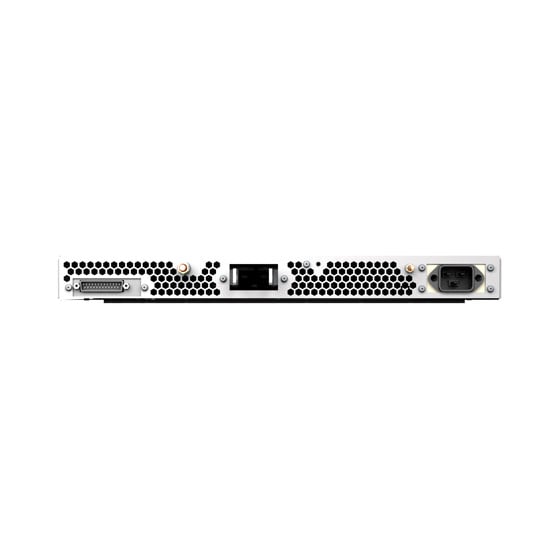

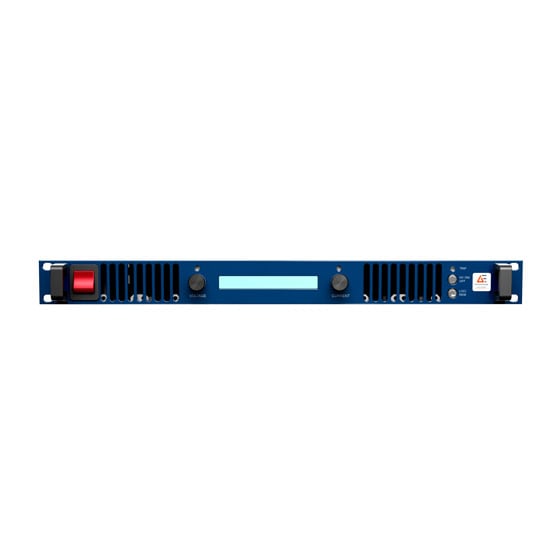

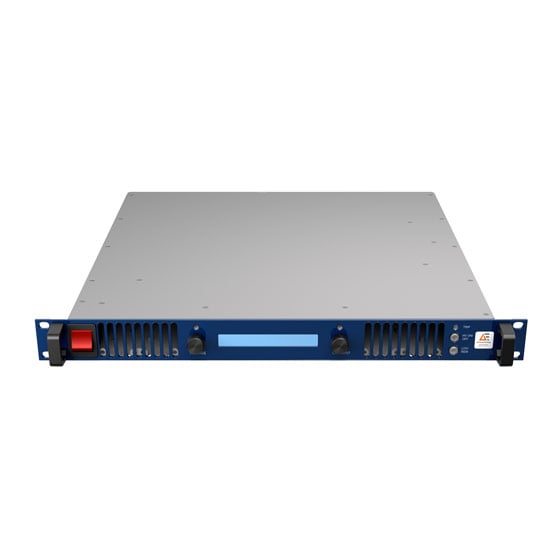

MV2000 Series
Active
High-Performance, Rack-Mount, 2 kW Medium Voltage Power Supplies
The custom-only MV2000 series high-performance, medium-output voltage power supplies can be designed to suit a wide variety of general-purpose applications. Use for component testing, heaters, magnets, battery management, ion implantation, and automated testing. Easily configure parallel/series unit operation to provide higher output power levels — adjust for specific applications or provide n+1 redundancy. You select your interface design, isolation (up to 1kVDC), and digital control (RS232). If you're looking for flexibility, the built-to-order MV2000 series is the right solution for your industrial power supply needs.
特徴
- High packing density — 2 kW in 1U rack-mounted chassis
- Efficient and reliable operation, with high stability
- Parallel connected power supply option enables 20 to 100 kW max output power
- Active power factor correction
- Low Voltage Directive (2006/95/EC) and RoHS compliance (to 2011/65/EU) requirements
メリット
- Enable significant rack space saving with compact construction
- Benefit from exceptional reliability; the MV2000 is ideal for 24 x 7 production processes
- Customize output power for unique application needs
- Save space without affecting performance via front-to-rear cooling
技術文書
比較する
| Model | MV2000 Series | MV3000 Series |
|---|---|---|
| 出力電力 (W) | 2000 | 3000 |
| リップル（ppm） | <1000 | <1000 |
| 出力電圧範囲 (V) | 10 to 300 | 100 to 300 |
関連アプリケーション
すべてのアプリケーションを表示する
Analytical Instruments
Advanced Energy's power solutions are designed to meet the specific power requirements of various analytical instruments such as spectroscopy, mass spectrometry, chromatography, electrophoresis, particle size analyzers, and scanning electron microscopes.
Explore Analytical Instruments
