アルテシン
CSU2400AT Series
Active

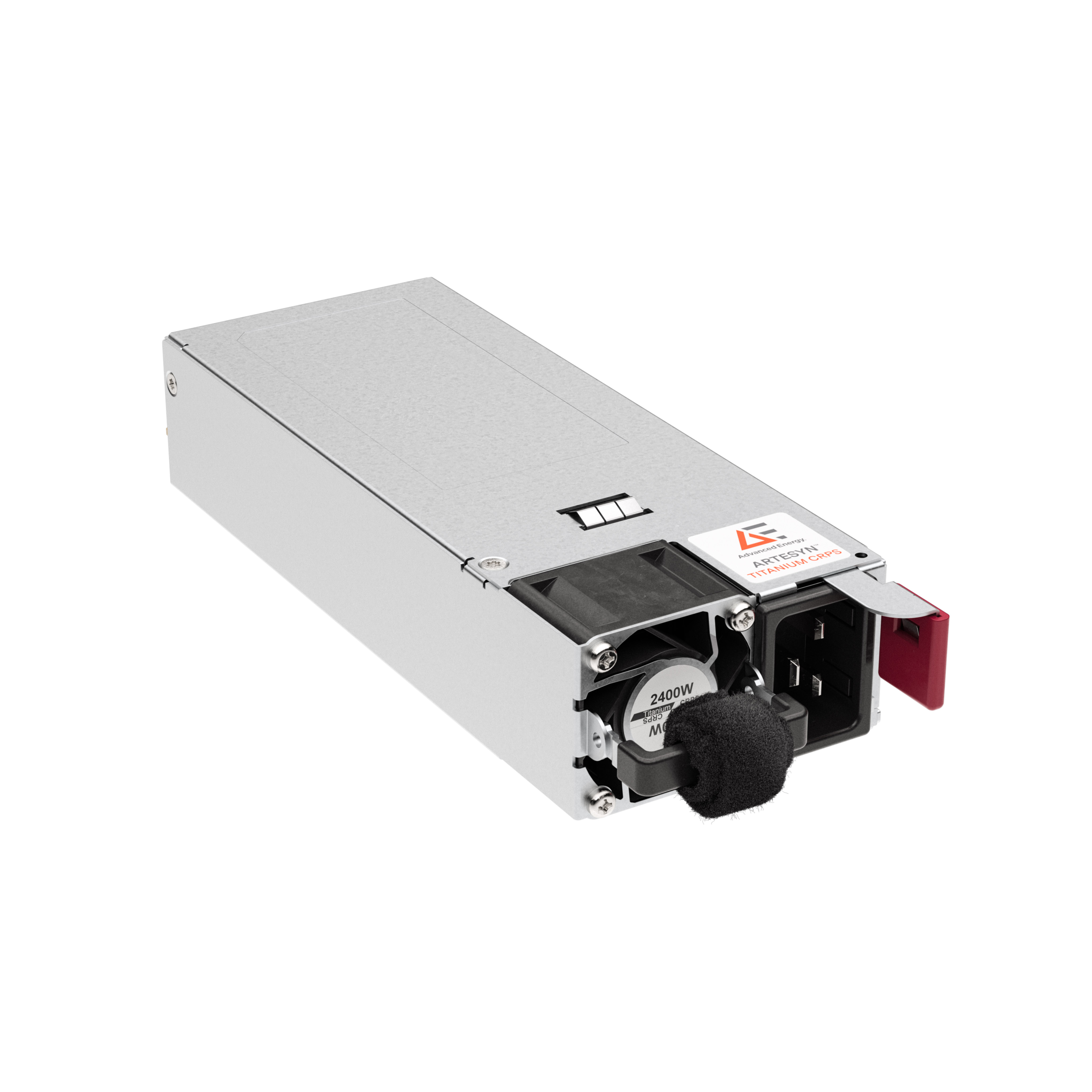

2400 W CRPS-Type Titanium Power Supply
The 2.4 kW CSU2400AT Titanium Efficiency certified power supply offers a peak efficiency of 96% and delivers up to 196.7 A. The PSU features an input range of 180 to 264 VDC and output 11.4 to 12.8 VDC that can feed downstream DC-DC converters in distributed power architectures (DPA). Housed in a 1U high rack-mount enclosure measuring just 2.89 x 7.28 inches (73.5 x 185 mm), the supply’s short, narrow form factor conforms to the Common Redundant Power Supply (CRPS) standard and frees up system space. Active current sharing allows paralleling without additional components. The CSU2400AT is digitally controlled via an integral I2C interface using Advanced Energy’s universal PMBus® graphical user interface.
特徴
- Input Range 180-264 VAC
- Input Frequency 47 - 63 Hz
- Hold-up Time 11 ms
- Power Factor >0.98 at 50% load
- Input Range 165-320 VDC
- Main Output Voltage 12.2V at 196.7A
- Standby Output Voltage 12.0V at 3.5A
- Output Power 2400W continuous
- Output Ripple 120 mVp-p
- Load Sharing Active load sharing with 5.0% at full load
メリット
- Efficiency Platinum level
- Power Good Active High
- Alert Active Low
- Protection OVP, OCP, Short Circuit, OTP
- Remote On/Off Active Low
仕様
| 出力電力 (W): | 2400 |
|---|---|
| 長さ（インチ）: | 7.28 |
| 幅（インチ）: | 2.89 |
| 高さ（インチ）: | 1.57 |
| マウントタイプ: | Rack-mount |
| 最小出力電流 (A): | 0 |
| 最大出力電流 (A): | 196.7 |
| 出力電圧範囲 (V): | 11.4V to 12.8V |
技術文書
アクセサリー
Universal PMBus GUI Software Package
The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
