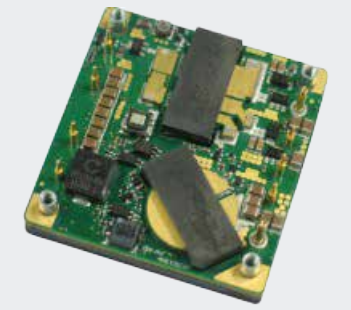

AVE600 Series

Active

600 W Half-Brick Isolated DC-DC Converter

Advanced Energy's Artesyn AVE600 series half-brick isolated DC-DC converter provides a single regulated low noise 12 VDC output that can deliver up to 50 A. It has a wide 2:1 input range of 36 to 75 VDC and is designed primarily for use with standard 48 V telecommunications equipment supplies. This converter is normally used in designs with a distributed power architecture (DPA), where one or more downstream non-isolated DC-DC converters meet the needs of lower voltage semiconductor devices.

特徴仕様 Stock Check 技術文書 Support

特徴

2:1 Wide input range
Low ripple and noise
Basic insulation system
Aluminium substrate design

メリット

Optimised for high density, small space applications
Fixed switching frequency
Super high efficiency
High capacitive load capability

仕様

出力電力 (W):	600
長さ（インチ）:	2.3
幅（インチ）:	2.4
高さ（インチ）:	0.5
マウントタイプ:	BMP; Through Hole
最小出力電流 (A):	0
最大出力電流 (A):	50
出力電圧範囲 (V):	12V to 12V
最小出力（W）:	0
最大出力（W）:	600
Minimum Input Voltage (V):	36
最大入力電圧 (V):	75
保証期間（年）:	2
