36 W (10 A) Non-Isolated DC-DC Converters

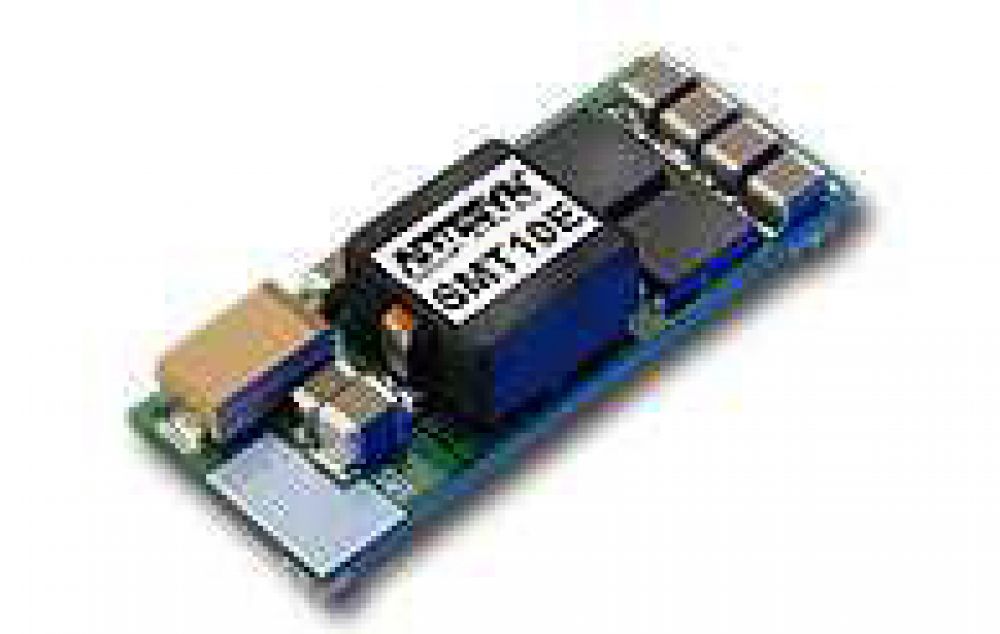

The SMT10E_12V series non-isolated DC-DC converter accepts a 10 to 14 VDC input and produces an output that can be trimmed over a very wide 0.8 to 3.63 VDC range to satisfy a broad diversity of semiconductor power needs. Rated at 33 W, the converter has a typical efficiency of 94% and can deliver up to 10 A output current. Standard features include remote On/Off and comprehensive protection against short-circuit and overtemperature conditions. Packaged as a low profile surface-mount module, it has a footprint of 0.53 x 1.3 inch (13.5 x 33 mm) and an installed height of only 0.32 inch (8.2mm).


  • 10 A current rating
  • Input voltage range: 10 - 14 VDC
  • Output voltage range: 0.8 - 3.63 V
  • Ultra-high efficiency: 94% @ 12 Vin and 3.3 Vout
  • Designed in reliability: MTBF of >6,920,000 hours per Telcordia SR-322


  • Extremely low internal power dissipation
  • Minimal thermal design concerns
  • Ideal solution where board space is at a premium or tighter card pitch is required
  • Industry standard surface-mount footprint
  • Available RoHS compliant
  • Two year warranty


出力電力 (W): 36
長さ(インチ): 1.3
幅(インチ): 0.53
高さ(インチ): 0.323
マウントタイプ: BMP; SMT
最小出力電流 (A): 10
最大出力電流 (A): 10
出力電圧範囲 (V): 0.8V to 3.63V
すべての仕様 仕様の崩壊


モデル番号 最小電圧 (V) 最大最大電圧 (V) 電流 (A) 公称電圧 (V) 出力数 サンプル 購入
SMT10E-12W3V3J 0.8 3.63 10 0 1 お問い合わせ 購入


タイトル タイプ
Application Note (704 KB) アプリケーションノート
SMT10E Series (12V) Data sheet (320 KB) データシート
Certificate of RoHS Compliance (82 KB) RoHS証明書
SIL_SMT_LDO_70012XX_TUV Certificate (EN 62368-1) (1 MB) 安全証明書
TUV-SUD Certificate (194 KB) 安全証明書
UL Certificate (170 KB) 安全証明書
Longform Datasheet (272 KB) テクニカル・リファレンス
